Avionics picture-in-picture display
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Nov 2, 2017
app pub date -
Apr 27, 2016
filing date -
Apr 27, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

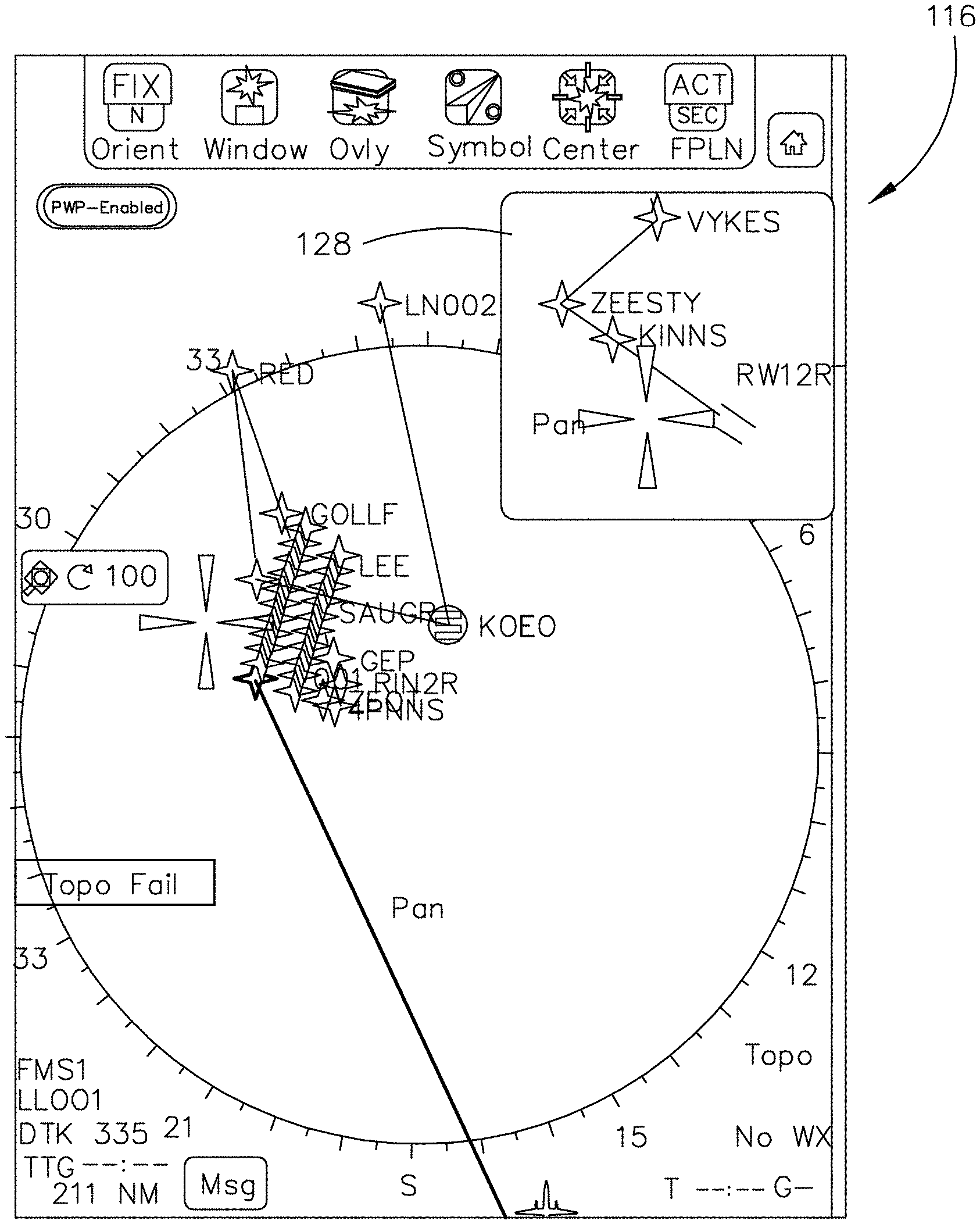

A display interfacing system and an automated graphics system enable presentation of a second picture within a first picture of an avionics display. The first picture provides broad information pertaining to navigating an aircraft vehicle within a specified region. The broad information may include a flight plan map, and the specified region may be navigated using a VOR radial displayed on the flight plan map. The second picture provides clarifying information about an aspect of the first picture. Interaction with the second picture may also provide clarifying information about an aspect of the second picture.
