Trim tab systems for adjusting attitude and performing active stabilization of marine vessels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 14, 2020
Grant Date -
Nov 2, 2017
app pub date -
Jul 18, 2017
filing date -
Aug 25, 2008
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

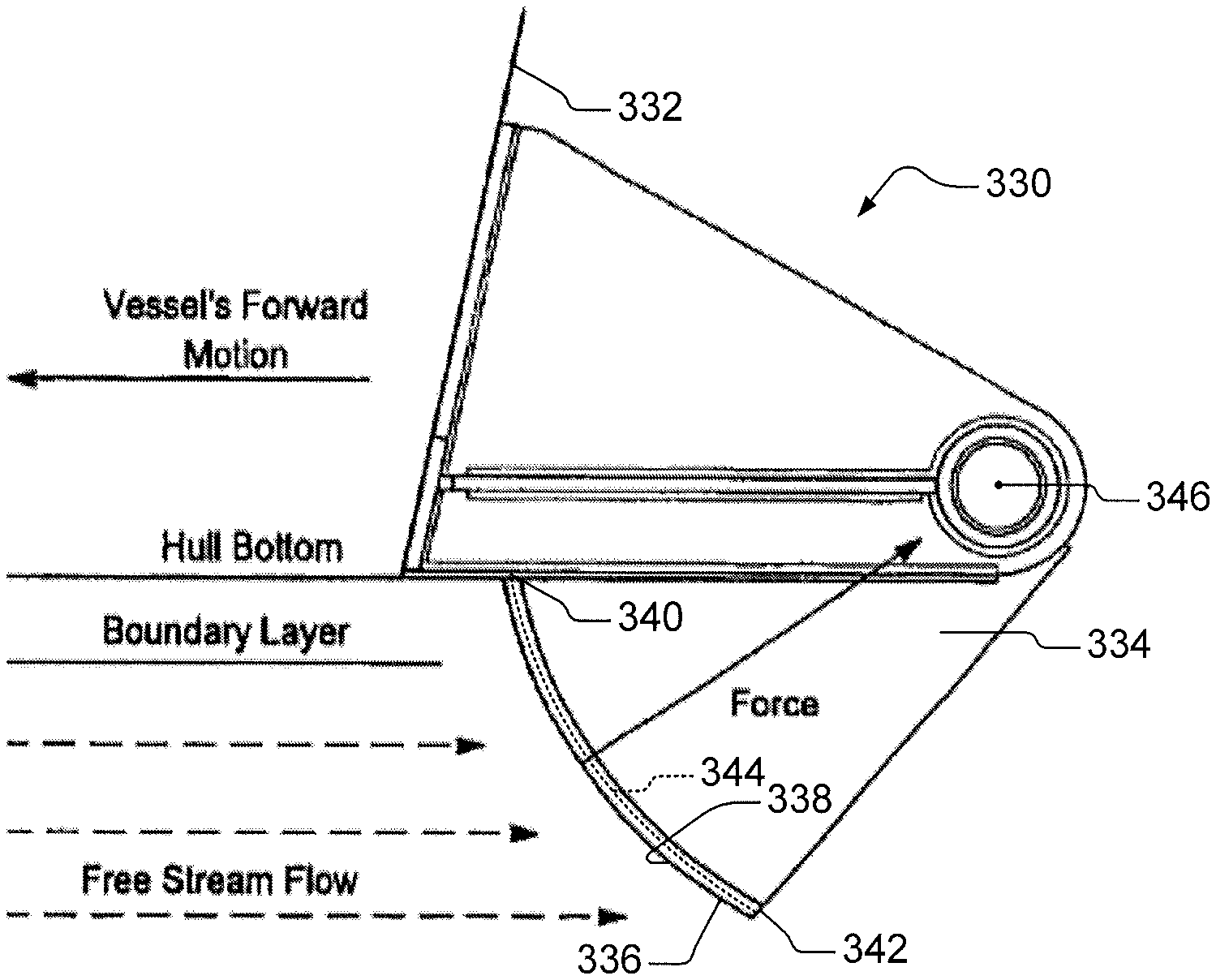

A system is provided and includes a trim tab, a hinge assembly, an actuator, and a controller. The trim tab adjusts at least one of pitch, roll or yaw motion of a marine vessel while the trim tab is in a deployed state. The trim tab includes a member, which has first and second ends and curves outward between and forward of the first end and the second end in a direction away from a point rearward of the member. The hinge assembly attaches a rearmost end of the first trim tab to the marine vessel at a location rearward of the member. The member rotates about a portion of the hinge assembly. The actuator actuates the trim tab. The controller controls the actuator to transition the member of the trim tab between a retracted state and the deployed state to adjust an attitude or motion of the marine vessel.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- B63B Class
- 976 Applications Filed
- 721 Patents Issued To-Date
- 73.88 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B63B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 14, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 14, 2031 |
