AUTOMOBILE HEADLAMP OUTER LENS WITH OVERMOLDED METAL ELECTRODES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 28, 2017
filing date -
Apr 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

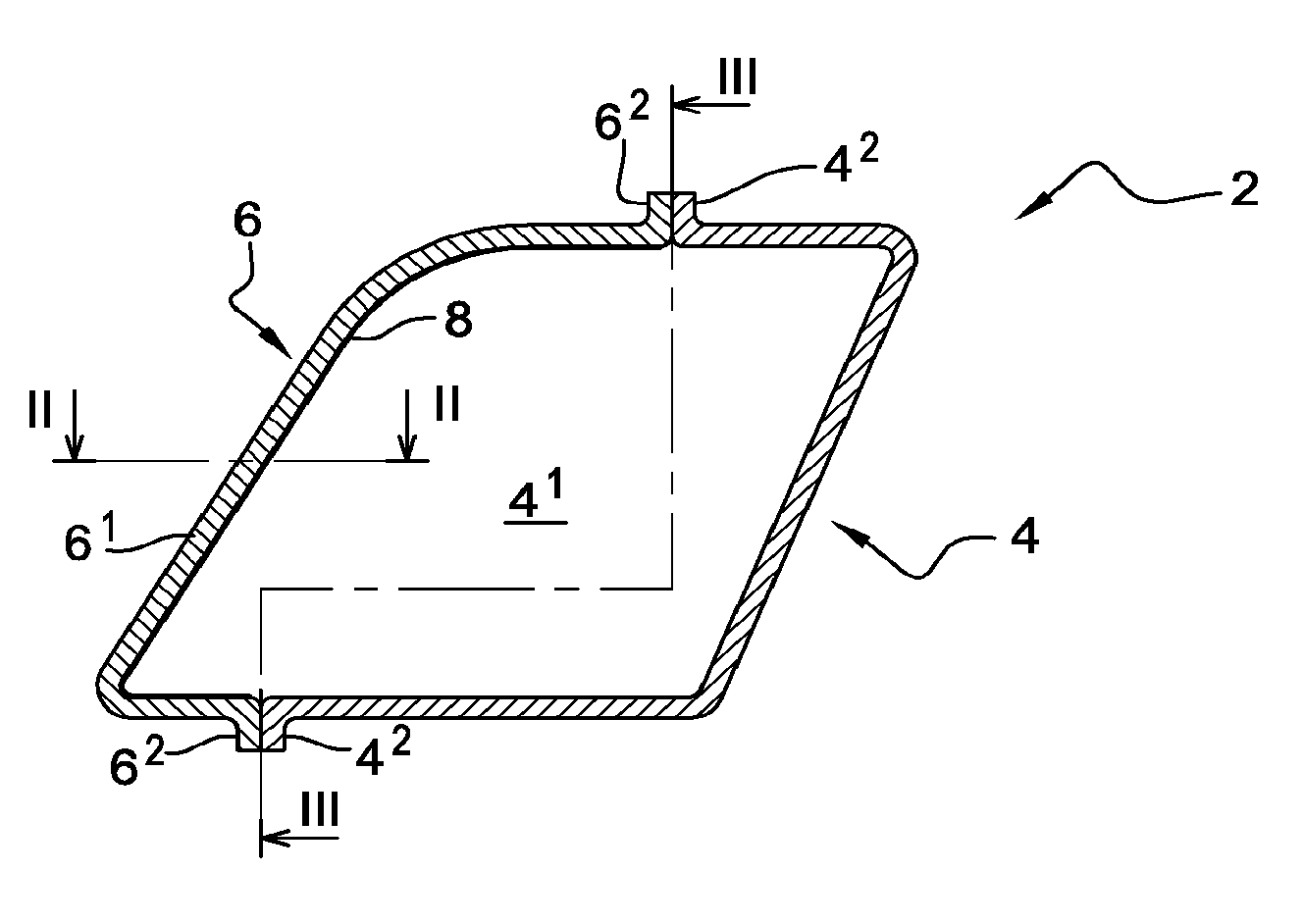

The invention relates to an outer lens for a luminous device, in particular for a motor vehicle. The outer lens include a main portion made of transparent plastic, at least two edges for fastening to a housing of the luminous device, an electrically conductive coating forming a defrosting and/or demisting electrical resistor, and at least two electrodes that are electrically connected to the conductive coating. The electrodes are located on the fastening edges and are overmolded by the transparent plastic. The invention also relates to a luminous device including the outer lens in question and a process for producing the outer lens.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- B60Q Class
- 20.87 % this patent is cited more than
- 8 Age
