Method for stripping a cable
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 26, 2020
Grant Date -
Oct 26, 2017
app pub date -
Apr 21, 2017
filing date -
Apr 21, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

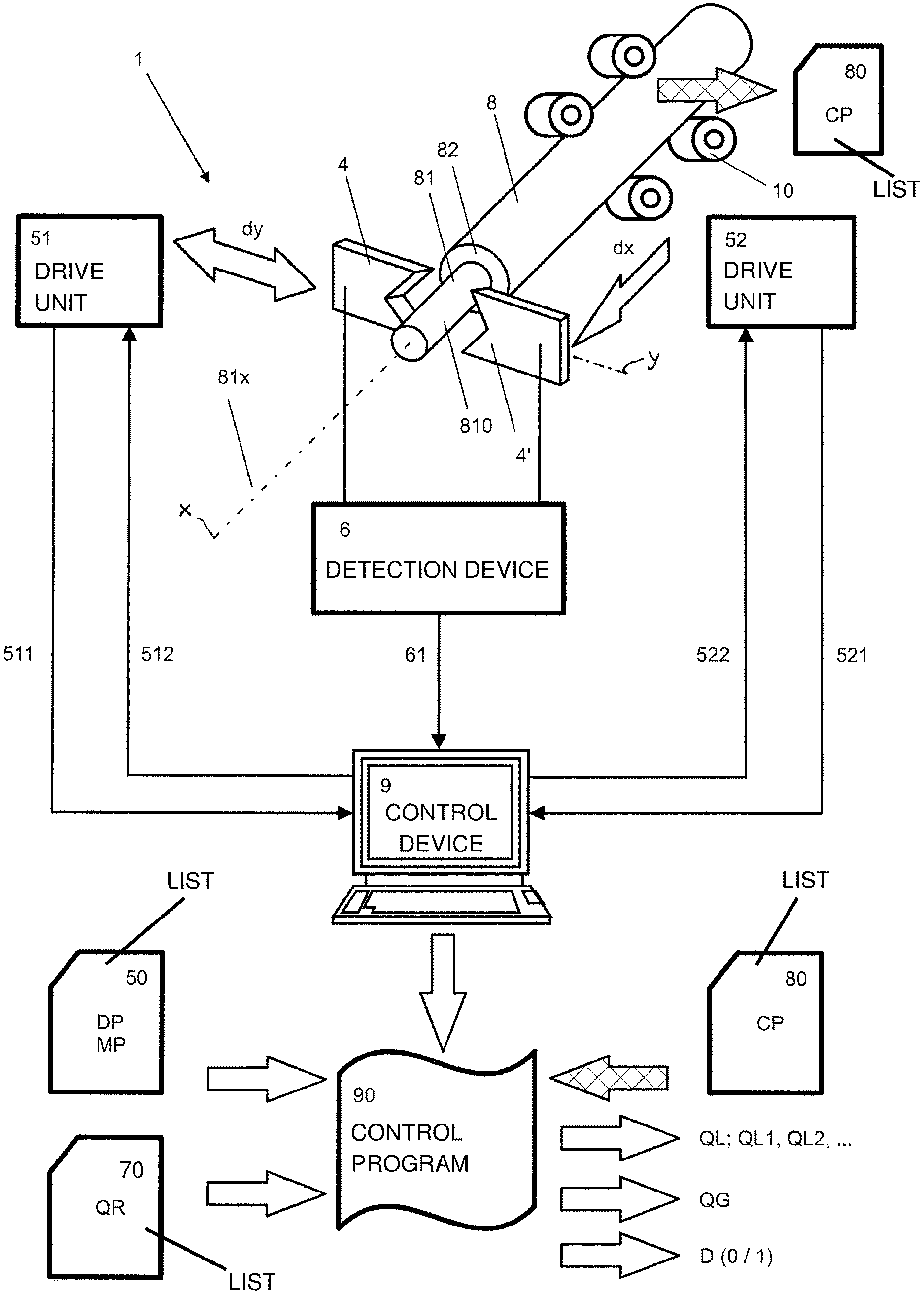

A method for stripping and testing of a cable having at least one conductor enclosed in an insulating sheath uses a stripping device with at least one stripping blade. The method steps include: extending the stripping blade in a transverse direction to sever the insulating sheath; displacing the stripping blade in a longitudinal direction to pull off the severed insulating sheath; detecting a contacting of the conductor; retracting of the stripping blade in the transverse direction when the contacting is detected; recording the movement data of the stripping blade at the time of contacting; determining a further movement course of the stripping blade from the movement data and forming a corresponding local quality value is formed; and comparing the local quality value with a quality specification to establish whether a quality of the conductor meets requirements.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
- 2017 Application Filing Year
- H02G Class
- 1119 Applications Filed
- 850 Patents Issued To-Date
- 75.97 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02G Class
- 37.57 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 26, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 26, 2031 |
