Fluid leakage data management apparatus and management system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 23, 2022
Grant Date -
Oct 26, 2017
app pub date -
Aug 7, 2015
filing date -
Oct 7, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

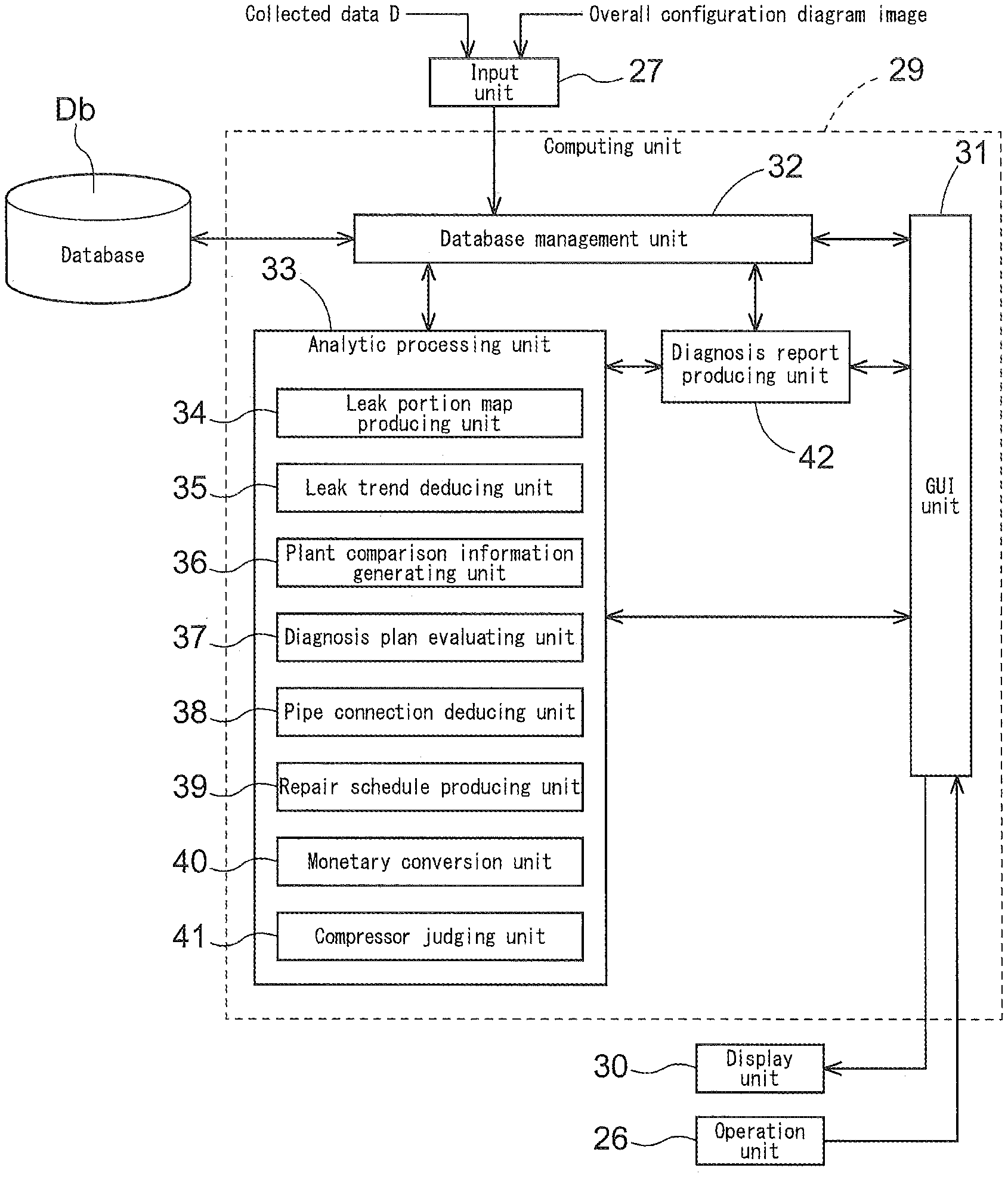

A fluid leakage data management apparatus includes an input unit to which data on fluid leak portions collected through a fluid leak diagnosis of a plant is input; a display unit on which the data input to the input unit is displayed; and a data processing unit that displays, on the display unit, a leak portion display image in which, with respect to positional data indicating positions, in the plant, of the respective fluid leak portions input to the input unit, indicators representing the respective fluid leak portions are displayed superimposed on a configuration diagram image of the plant at locations corresponding to the positional data of the respective fluid leak portions on the configuration diagram image.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G08B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 23, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 23, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 23, 2034 |
