Measuring arrangement
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 2, 2015
filing date -
Sep 25, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

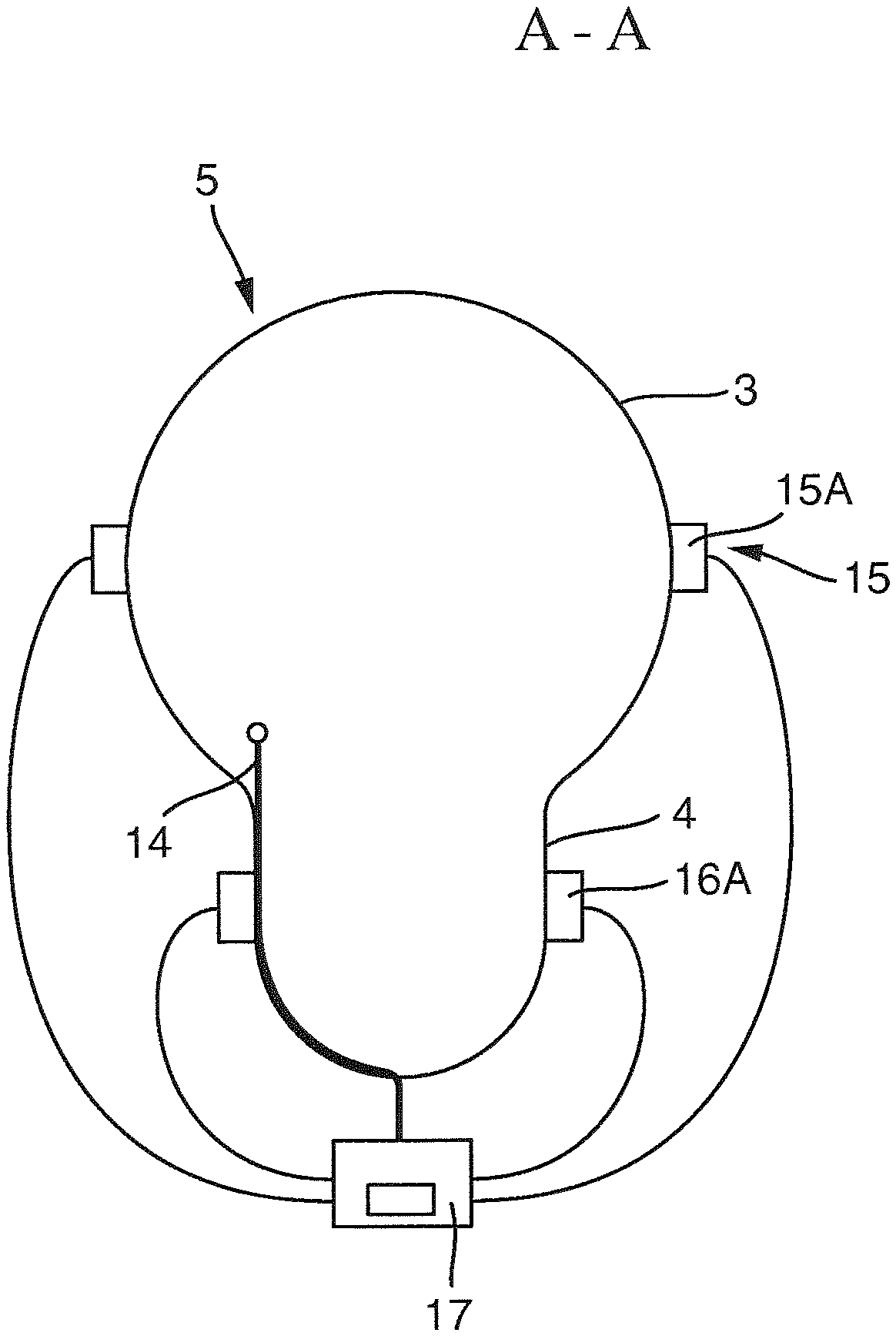

A measuring arrangement for determining flow velocity of at least one liquid phase and/or a gas phase of a vapor or a fluid composed of a liquid and a gaseous phase or a supercritical fluid, comprising a measuring tube, on or in which at least one sensor element of at least a first flow measuring device is arranged for measuring the liquid phase or the gas phase, wherein the measuring tube has at least an inflow region and an outflow region, wherein between these two regions a central region is arranged, whose measuring tube cross section has a greater area than the area of the measuring tube cross section of the outflow region or of the inflow region, and method for ascertaining flow of phases of a vapor or of a fluid composed of a liquid and a gaseous phase, or a supercritical fluid.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G01F Class
- 1076 Applications Filed
- 820 Patents Issued To-Date
- 76.21 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01F Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 5, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 5, 2031 |
