Device for cooling a shaft furnace distribution chute support journals
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 2, 2020
Grant Date -
Oct 26, 2017
app pub date -
Oct 21, 2015
filing date -
Oct 22, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

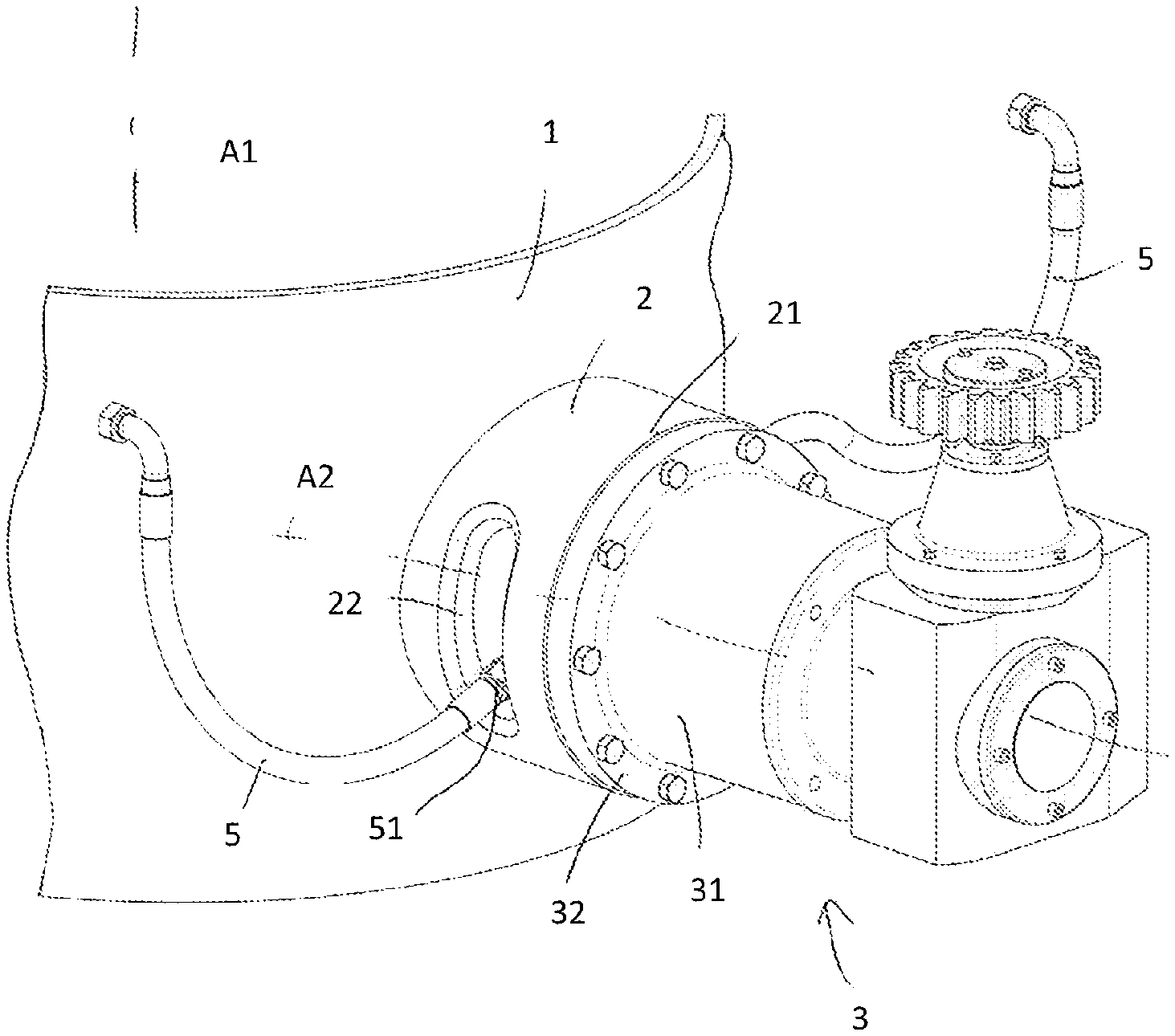

A device for cooling the supporting trunnions of a distribution spout of a charging installation of a shaft furnace, wherein the spout is mounted pivotably about a horizontal axis on a shell coaxial with the furnace and the spout is attached rotatably to the trunnions driven in rotation by a drive component. The trunnions are directly attached for rotation by their ends to output shafts of reduction gears and include internal cooling channels. The cooling device includes feed and return ducts for the cooling water circulating in the internal channels. The feed and return ducts are connected to the trunnions by connectors fixed to the cylindrical surface of the trunnions. The feed and return ducts are arranged to permit rotational displacement of the connectors about the pivot axis of the spout during pivoting of the spout, in particular by passing through oblong slots extending circumferentially in the wall of bearings supporting the driving reduction gears.
