Cooling arrangement for a WHR-system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Sep 29, 2020
Grant Date -
Oct 26, 2017
app pub date -
Nov 4, 2015
filing date -
Dec 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

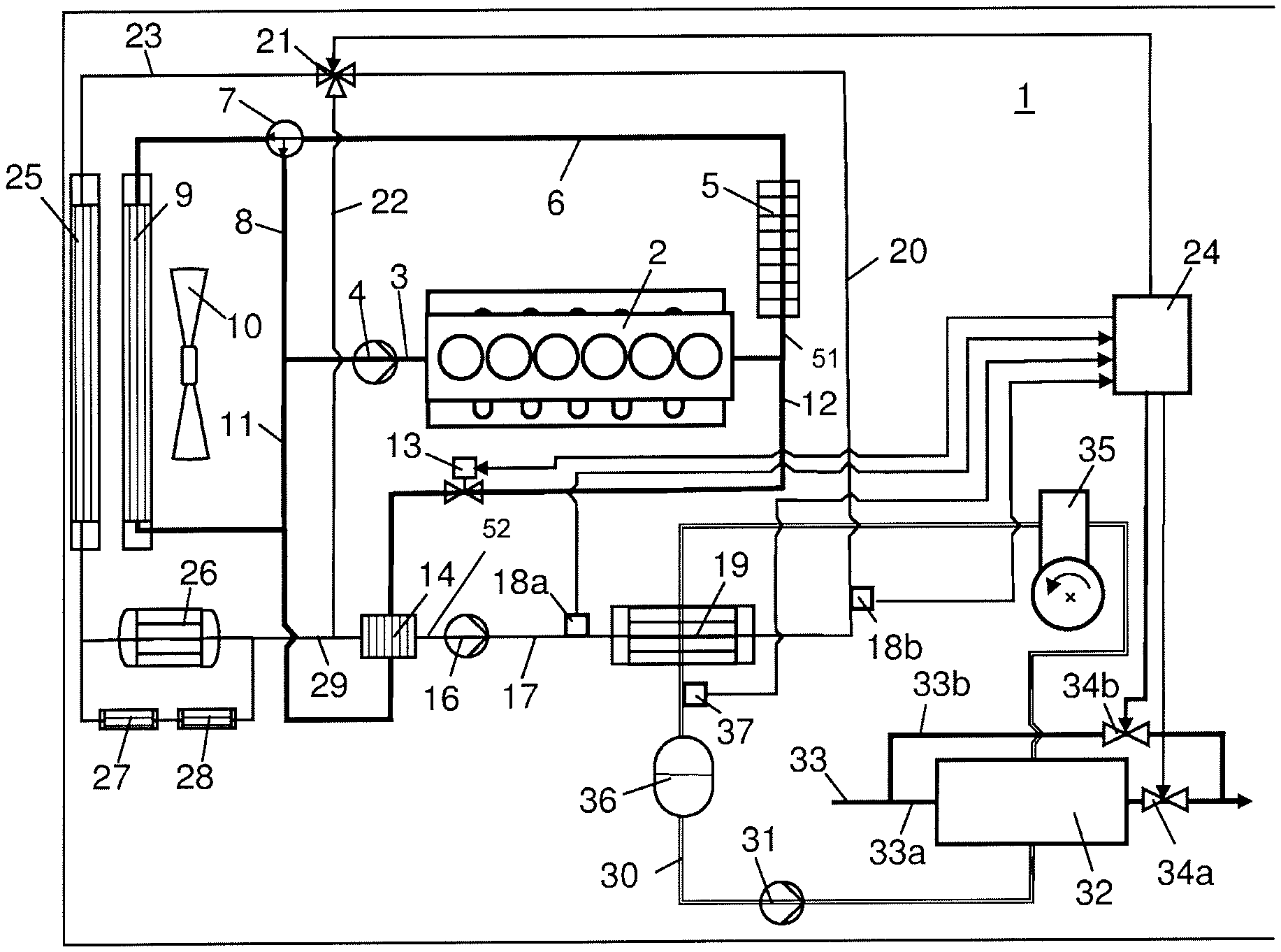

A cooling arrangement for a WHR-system in a vehicle, includes a first cooling circuit including a first radiator in which a circulating coolant is cooled, and a second cooling circuit including a second radiator in which a coolant is cooled to a lower temperature than the coolant in the first radiator. A condenser inlet line directs coolant from one of the cooling circuits to a condenser to provide cooling for a working medium flowing therethrough. A cooling adjusting device adjusts the temperature of the coolant in the inlet line to the condenser by the coolant in the other cooling circuit based on information received about the coolant such that the coolant in the condenser inlet line provides the estimated suitable cooling of the working medium in the condenser.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- F01K Class
- 353 Applications Filed
- 273 Patents Issued To-Date
- 77.34 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- F01K Class
- 60.95 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Mar 29, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Mar 29, 2032 |
