Range of motorized-drive devices for screening blinds
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 19, 2020
Grant Date -
Oct 26, 2017
app pub date -
Oct 16, 2015
filing date -
Oct 20, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

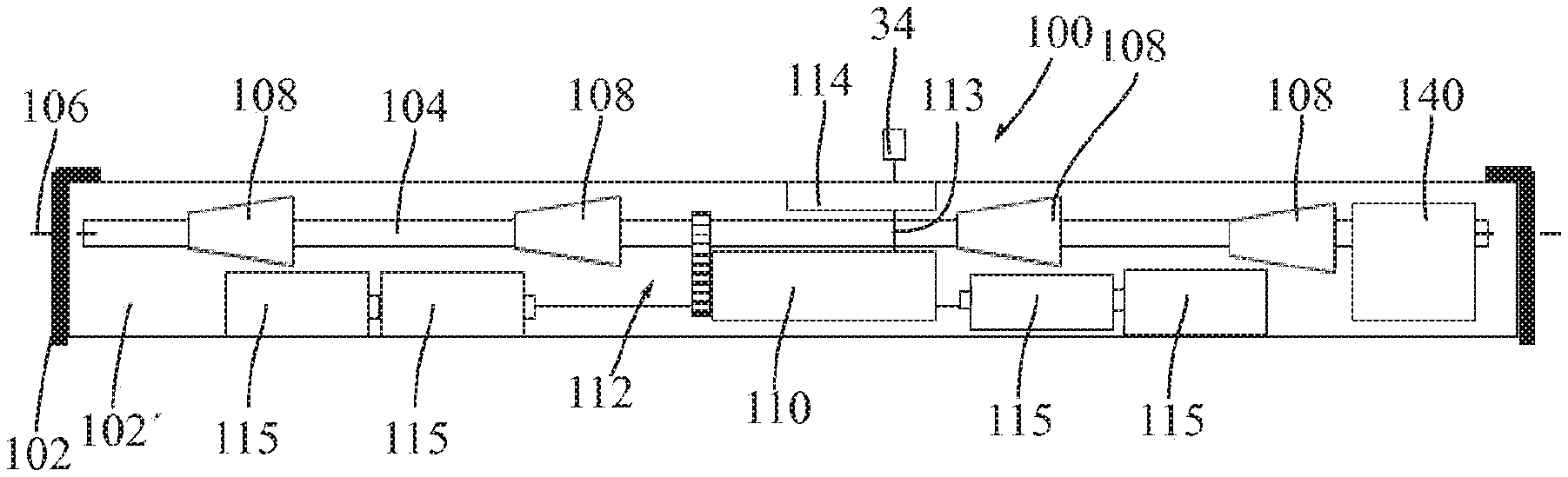

A range of motorized-drive devices (100, 200, 300) for screening blinds comprises: at least one first drive device (100) for driving a first screening blind, comprising a first support (102), a first shaft (104) rotating about a first axis of revolution (106) with respect to the first support (102), at least a winding drum (108) for winding a drive cord of the first screening blind, rotating as one with the first shaft (104), a first geared motor unit (110) for driving the first shaft (104), housed in the first support (102) and kinematically connected to the first shaft (104), preferably via an overdrive (112), and a first electronic control module (114) fixed remote from the first geared motor unit (110), and at least one second drive device (200) for driving a second screening blind, comprising a second support (202), a winding tube (204) for the second screening blind mounted in the second support (202) so as to rotate about a second axis of revolution (206) with respect to the second support (202), a second geared motor unit (210) for driving the winding tube (204), housed inside the winding tube (204), and a second electronic control module (214) fixed remote from the second geared motor unit (210). The first geared motor unit (110) and the second geared motor unit (210) are identical and define a model of geared motor unit (10) that is common to the motorized-drive devices (110, 210) of the range.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E06B Class
- 57.66 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Nov 19, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Nov 19, 2031 |
