Wall-hung toilet with improved load-bearing capacity
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2020
Grant Date -
Oct 26, 2017
app pub date -
Jul 11, 2017
filing date -
Oct 23, 2013
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

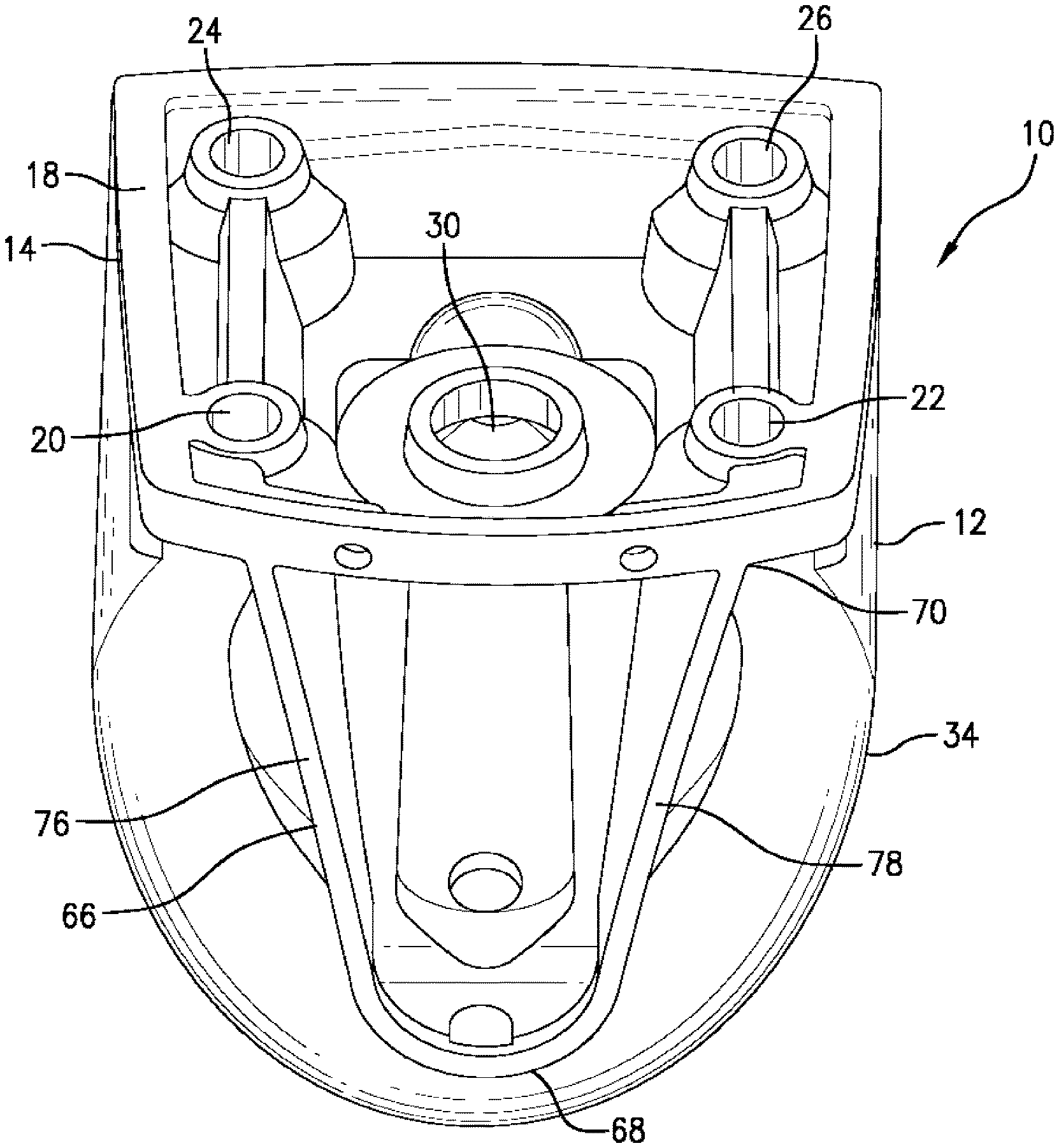

A wall hung toilet is described which has a toilet body having a toilet body inlet, a back plate having at least a first and a second lower fastener opening therethrough, a toilet body outlet, a bowl and a base. The bowl has an interior surface defining a interior area for receiving fluid, an inlet for introducing fluid to the interior area of the bowl and a bowl outlet. A trapway for passing fluid from the bowl outlet to the toilet body outlet is also included. The base of the toilet body extends from a front bowl portion of the base to a rear portion of the base that contacts the back plate, and the base is configured so as to distribute load bearing forces when applied to the bowl in use towards each of a first area around the first fastener opening and a second area around the second fastener area.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- E03D Class
- 283 Applications Filed
- 201 Patents Issued To-Date
- 71.03 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E03D Class
- 69.78 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2031 |
