Heating device for heating cigarette
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 9, 2022
Grant Date -
Oct 26, 2017
app pub date -
Jul 12, 2017
filing date -
Jul 23, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

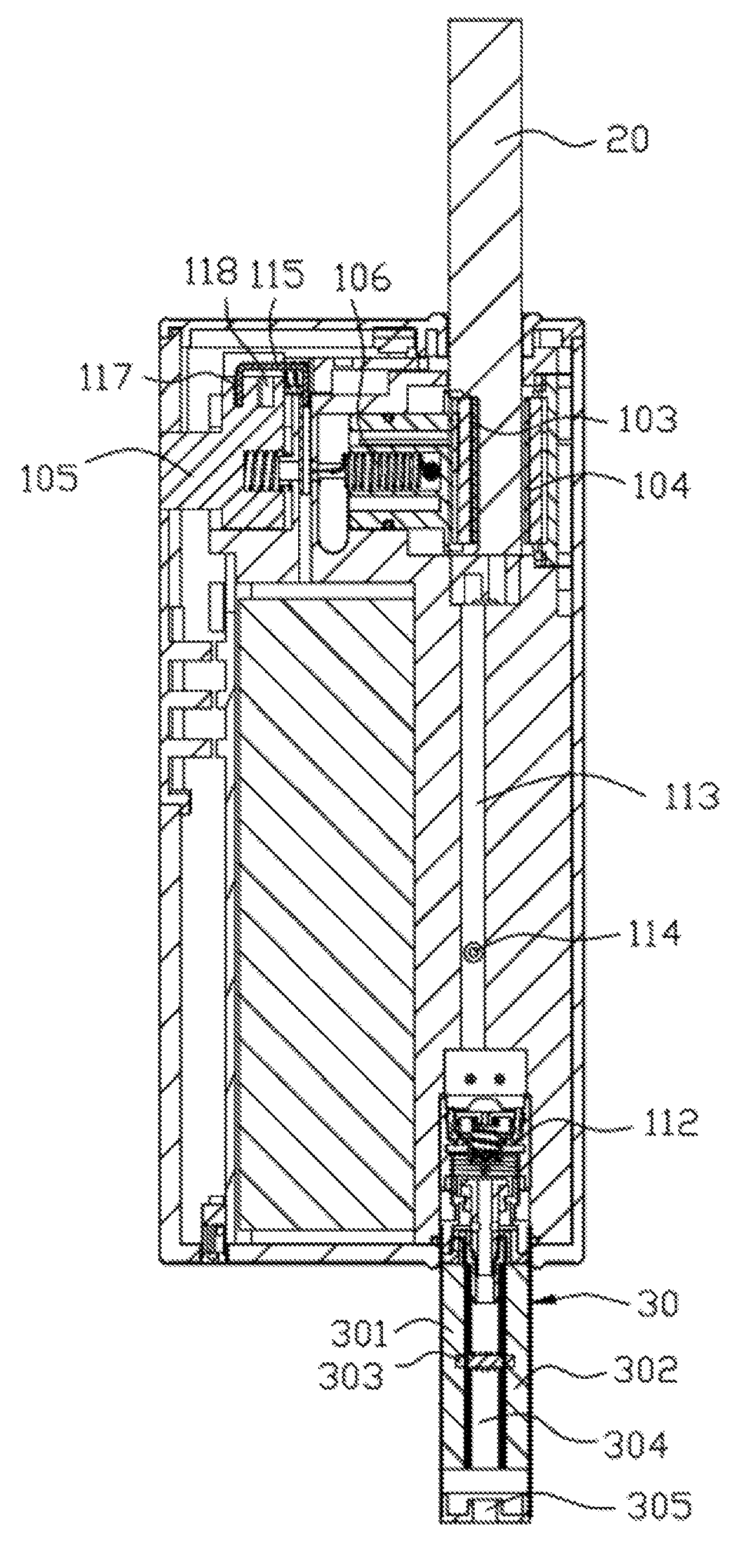

The present disclosure relates to a heating device for heating a cigarette The heating device includes a housing, a heating chamber arranged in the housing, at least one heating element, a control component, and a power supply. The housing defines an opening for insertion of the cigarette. The heating chamber is configured for partly receiving the cigarette. The at least one heating element is configured for heating the cigarette. The heating element is movably arranged in the heating chamber. The control component is configured for driving the at least one heating element to move, so that the at least one heating element abuts against an outer surface of the cigarette. The power supply is configured for supplying the at least one heating element power.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- H05B Class
- 0 % this patent is cited more than
- 3 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 3.5 Year Payment | $1600.00 | $800.00 | $400.00 | Feb 9, 2026 |
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 9, 2030 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 9, 2034 |
