ION MOBILITY SPECTROMETER
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 18, 2016
filing date -
Apr 18, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

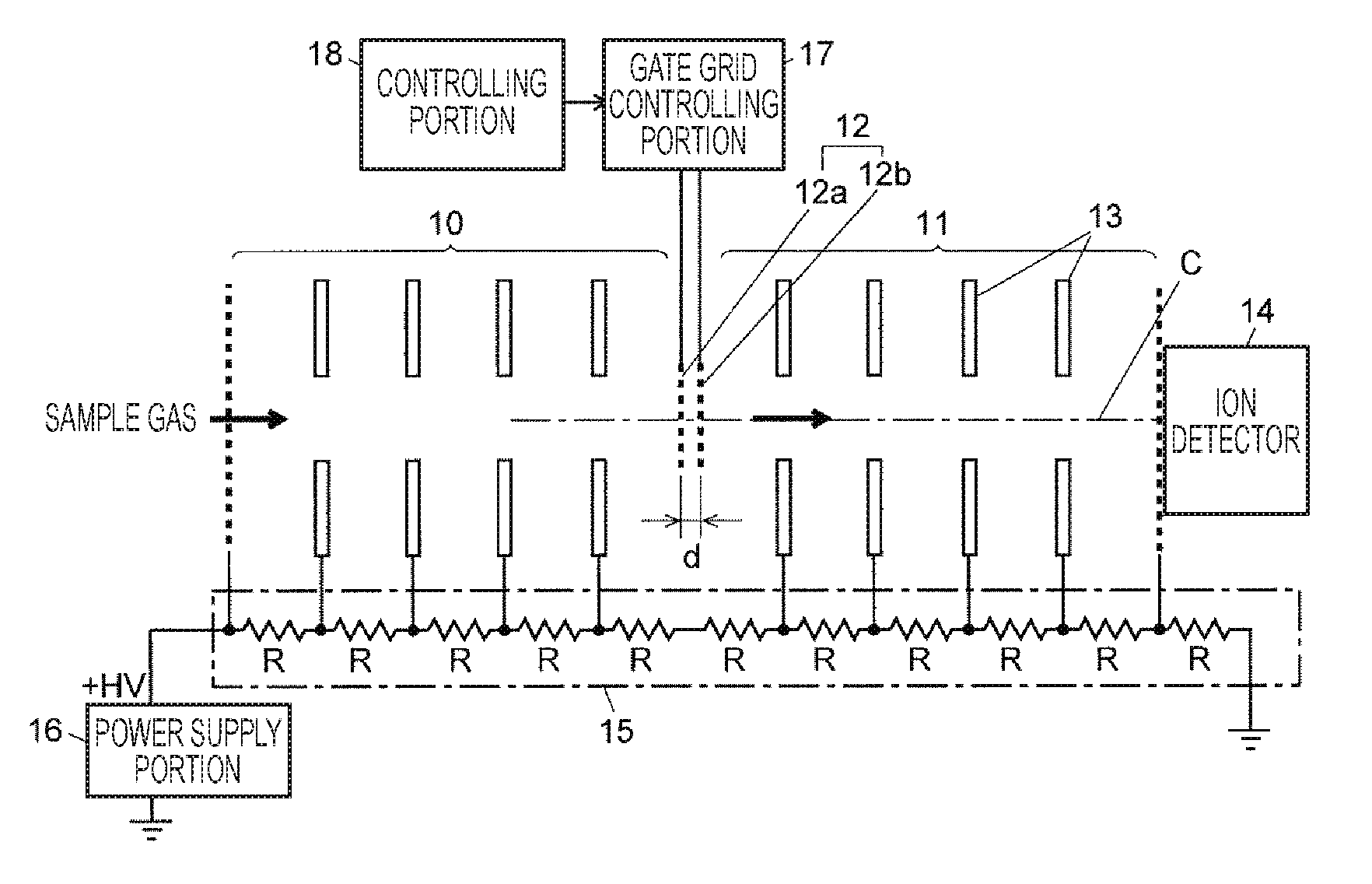

An offset voltage adjusting portion is provided in an amplifying portion for applying respective pulse voltages to a pair of grid electrodes that structures a shutter gate grid. Because the pulse voltage is shifted in the direction of the voltage axis, with the amplitude and pulse width thereof maintained, when the offset voltage is adjusted, this enables a potential difference to be applied to the voltages that are applied to the front grid electrode and the rear grid electrode when the shutter gate grid is open. This potential difference produces an electric field for accelerating ions in the space between the pair of grid electrodes, thus accelerating the movement of ions immediately following the switching of the shutter gate grid from the closed state to the open state, enabling the pulse width of the ions to be narrowed.
First Claim
Other Claims data not available
