Riser release flaring system for parafoils
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Apr 12, 2017
filing date -
Apr 13, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|
Abstract

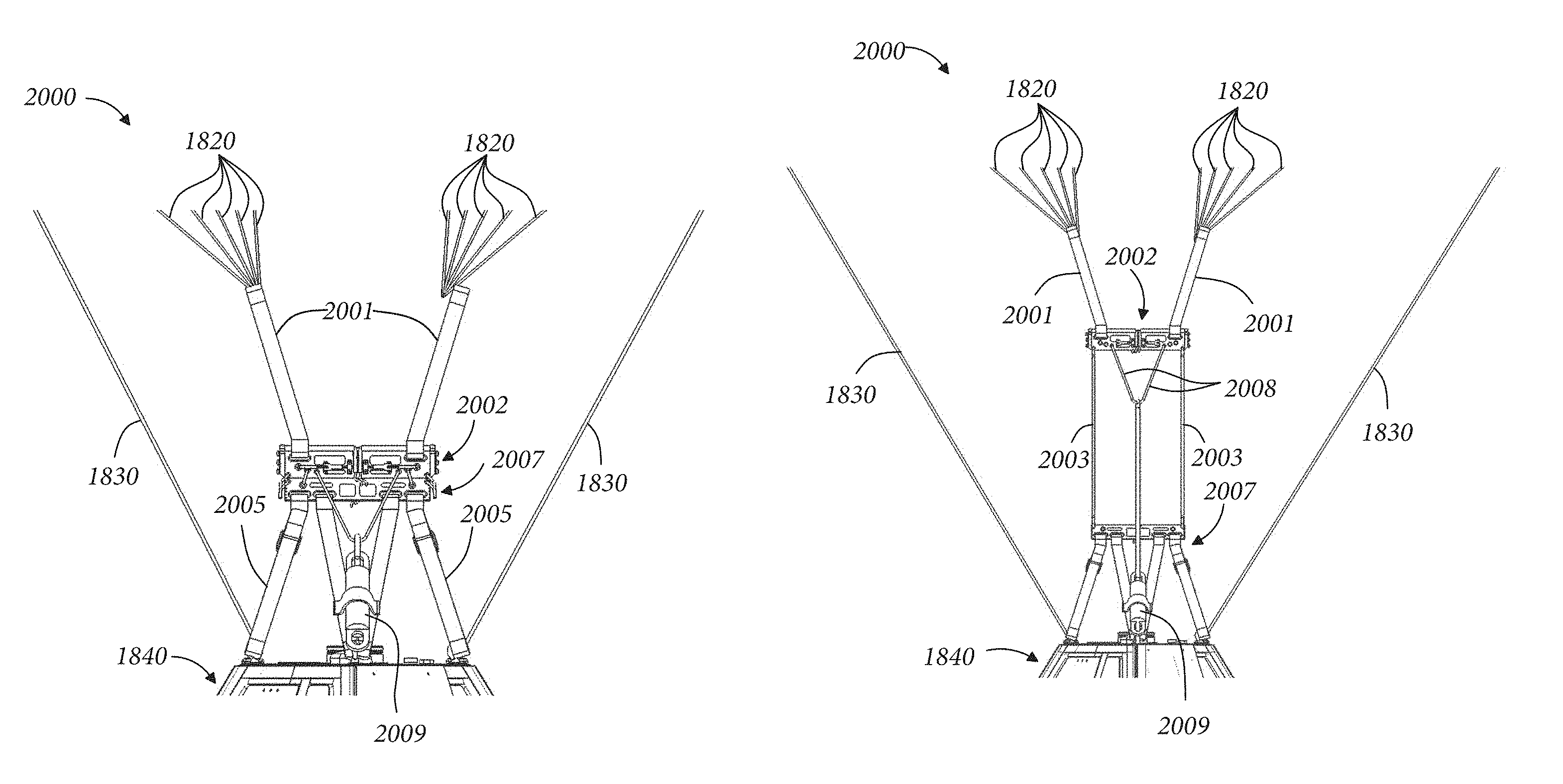

A riser release system controllably lands a descending flight vehicle having a parafoil or canopy. The system has control lines and riser lines attached to the parafoil or canopy. The other end of the riser lines are attached to an upper portion of a release structure; a lower portion of the release structure is connected to the payload; and a coupling mechanisms releasably couples the upper and lower portions. When the upper and lower portions are decoupled, a distance control device controls and limits the distance of separation between the two portions, and a rate control device controls the rate of separation. Separation causes the riser lines to increase the distance between the payload and canopy, further causing the canopy to flare and decrease the rate of descent of the flight vehicle.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| WO | A1 | WO2017180780 | Apr 12, 2017 |
International Classification(s)
- 2017 Application Filing Year
- B64D Class
- 2578 Applications Filed
- 1850 Patents Issued To-Date
- 71.77 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 15 Citation Count
- B64D Class
- 93.50 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
