Low-field time-domain NMR measurement of oil sands process streams
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Apr 28, 2020
Grant Date -
Oct 12, 2017
app pub date -
Apr 3, 2017
filing date -
Apr 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

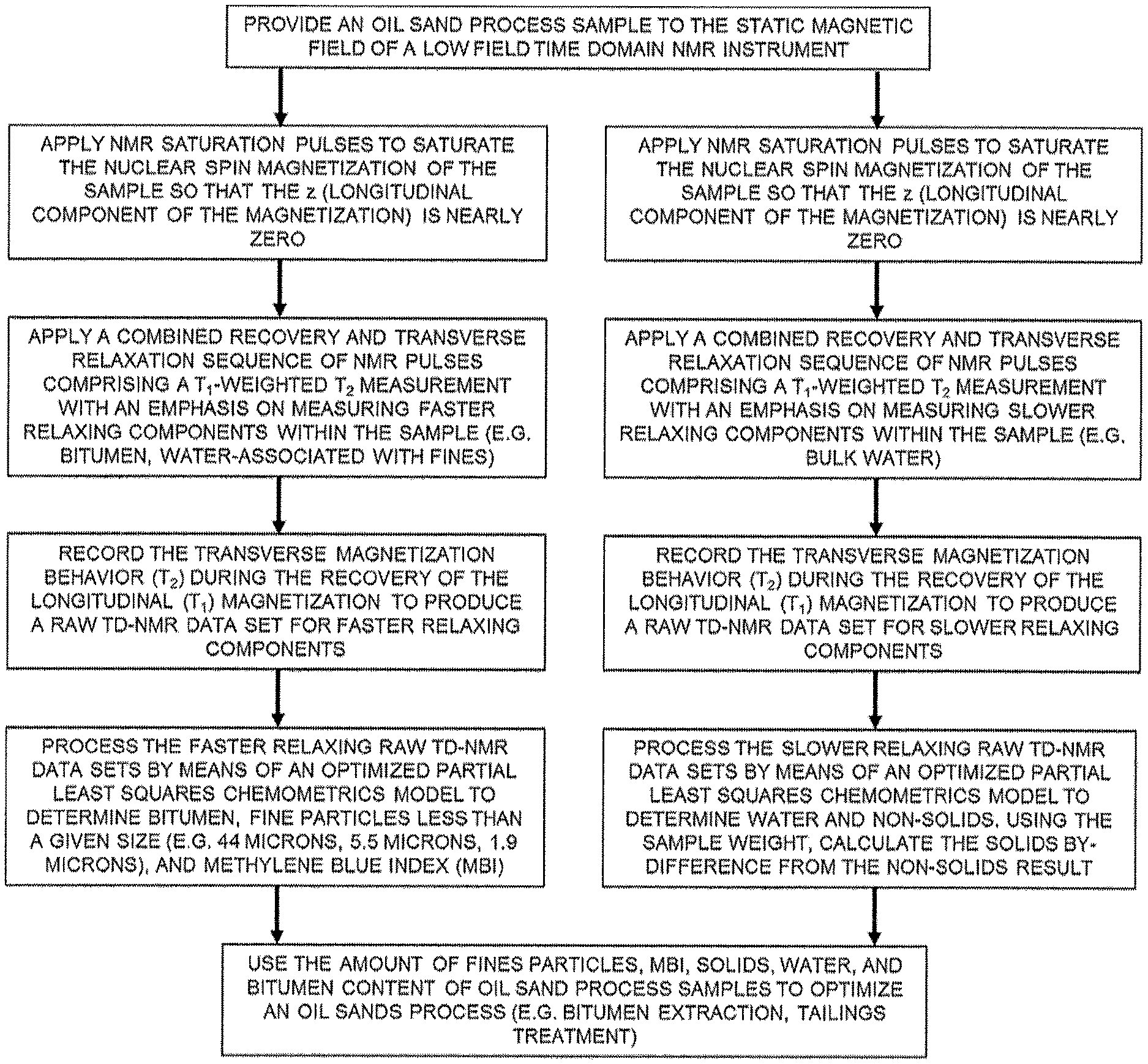

A method for determining the solids content, fines content and/or particle size distribution of the solids in an oil sands process stream test sample comprising bitumen, solids and water using low-field time-domain NMR is provided which involves building a non-solids partial least squares calibration model using oil sands process streams calibration samples having a known bitumen content, solids content, water content, fines content and/or particle size distribution by subjecting the calibration samples to a first T1-weighted T2 measurement NMR pulse sequence that maximizes very fast relaxing signals and a second T1-weighted T2 measurement NMR pulse sequence that maximizes slow relaxing signals. The measurement of other sample properties strongly correlated with surface area, such as methylene blue index, can also be measured using a partial least squares calibration model.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| CA | C | CA2963129 | Apr 03, 2017 |
International Classification(s)
- 2017 Application Filing Year
- G01N Class
- 13595 Applications Filed
- 8906 Patents Issued To-Date
- 65.51 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G01N Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 28, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 28, 2031 |
