Combustor assembly for low-emissions and alternate liquid fuels
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 9, 2020
Grant Date -
Oct 12, 2017
app pub date -
Apr 11, 2017
filing date -
Apr 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

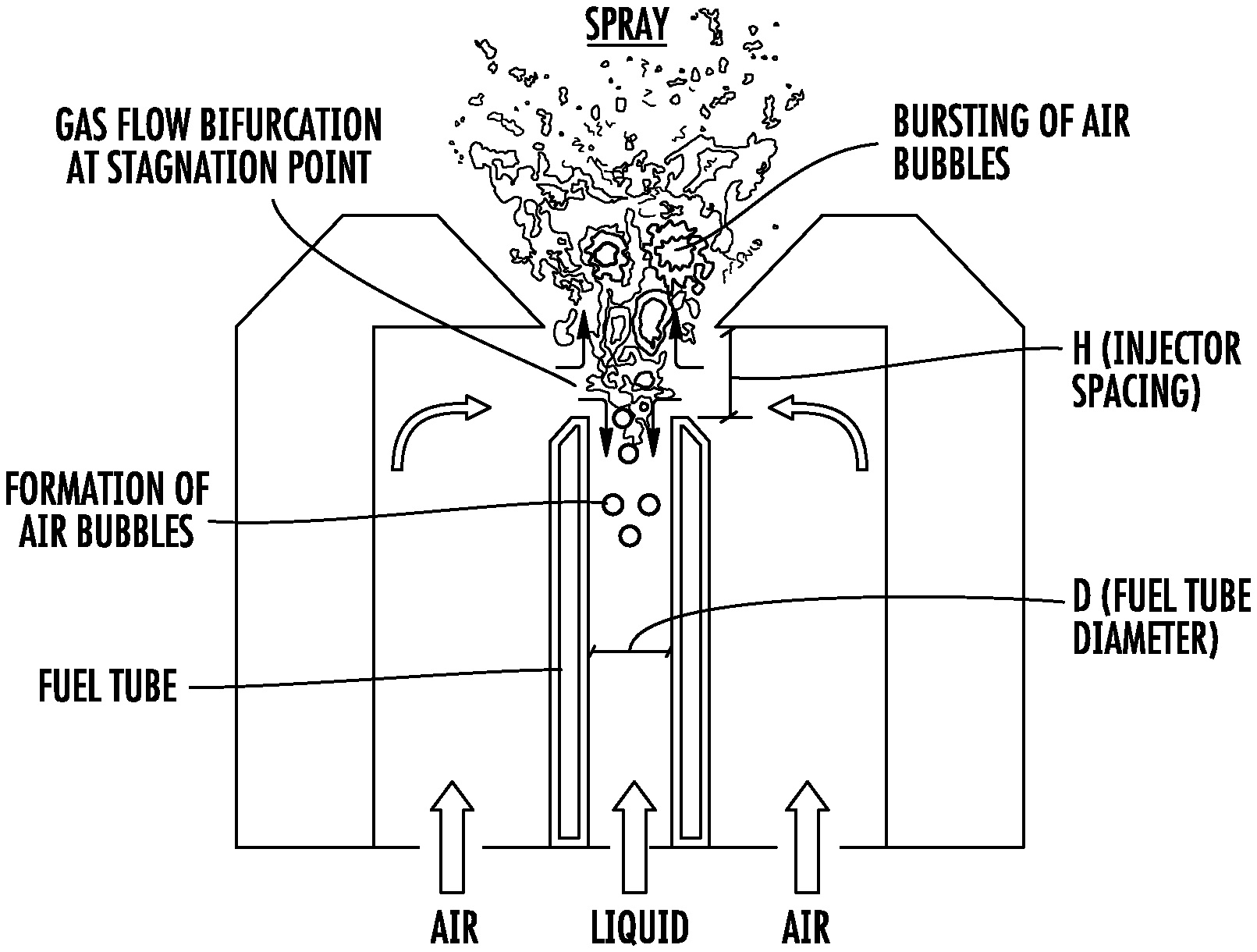

Implementations of a combustor assembly yield low emissions, require low power, are suitable for alternate liquid fuels, including highly viscous fuels, and are scalable for various heat release rates. The combustor assembly includes a fuel injector and a swirler. The fuel injector may include a choke portion and a spacer. The choke portion is disposed just upstream of an outlet of a liquid fuel conduit and prevents atomizing gas from interrupting continuous flow of the liquid fuel through the liquid fuel conduit. The spacer is disposed downstream of the outlet to precisely control the gap and thus, bifurcation of atomizing gas flow, between the outlet of liquid fuel conduit and an inlet of an orifice plate. The swirler is disposed radially outwardly and adjacent the fuel injector and includes a plurality of angled vanes.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F23C Class
- 120 Applications Filed
- 79 Patents Issued To-Date
- 65.84 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F23C Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 9, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 9, 2031 |
