METHOD OF FORMING SIGE CHANNEL FORMATION REGION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Apr 1, 2016
filing date -
Apr 1, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

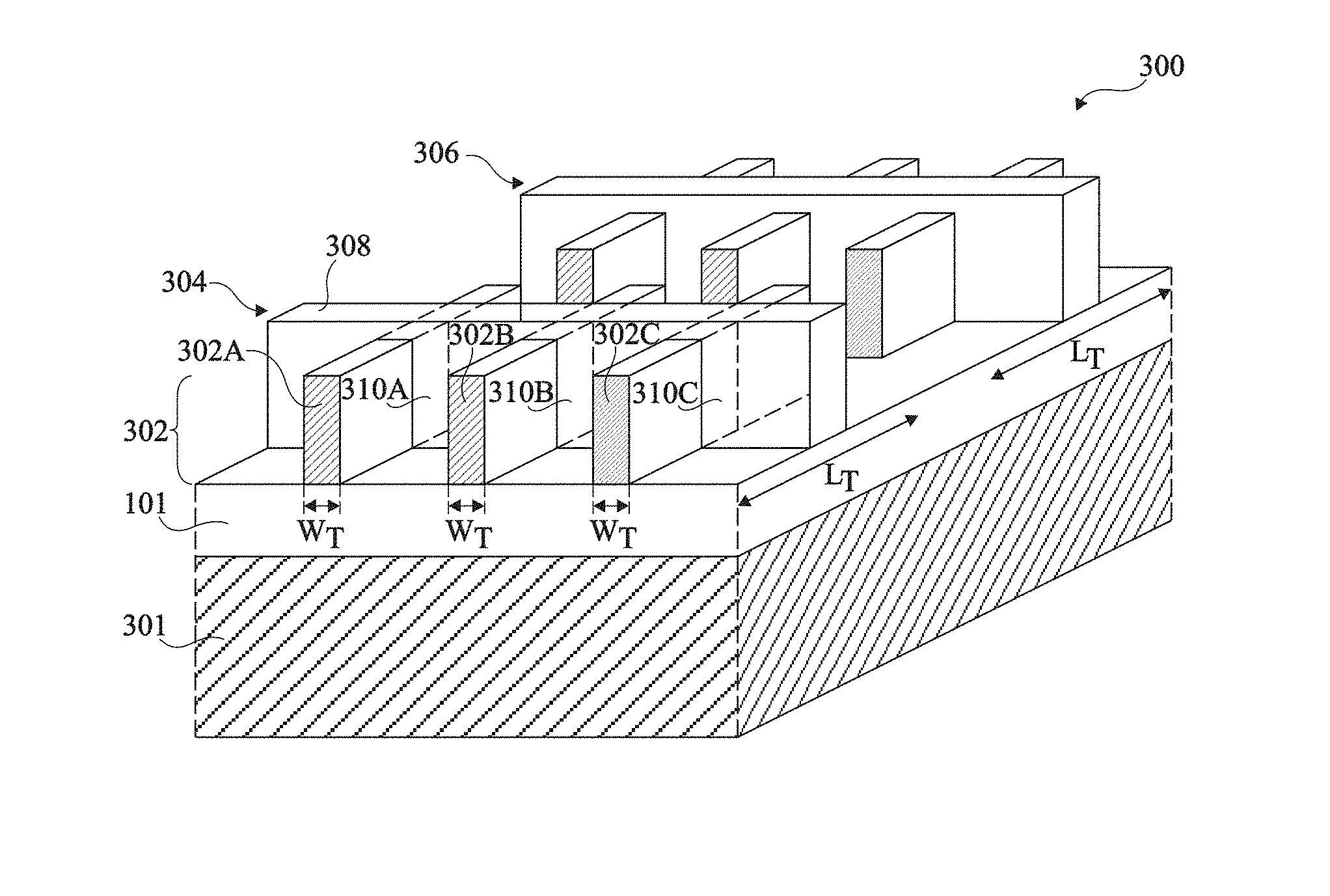

A method comprising: forming an SiGe layer on sidewalls of one or more fins of a semiconductor device by a non-selective deposition of amorphous SiGe, the fins being formed of Si or SiGe; depositing a silicon oxide layer over the SiGe layer; and forming an SiGe channel formation region within each fin by performing Ge enrichment to diffuse Ge atoms from the SiGe layer into the one or more fins.
