Electroconductive Resin Composite and Electroconductive Resin Composition Having Excellent Impact Strength, and Method of Producing the Same
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 28, 2017
filing date -
Mar 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Loading Importance Indicators...
Abstract

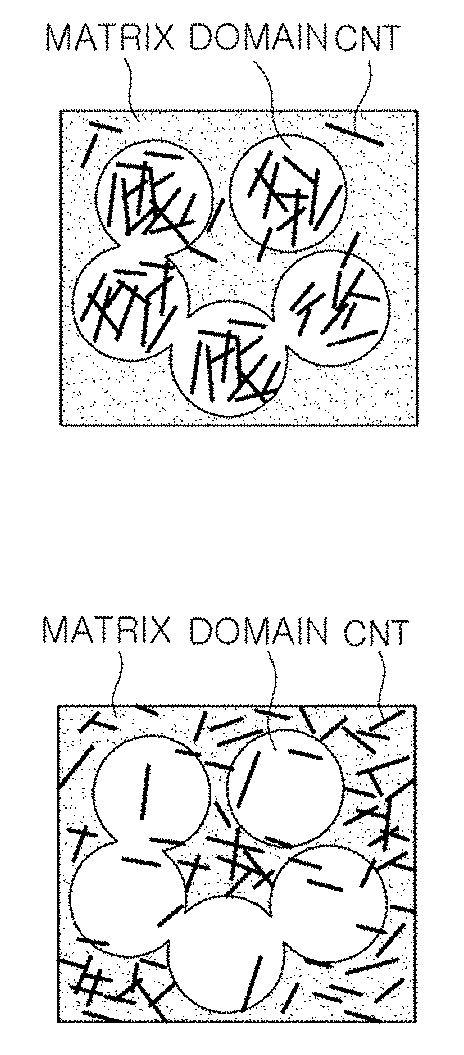

An electroconductive resin composite having excellent impact strength, in which an impact modifier and an electroconductive filler are dispersed in a matrix resin, is provided. The impact modifier has an average particle size of 5 μm or less and is dispersed in a domain form in a polyamide matrix resin, and the number of agglomerates of the filler in which a longest diameter of an agglomerate particle is 10 μm or more is 50 or less, in 50 scanning electron microscope (SEM) images of an area of 0.5 mm×0.35 mm, captured at 250× magnification.
First Claim
Other Claims data not available
