Image forming device having a supply item that includes a retainer assembly having positioning features for processing circuitry

Number of patents in Portfolio can not be more than 2000

United States of America Patent

PATENT NO 9921540
SERIAL NO

15627752

Stats

ATTORNEY / AGENT: (SPONSORED)

Importance

Loading Importance Indicators... loading....

Abstract

See full text

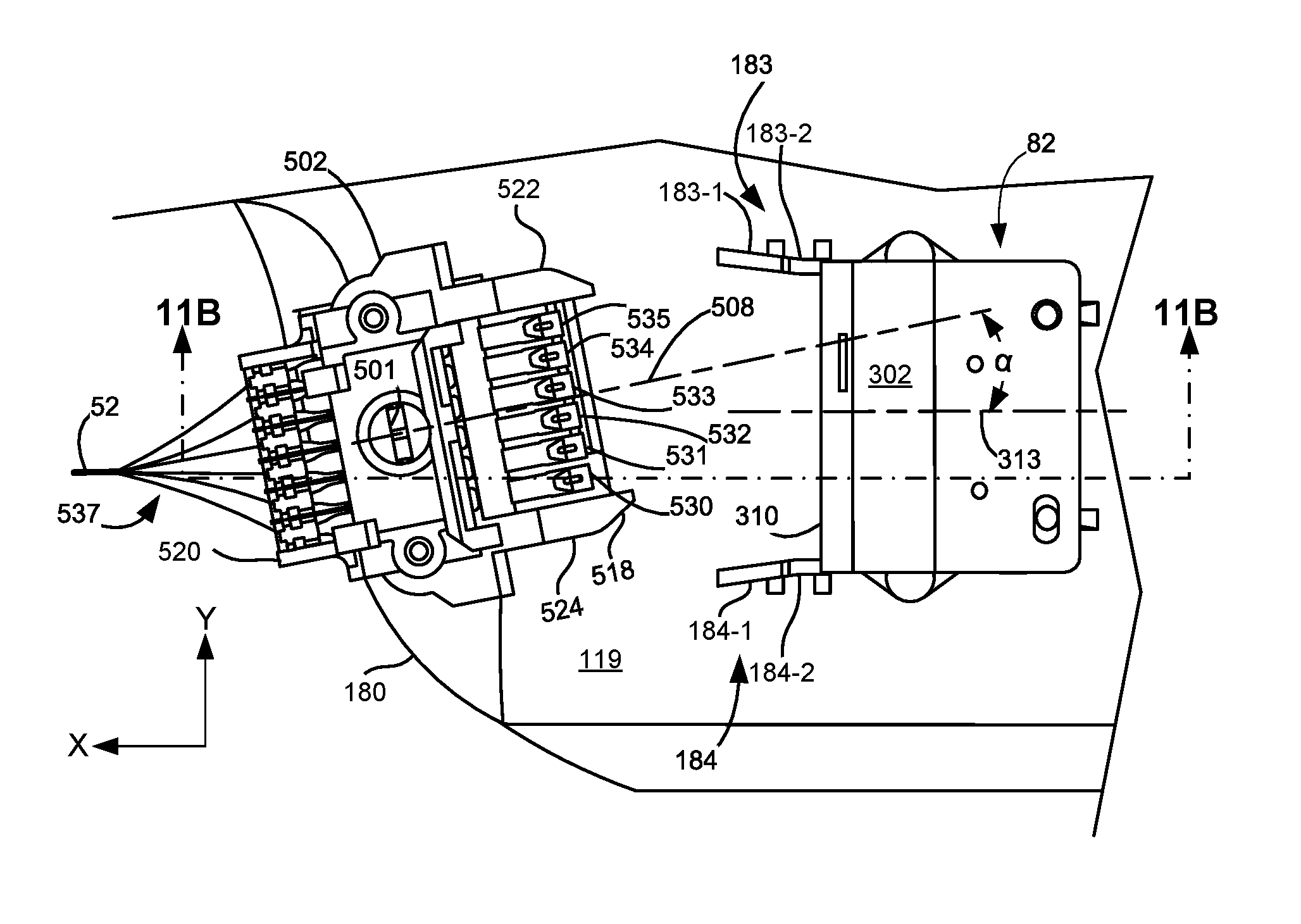

An electrophotographic image forming device includes a replaceable unit that has a housing having an internal reservoir for storing toner. A circuit board retainer is positioned on an exterior surface of the housing. The retainer includes a top having an undersurface having first and second supports extending away from the undersurface of the top toward a bottom of the retainer. A mounting platform is positioned on the undersurface of the top intermediate the first and second supports and spaced apart from the bottom of the retainer. A circuit board is mounted on the mounting platform. The top and the first and second supports form an opening at the front of the retainer sized to receive an electrical connector of the image forming device for mating with the circuit board when the replaceable unit is installed in the image forming device.

First Claim

See full text

Other Claims data not available

Family

Loading Family data... loading....

Patent Owner(s)

Patent OwnerAddress
LEXMARK INTERNATIONAL INC740 WEST NEW CIRCLE ROAD LEXINGTON KY 40550

International Classification(s)

loading....
  • 2017 Application Filing Year
  • G03G Class
  • 2629 Applications Filed
  • 2246 Patents Issued To-Date
  • 85.44 % Issued To-Date
