Compact distributed subsea distribution of hydraulic power and chemical injection
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 17, 2018
Grant Date -
Oct 5, 2017
app pub date -
Mar 30, 2017
filing date -
Mar 30, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

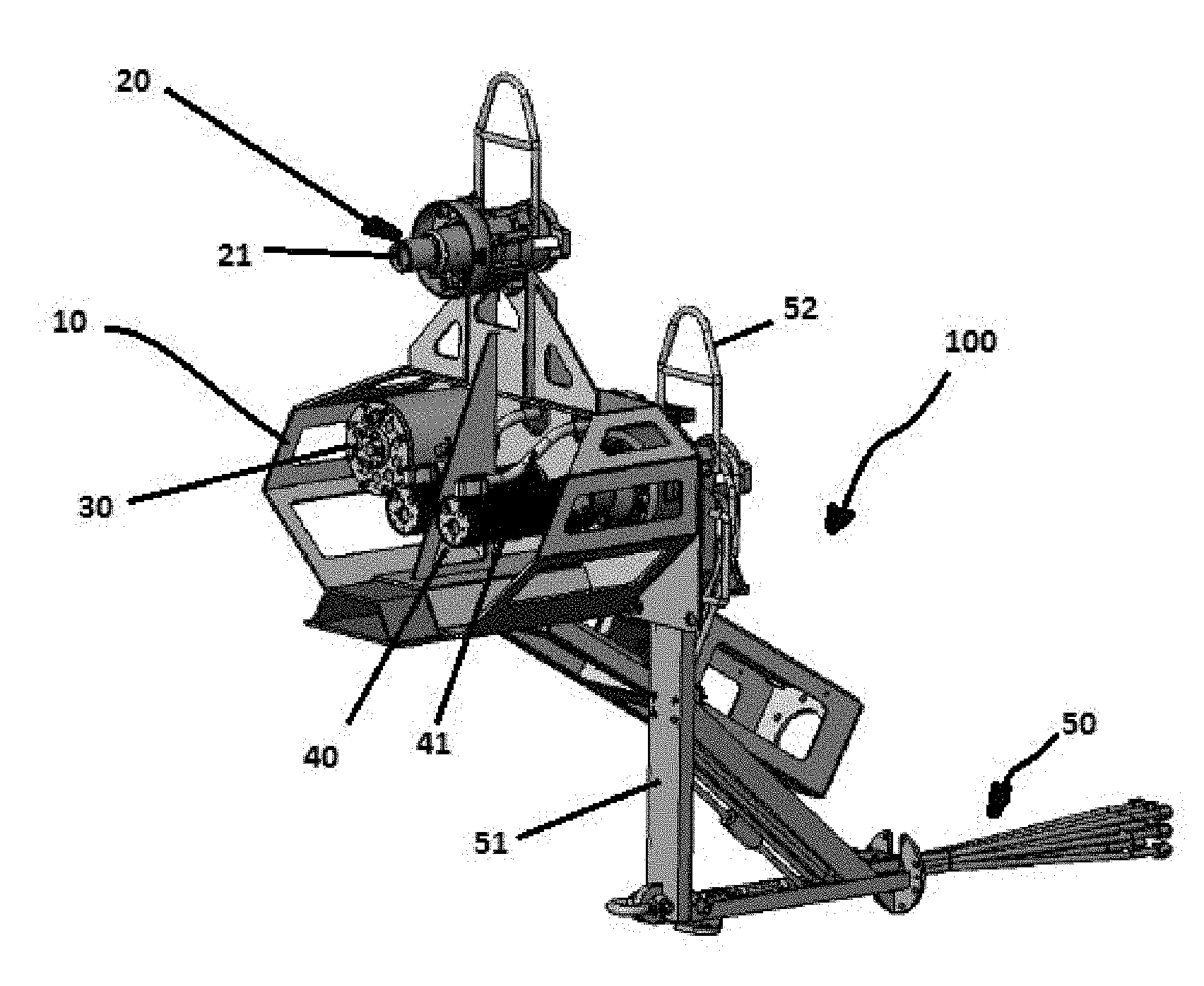

A subsea fluid distributor comprises a support framework removably mountable and hydraulically connectable to a subsea structure intermediate the subsea structure and an incoming flying lead's terminator; a plate attached to an upper section of the support framework; a fixed bucket and a valve attached to the support framework; a lower framework attached to a lower portion of the support framework; a first hydraulic tube, in fluid communication with the valve, attached to the lower framework; a flying lead junction plate support framework attached to the lower portion of the support framework; a second hydraulic tube, in fluid communication with various subsea equipment, disposed at least partially within the flying lead junction plate support framework; a first remotely operated vehicle (ROV) torque bucket attached to an upper portion of the flying lead junction plate support framework; and a second ROV torque bucket attached to the upper section of the support framework.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- G05D Class
- 5157 Applications Filed
- 3645 Patents Issued To-Date
- 70.69 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- G05D Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 17, 2026 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 17, 2030 |
