CLUTCH, STEERING DEVICE, AND METHOD FOR DISASSEMBLING CLUTCH
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 21, 2017
filing date -
Mar 29, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

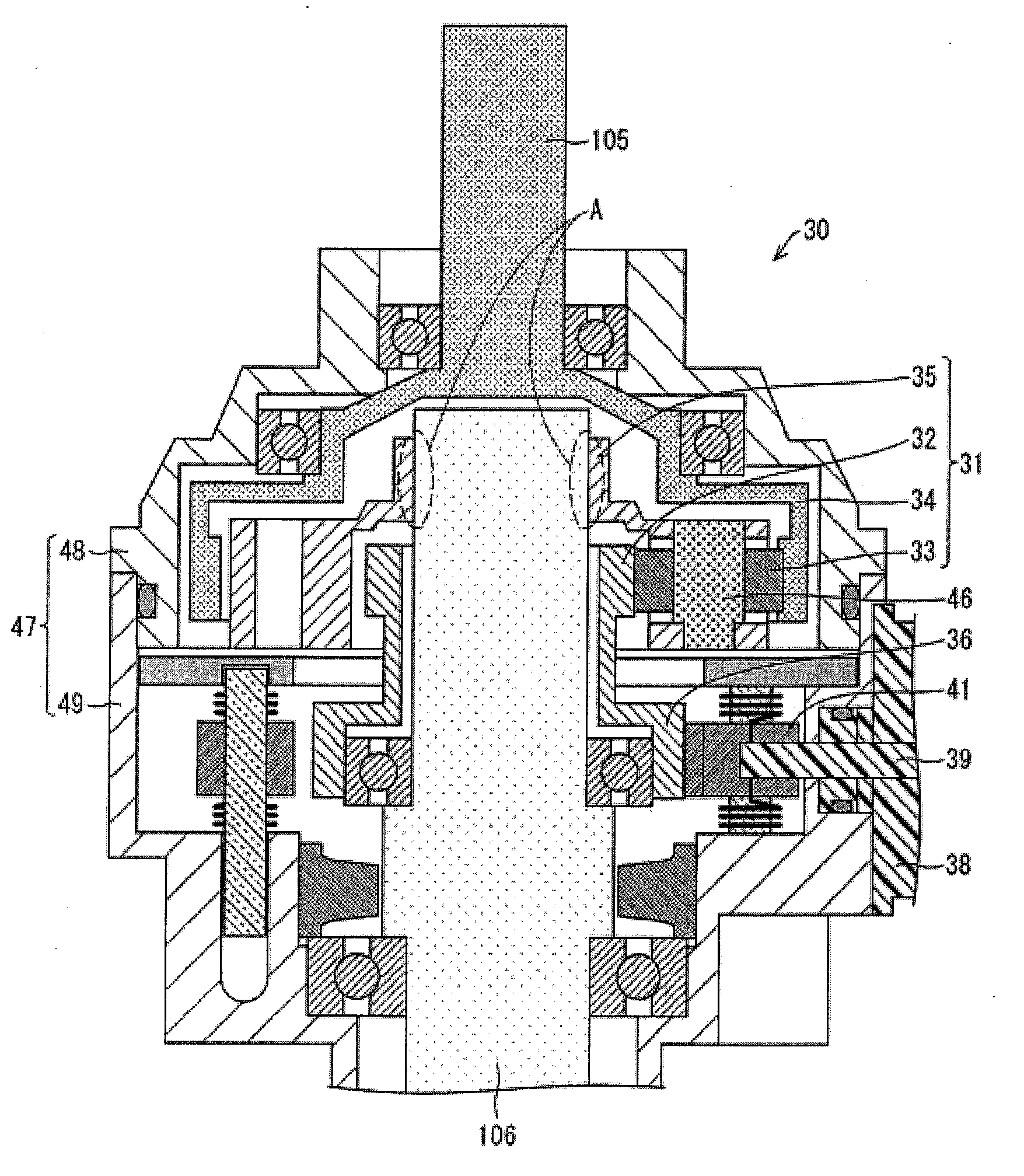

A clutch is configured to mechanically establish and disestablish a torque transmission path between an input shaft through which a torque is input and an output shaft through which the torque is output. The clutch includes a sun gear, an internal gear, planetary gears, and a carrier. The sun gear is configured to switch between a fixed state and a non-fixed state. The internal gear is coupled to the input shaft in a torque transmittable manner. The planetary gears are configured to mesh with the sun gear and the internal gear. The carrier is coupled to the output shaft in a torque transmittable manner and configured to support the planetary gears rotatably. The carrier includes a coupling portion to be coupled to a detachment member configured to detach the carrier from the clutch.
First Claim
Other Claims data not available
