Method for producing a primary material for a cutting tool
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 14, 2020
Grant Date -
Oct 5, 2017
app pub date -
Sep 3, 2015
filing date -
Sep 5, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

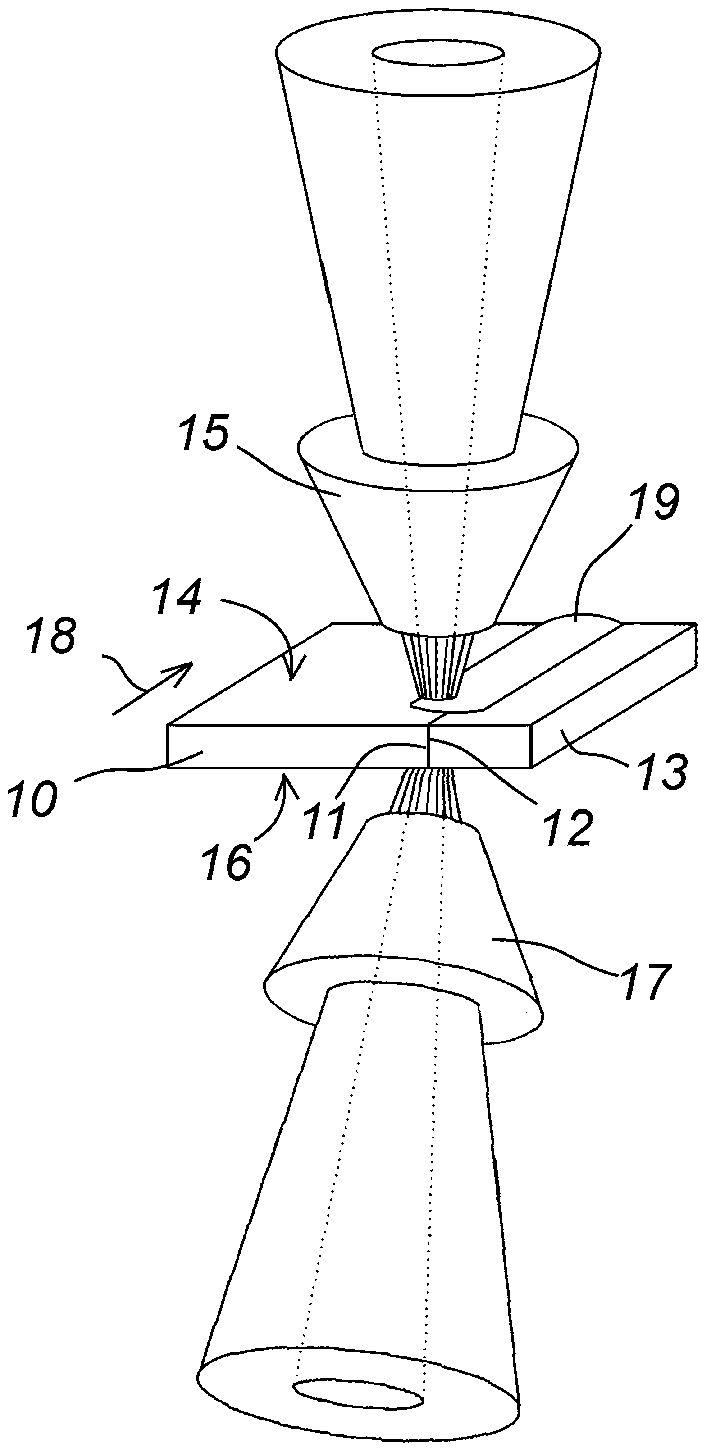

A method for producing a primary material for a cutting tool, for example a primary material for a saw blade or a saw band, in which a band-shaped carrier of a metal carrier material and a wire of high-speed steel are continuously brought together along a lateral edge of the band-shaped carrier and transported into a welding device and the band-shaped carrier is welded to the wire along the lateral edge of the carrier to produce a bimetal band. The band-shaped carrier and the edge wire are welded to one another by at least a first welding device, which is arranged on one side of the band-shaped carrier, and at least a second welding device, which is arranged on the opposite side of the band-shaped carrier.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23K Class
- 2354 Applications Filed
- 1765 Patents Issued To-Date
- 74.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jan 14, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jan 14, 2032 |
