Semiconductor element and crystalline laminate structure
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 8, 2020
Grant Date -
Sep 28, 2017
app pub date -
Aug 18, 2015
filing date -
Aug 29, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

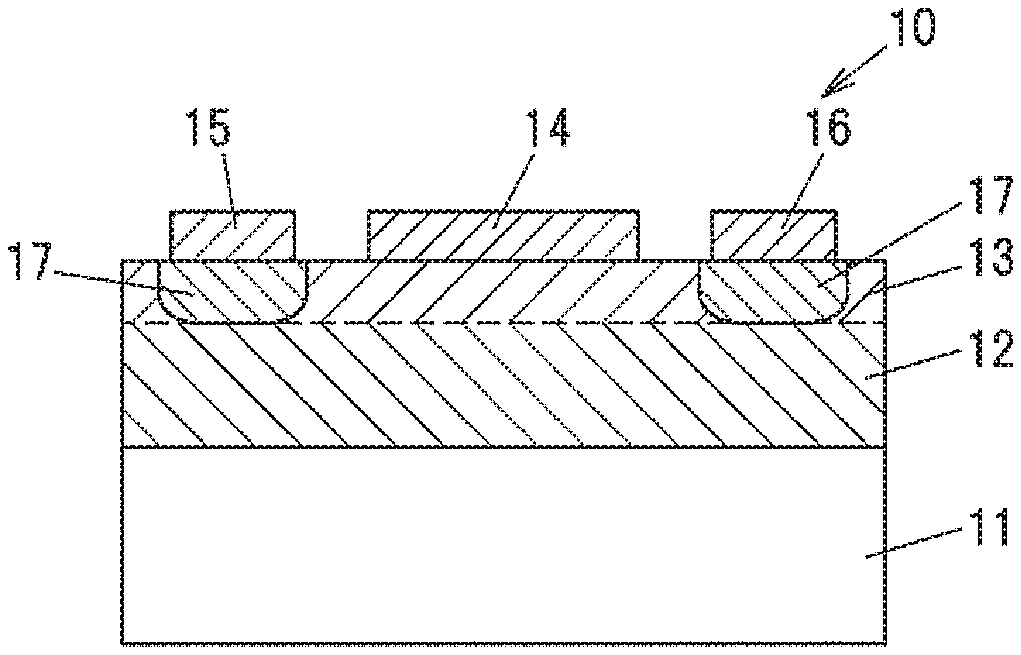

A semiconductor element includes a high-resistivity substrate that includes a β-Ga2O3-based single crystal including an acceptor impurity, a buffer layer on the high-resistivity substrate, the buffer layer including a β-Ga2O3-based single crystal, and a channel layer on the buffer layer, the channel layer including a β-Ga2O3-based single crystal including a donor impurity. A crystalline laminate structure includes a high-resistivity substrate that includes a β-Ga2O3-based single crystal including an acceptor impurity, a buffer layer on the high-resistivity substrate, the buffer layer including a β-Ga2O3-based single crystal, and a donor impurity-containing layer on the buffer layer, the donor impurity-containing layer including a β-Ga2O3-based single crystal including a donor impurity.
