Charged particle beam writing method, and charged particle beam writing apparatus
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Mar 6, 2017
filing date -
Mar 25, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance

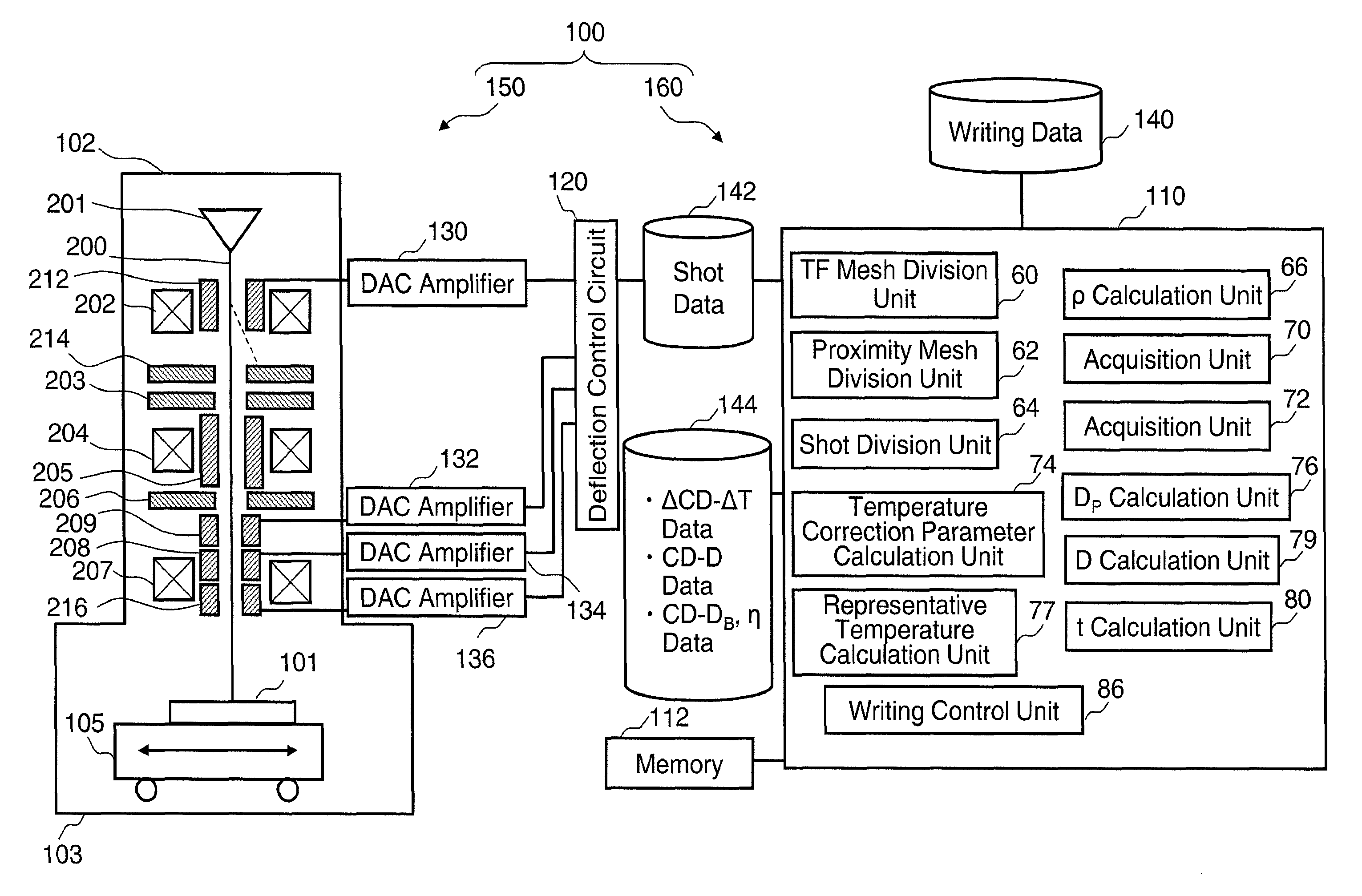

Abstract
A charged particle beam writing method includes acquiring a pair of a reference dose and a backscatter coefficient for proximity effect correction using a first settling time, acquiring a first relation between a temperature rise amount and a critical dimension variation amount using a second settling time shorter than the first settling time, the backscatter coefficient and the reference dose acquired, calculating a temperature correction parameter depending on a temperature rise amount, for correcting a dose, by using the first relation, and a second relation on a dose and a pattern critical dimension in a case of using the first settling time, calculating a beam irradiation dose by the reference dose and a dose coefficient obtained from the backscatter coefficient of the pair acquired, and the temperature correction parameter, and writing a pattern with a beam based on the dose calculated using the second settling time.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H01J Class
- 25.25 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
