EXPLOSIVE HARDENING OF TRACK SHOES
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Sep 28, 2017
app pub date -
Sep 8, 2015
filing date -
Sep 8, 2015
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

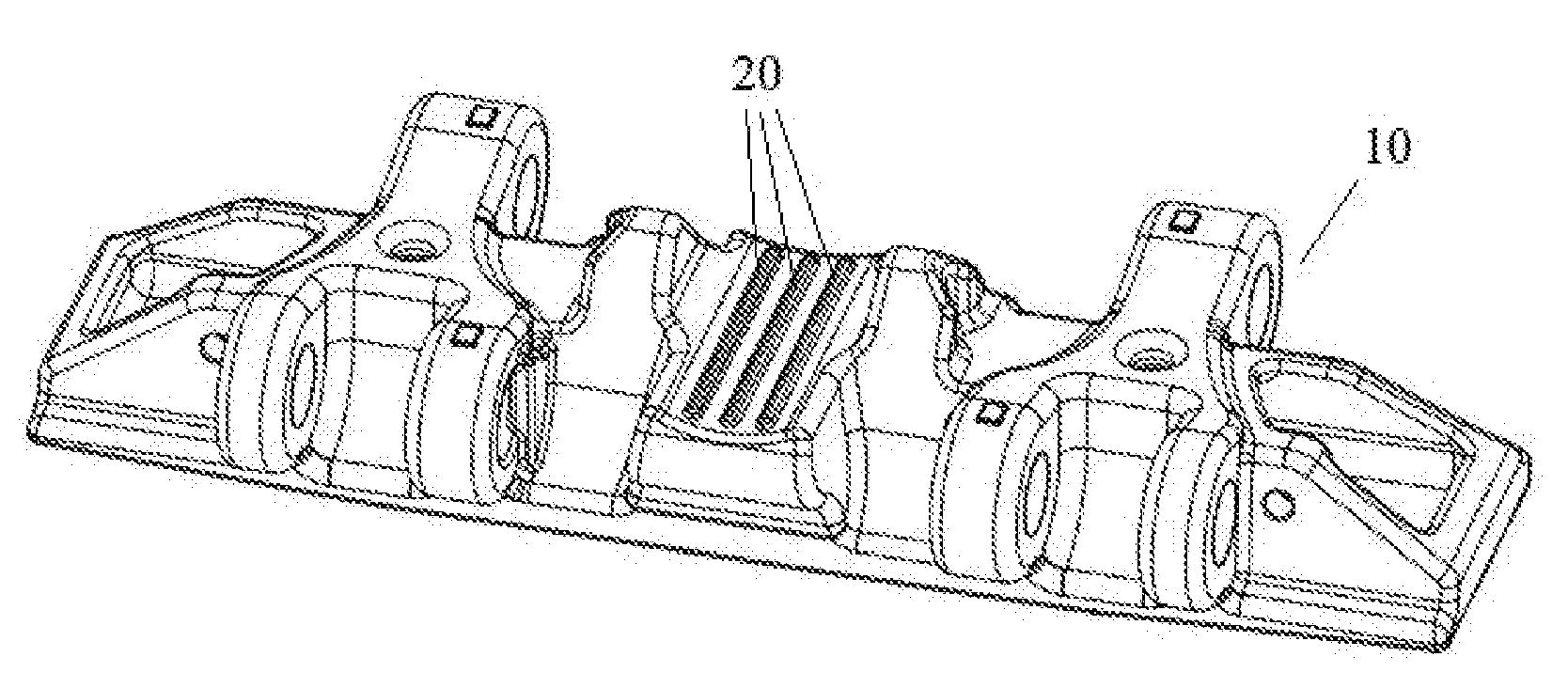

A component of a crawler type machine is hardened by explosive depth hardening. The component is typically a crawler track shoe (10), and the roller path surface (11) of the track shoe and immediate underlying metal portion are pre-hardened by placing explosive charge (15) on the surface of the track shoe (10), and detonating the explosive charge to impart a high force on the surface and underlying metal portion for a short duration. The resultant shock wave causes high-velocity deformation at a high stress level, which leads to intensive development of plastic displacement at microscopic size. This increases the hardness and the strength of the surface and underlying metal portion. The surface (11) may be hardened by repetitive explosive depth hardening. Grooves (20) may also be formed in the roller path (11) to accommodate any flow of material. Explosive depth hardening can be applied to other surfaces of the track shoe (10), such as the pin bore of a connection lug, or to other components such as a drive tumbler of the crawler.
First Claim
Other Claims data not available
