TOOL FOR FRICTION STIR WELDING
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 13, 2017
filing date -
Aug 21, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

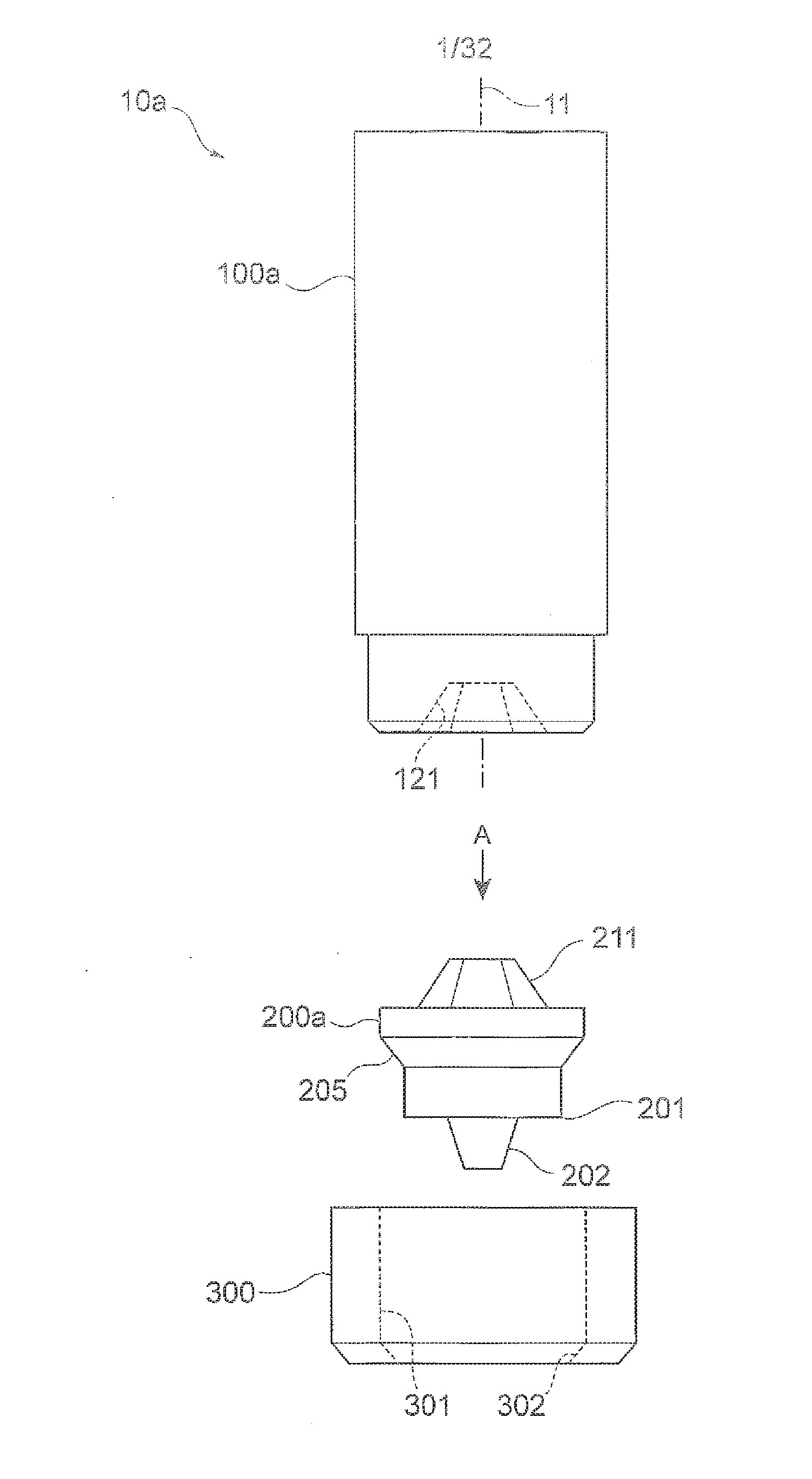

A tool for friction stir welding includes a tool part, a shank part and a cap part. The tool part and the shank part have a hexagonal frustum-shaped concave section and a hexagonal frustum-shaped convex section to enable movement of the tool part with respect to the shank part in a direction parallel to an axis of rotation while movement of the tool part with respect to the shank part in a direction around the axis of rotation is restricted, by the hexagonal frustum-shaped concave section and the hexagonal frustum-shaped convex section of the tool part and the shank part are fitted to each other. After the hexagonal frustum-shaped concave section and the hexagonal frustum-shaped convex section are fitted to each other, by the tool part and the shank part being covered by the cap part, the tool part is fixed to the shank part.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B23K Class
- 0 % this patent is cited more than
- 8 Age
