PORTHOLE GASKET FOR A PLATE HEAT EXCHANGER, A PLATE PACKAGE AND A PLATE HEAT EXCHANGER WITH SUCH A PORTHOLE GASKET
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 21, 2015
filing date -
Sep 26, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

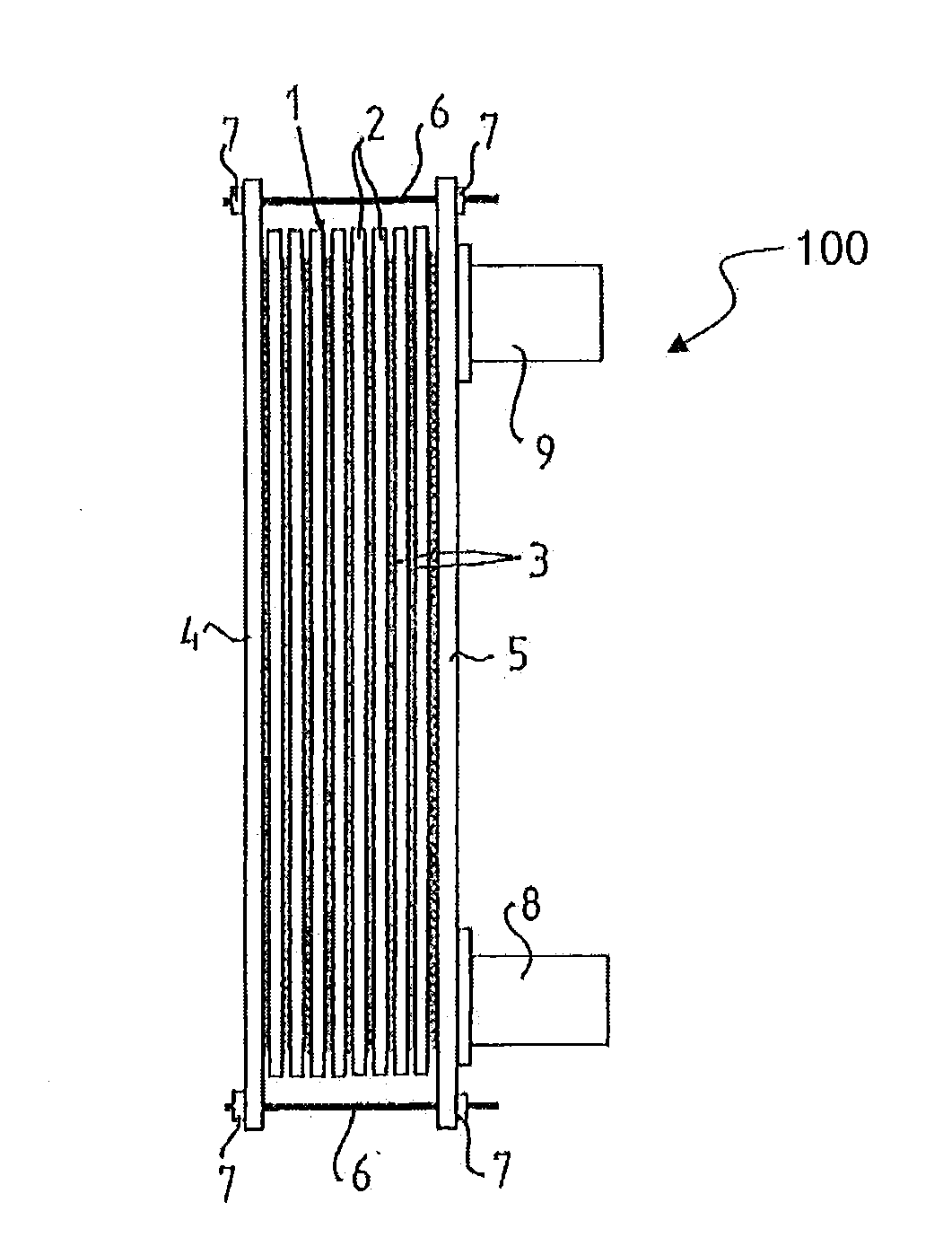

A porthole gasket is configured to seal a circumferential region around two overlapping portholes in two adjacent heat exchanger plates of a plate heat exchanger, so as to define a passage for a fluid into or out of the plate heat exchanger. The porthole gasket has a ring-shaped portion to be compressed between the two adjacent heat exchanger plates while surrounding the overlapping portholes. The porthole gasket further comprises a plurality of projections that protrude from an outer perimeter of the ring-shaped portion and are configured to be compressed between the two adjacent heat exchanger plates so as to support the ring-shaped portion against pressure exerted by the fluid. A plate package for a plate heat exchanger is configured to include the two adjacent heat exchanger plates and the porthole gasket.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| EP | A1 | EP3001131 | Sep 26, 2014 |
| WO | A1 | WO2016046119 | Sep 21, 2015 |
| CN | A | CN106716043 | Sep 21, 2015 |
| EP | A1 | EP3198206 | Sep 21, 2015 |
| CA | A1 | CA2962108 | Sep 21, 2015 |
International Classification(s)
- 2015 Application Filing Year
- F28F Class
- 958 Applications Filed
- 662 Patents Issued To-Date
- 69.11 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 3 Citation Count
- F28F Class
- 24.01 % this patent is cited more than
- 8 Age
