PRESSURE CUSHIONING DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 19, 2014
filing date -
Aug 26, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

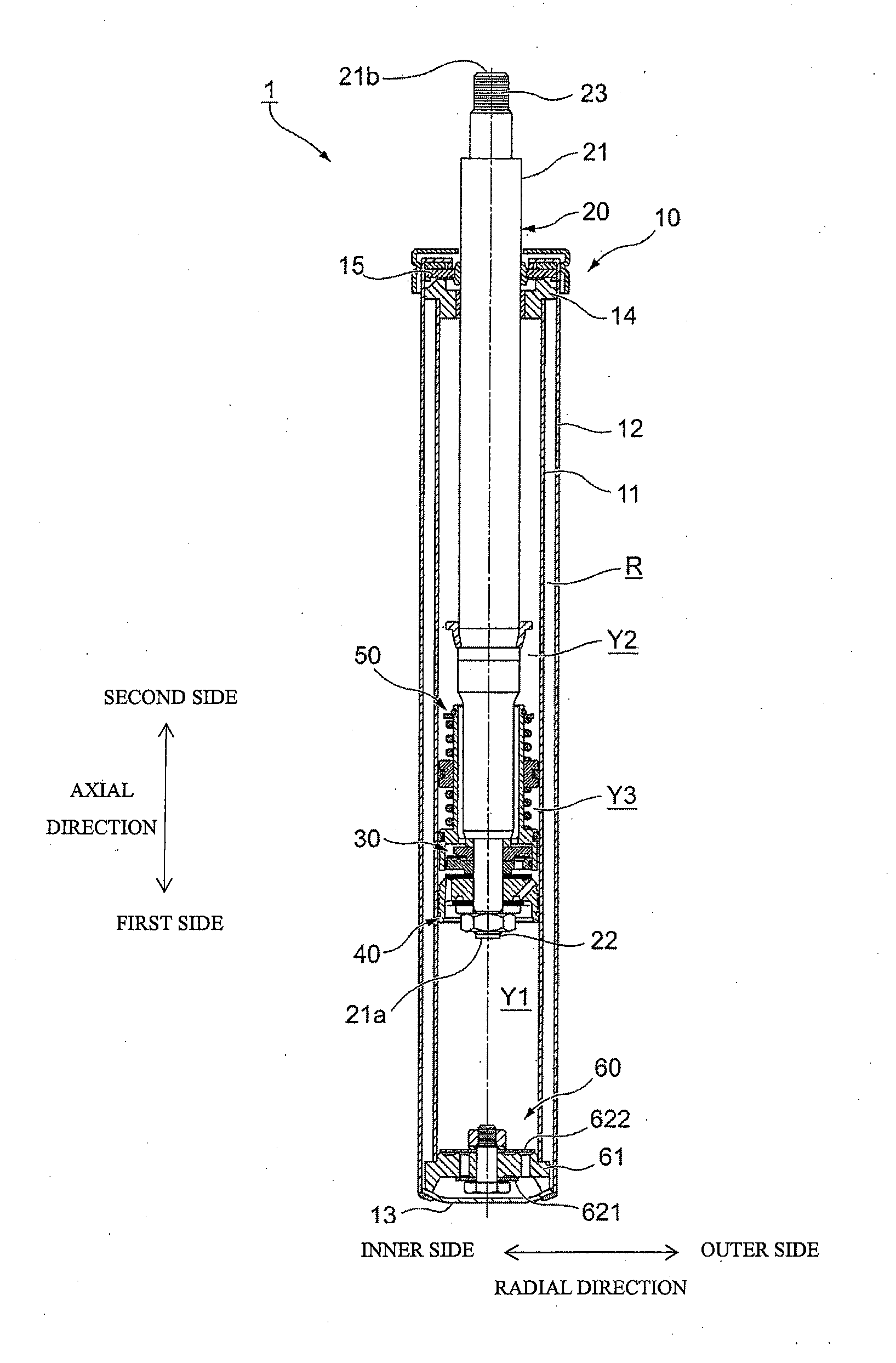

A hydraulic pressure cushioning device includes: a cylinder; a rod movably provided in the cylinder; a first piston valve section that is provided on the rod. The first piston valve section includes: a first piston member and a second piston member that form a channel; and a single first damping valve with which a first flow of the fluid from the first side to the second side in the channel and a second flow of the fluid from the second side to the first side in the channel are controlled; a bypass path which differs from the channel; and a free piston provided on the rod in such a manner that a flow of the fluid is switched between the channel and the bypass path in accordance with a movement position of the rod.
First Claim
Other Claims data not available
