Fuel supply devices
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 25, 2020
Grant Date -
Sep 21, 2017
app pub date -
Aug 10, 2015
filing date -
Aug 26, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

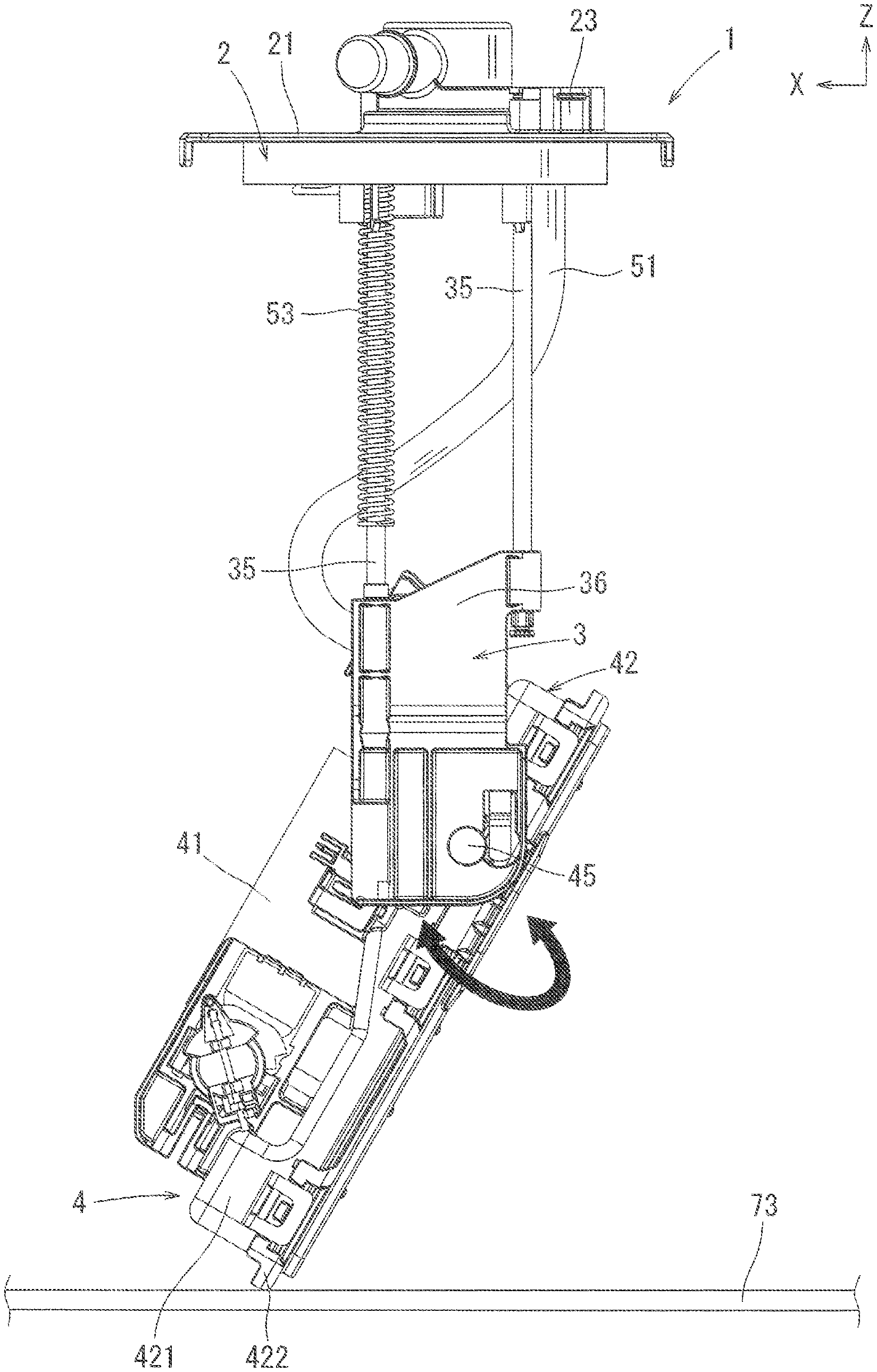

A fuel supply device has a cover member which is attached to an opening of a fuel tank, a pump unit provided with a pump, and a connecting portion for connecting the cover member and the pump unit. The fuel supply device has a connecting shaft which is formed on either one of the connecting portion or the pump unit, and a connecting hole which is formed on the other. The fuel supply device has a guide mechanism which can guide the pump unit. The guide mechanism includes a first guide portion formed at the connecting portion and a second guide portion formed at the pump unit. One of the first guide portion or the second guide portion includes a protruding portion which protrudes in a position spaced apart from the connecting shaft. The other guide portion is formed to restrict a movable range of the protruding portion.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- F02M Class
- 42.08 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 25, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 25, 2032 |
