Cast contact pads
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Aug 11, 2020
Grant Date -
Sep 21, 2017
app pub date -
Mar 16, 2016
filing date -
Mar 16, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

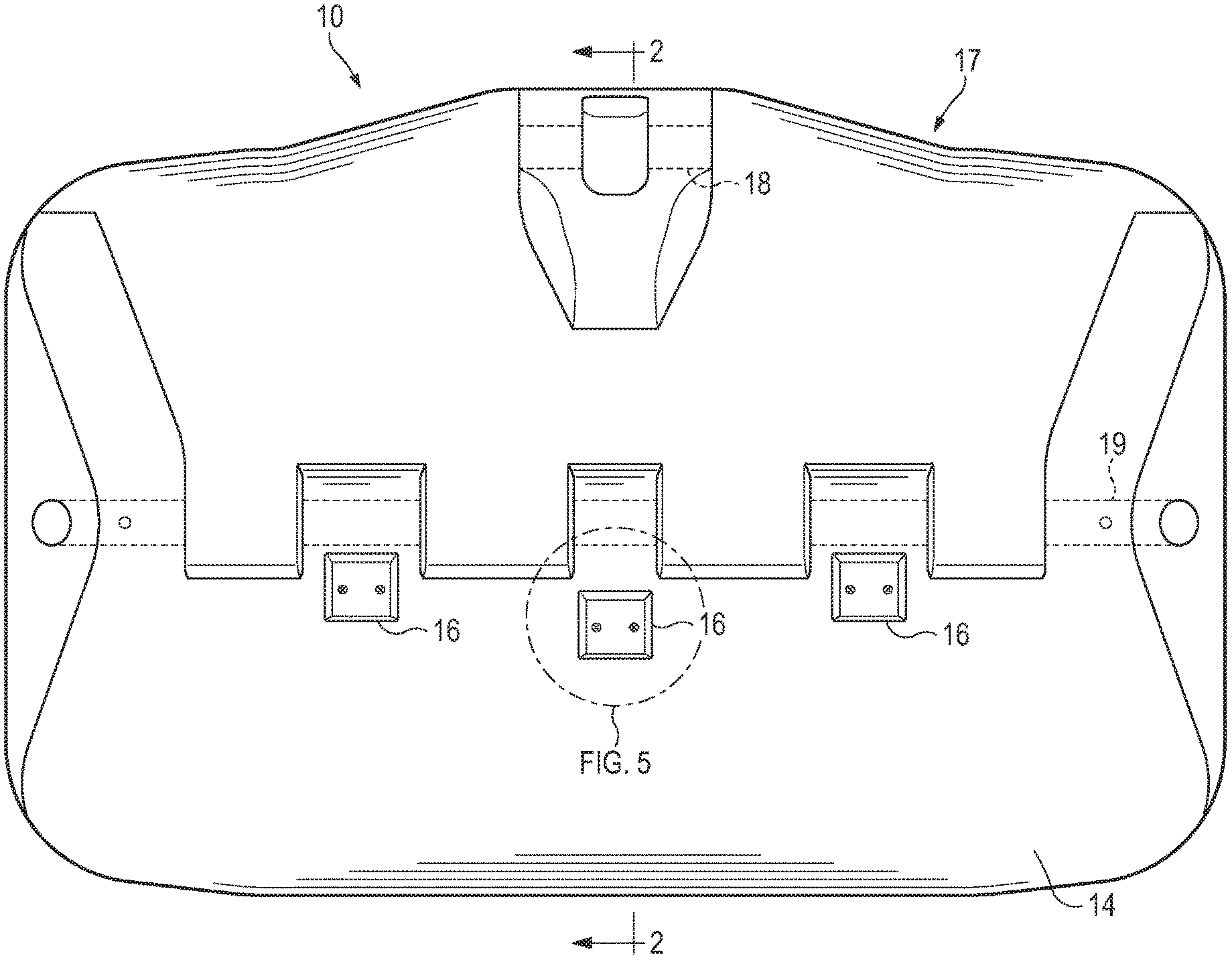

A contact pad is provided having a load-engaging front surface and an oppositely-facing rear surface, preferably comprising a cast metal contact pad having at least one depression adjacent to the rear surface and a tile embedded within the depression such that the tile has an exposed surface, and a wear element on the exposed surface. A method for manufacturing a contact pad having a load-engaging front surface and an oppositely-facing rear surface preferably includes the steps of embedding a mild steel tile within a contact pad casting pattern such that, once embedded, the embedded tile has an exposed weldable surface, casting the contact pad from ductile cast iron and applying a wear element on the weldable surface.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- B66F Class
- 396 Applications Filed
- 294 Patents Issued To-Date
- 74.25 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- B66F Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Feb 11, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Feb 11, 2032 |
