MARINE DECKING WITH SANDWICH-TYPE CONSRUCTION AND METHOD OF MAKING SAME
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jun 6, 2017
filing date -
May 24, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

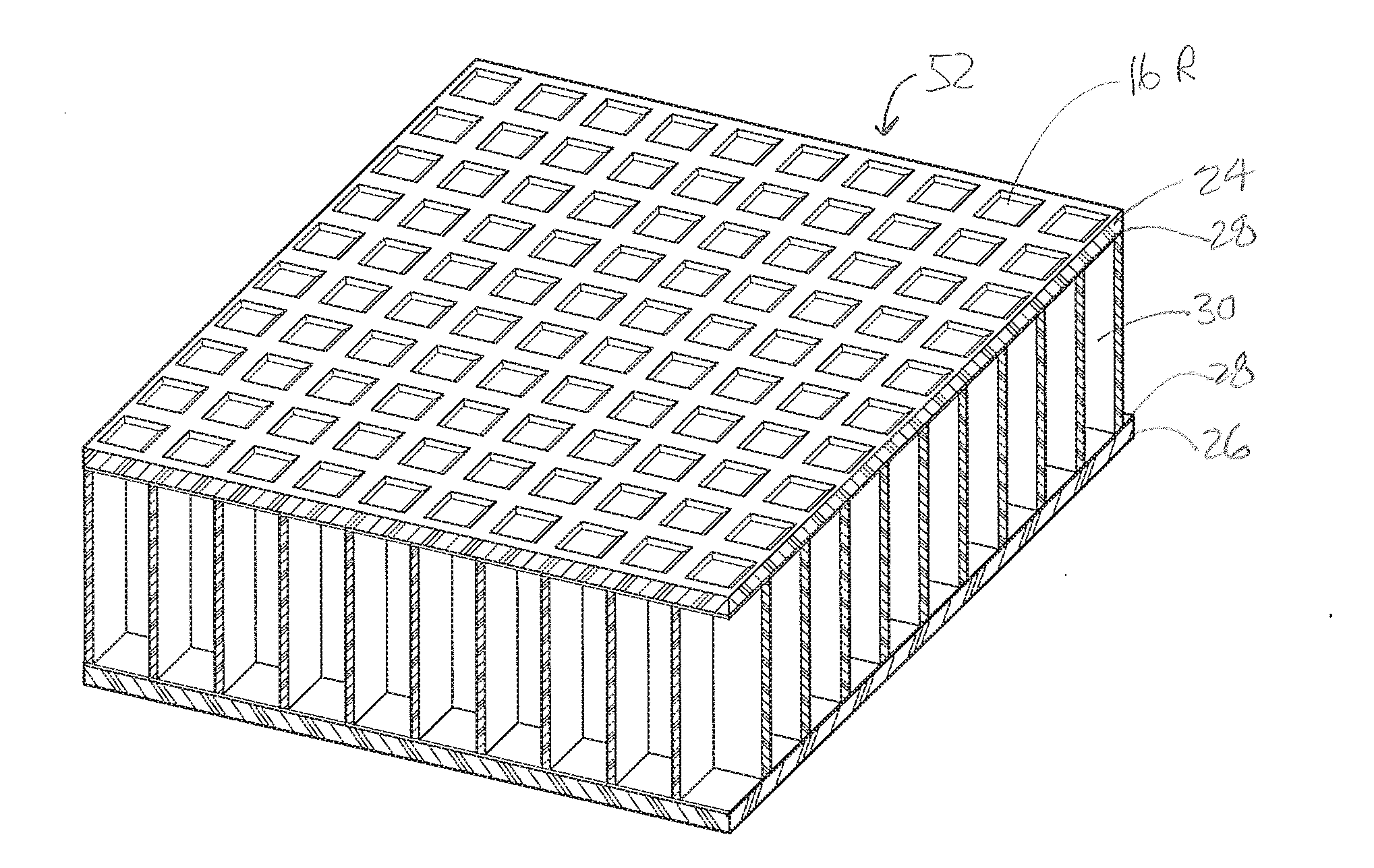

A marine deck member with enhanced surface traction and the process for forming the same. The marine deck member comprises a sandwich-type composite panel made by a compression molding process. In such a process, the panel is made by subjecting a heated stack of layers of material to cold-pressing in a mold. The cellular core has a 2-D array of cells, each of the cells having an axis substantially perpendicular to the outer surfaces, and extending in the space between the layers or skins, with end faces open to the respective layers or skins. The surface traction of this type of composite panel can be enhanced for marine deck applications by controlled debossing, or embossing, of the first skin while it cools in the compression mold. The debossing effect can be effected by applying pressurized gas, e.g., pressurized air, onto the outer surface of the first skin while in the compression mold. The embossing can be effected by applying vacuum pressure on the outer surface of the first skin while in the compression mold.
First Claim
Other Claims data not available
