Multi-level high-speed adjustable speed drive
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jul 28, 2020
Grant Date -
Sep 14, 2017
app pub date -
Mar 11, 2016
filing date -
Mar 11, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

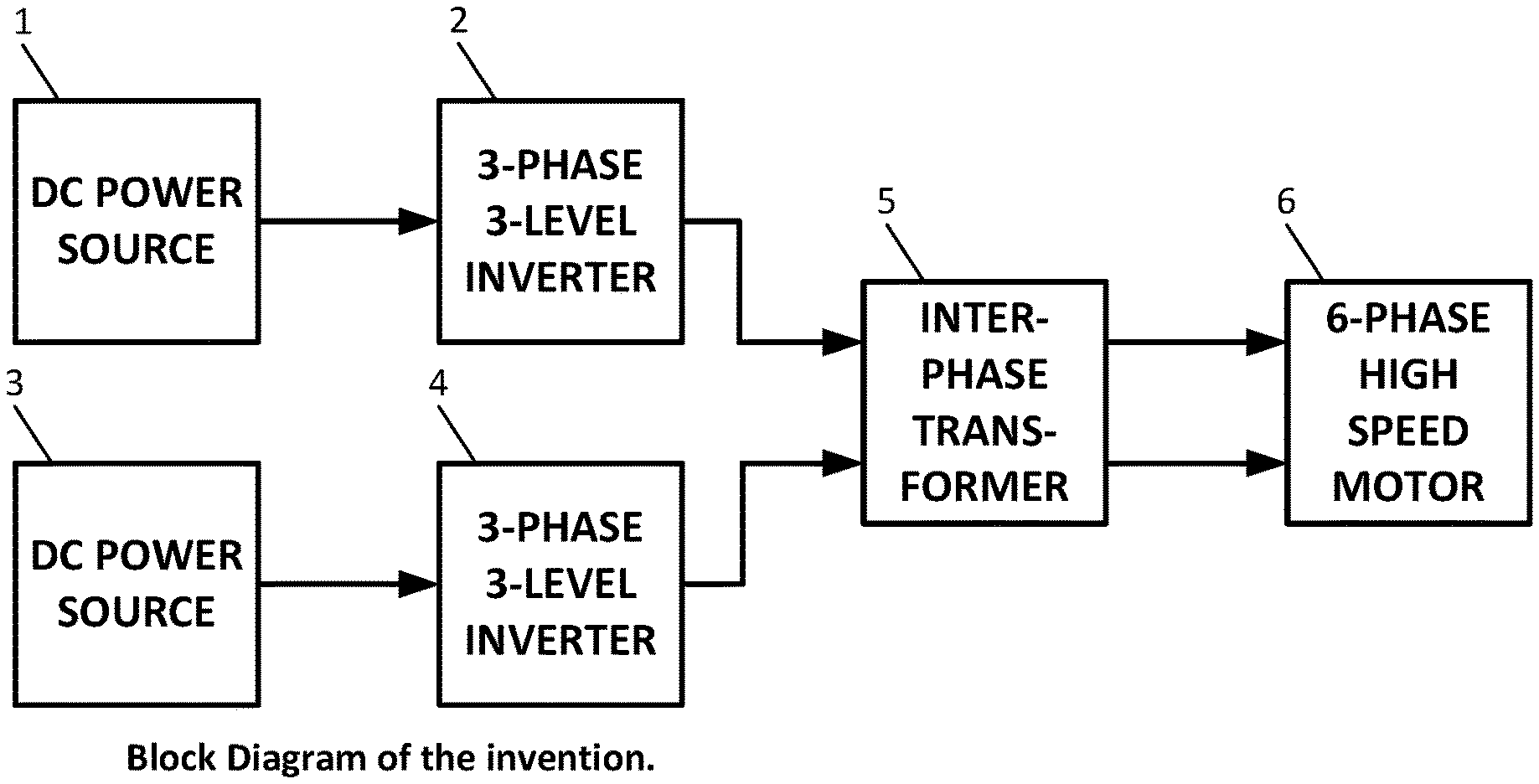

A multi-level high-speed adjustable speed drive has a plurality of modular multilevel, 3-phase inverter bridges, wherein the multilevel, 3-phase inverter bridges operate with fundamental frequency, f, wherein the multilevel, 3-phase inverter bridges include at least three levels, wherein the multilevel, 3-phase inverter bridges operate in Pulse-Width Modulation (PWM) mode with 9 to 21× or operating in Fundamental Frequency Mode (FFM), wherein inverter commutation frequency equals the fundamental frequency, wherein the multilevel, 3-phase inverters operate with split phase such that one group is displaced from the other by an angle, θ=60°/q, wherein the phase displacement of a harmonic component of order n between groups, θn is nθ/q; a high-speed polyphase motor with phases arranged in q 3-phase groups; and electromagnetic means for blocking selected groups of harmonics while passing components at fundamental frequency, f, wherein the electromagnetic means includes coils carrying motor current linked by a magnetic core, wherein the electromagnetic means is interposed between the plurality of modular multilevel, 3-phase inverter bridges and the high-speed polyphase motor.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- H02M Class
- 34.93 % this patent is cited more than
- 5 Age
