CHATTERING-LESS RECTIFICATION CIRCUIT
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 31, 2016
filing date -
Mar 14, 2016
priority date (Note) -
Abandoned
status (Latency Note)
Importance
Abstract

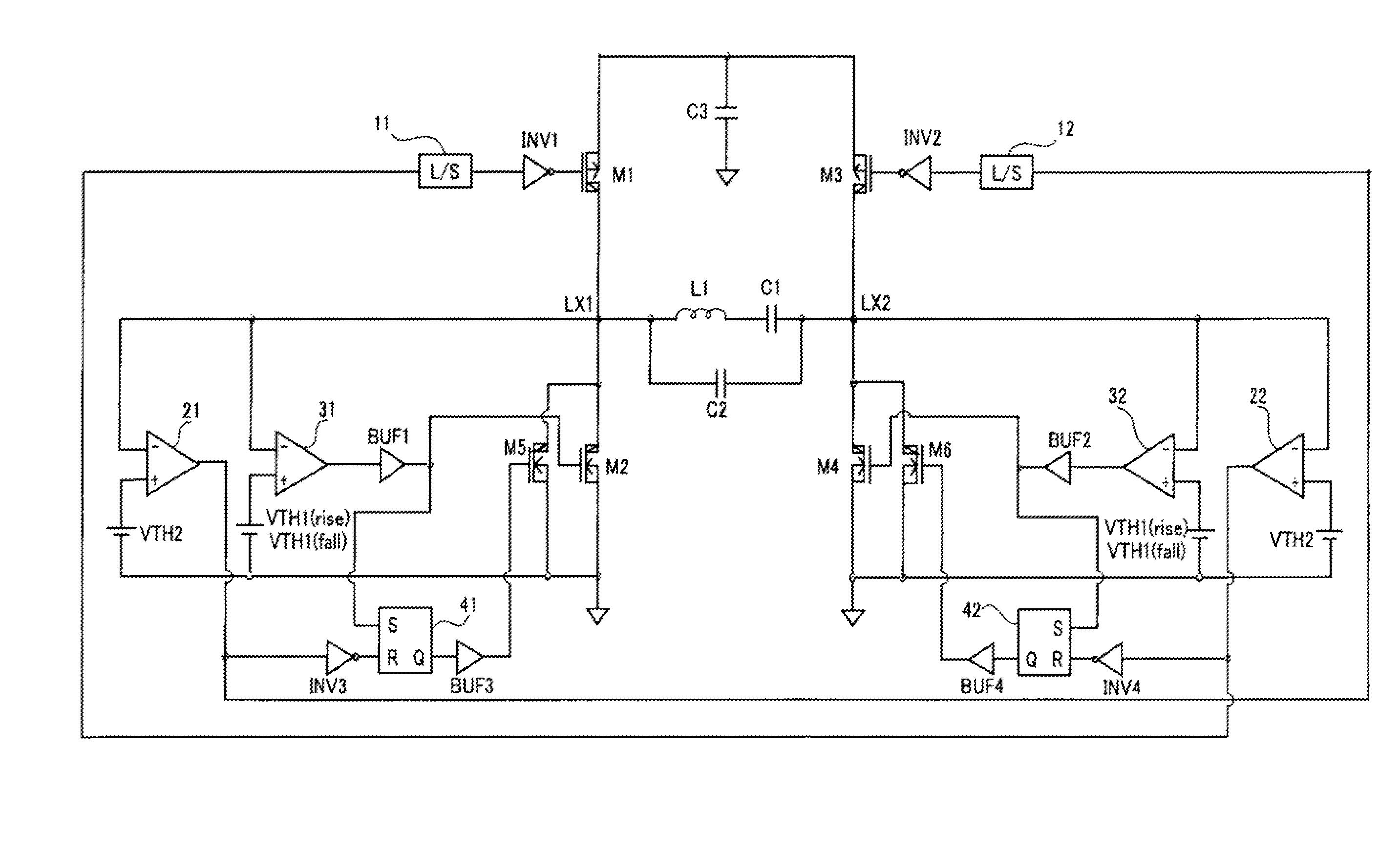

A rectification circuit connected to a coil and a capacitor, includes, on each terminal side of the coil, a high-side transistor connected between a terminal of the coil and the capacitor, first and second low-side transistors connected in parallel between the terminal of the coil and a fixed potential, a comparator that causes the first low-side transistor to be turned on when a voltage of the terminal of the coil decreases to a first value and then turned off when the voltage increases to a second value that is higher than the first value and lower than the fixed potential, and a controller that causes the second low-side transistor to be turned off when the voltage decreases to a third value that is higher than the second value and lower than the fixed potential, and then turned off when the voltage increases to the third value.
