Method and machine for producing sausage-shaped products
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 9, 2018
Grant Date -
Sep 14, 2017
app pub date -
Mar 8, 2017
filing date -
Mar 9, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

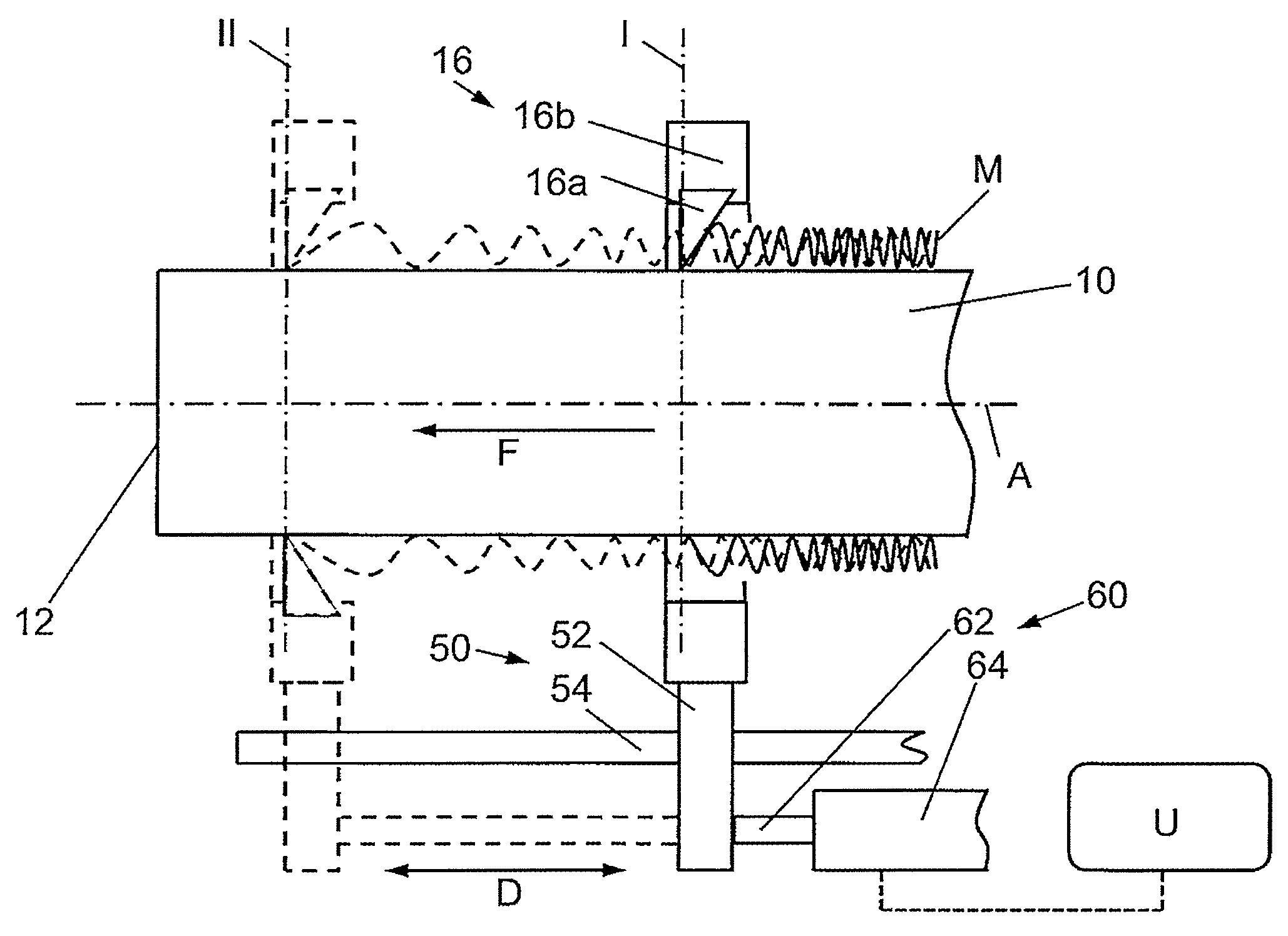

The present invention relates to a method for producing sausage-shaped products, like sausages, containing a flowable filling material in a tubular or bag-shaped packaging casing, on a clipping machine, and a clipping machine for producing sausage-shaped products. The method comprises the steps of feeding the filling material in a feeding direction into the tubular or bag-shaped packaging casing stored on a filling tube and being closed at the front end by a closure means, like a closing clip, limiting the movement of the tubular or bag-shaped packaging casing while being pulled-off from the filling tube by a casing brake assembly arranged on the filling tube, gathering the filled tubular or bag-shaped packaging casing by gathering means arranged downstream the filling tube, for forming a plait-like portion thereto, and placing and closing at least one closure means on the plait-like portion for closing the filled tubular or bag-shaped packaging casing. Moreover, the casing brake assembly is moved along the filling tube during the feeding filling material into the tubular or bag-shaped packaging casing.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A22C Class
- 161 Applications Filed
- 127 Patents Issued To-Date
- 78.89 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A22C Class
- 0 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 9, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 9, 2029 |
