Insect trap
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 16, 2020
Grant Date -
Sep 14, 2017
app pub date -
May 18, 2016
filing date -
Mar 14, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

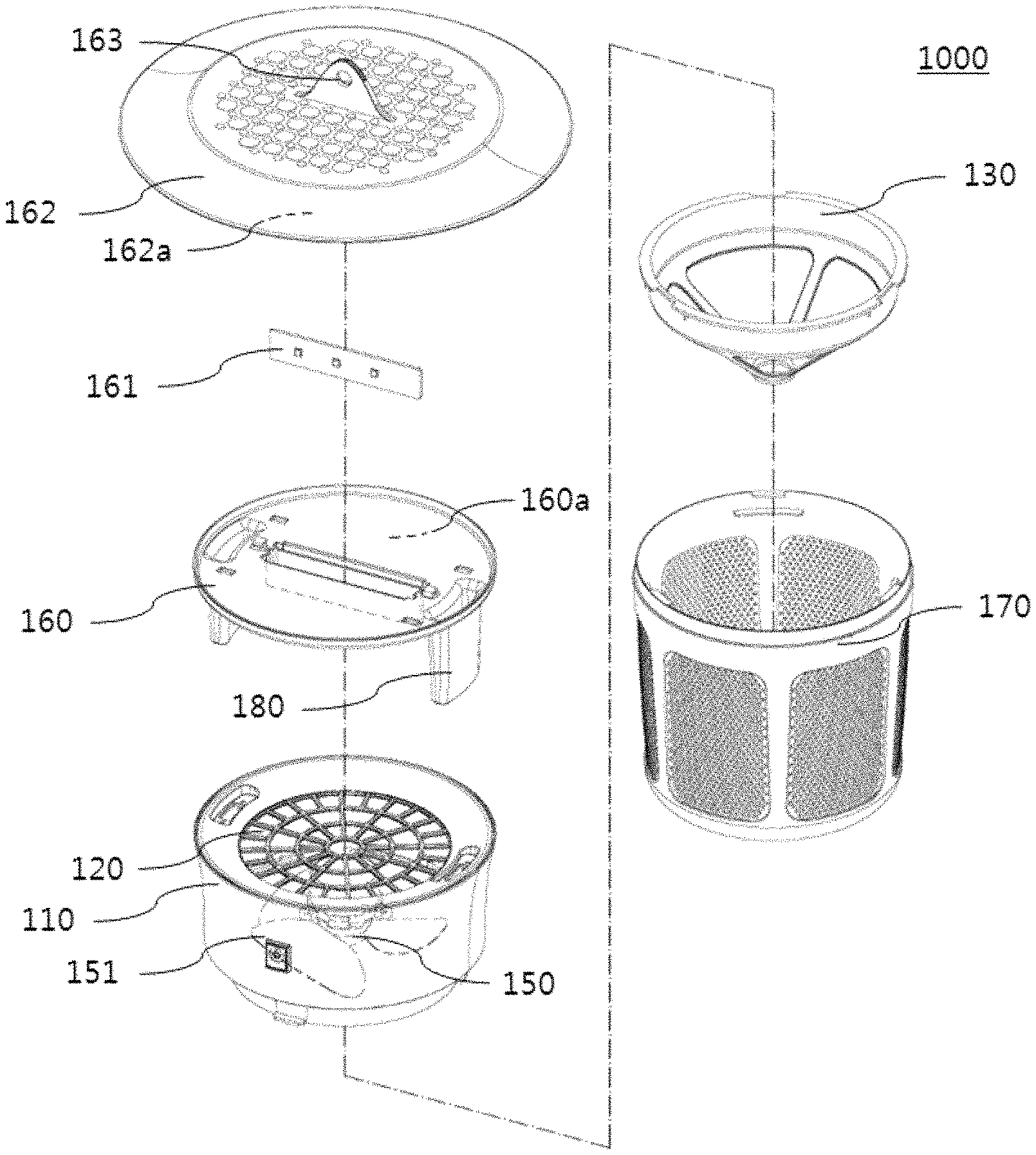

An insect trap device for attracting mosquitoes includes a main body including an upper inlet and a lower outlet, a suction fan disposed in the main body and configured to draw air from the upper inlet to the lower outlet, an insect filter disposed upstream of the suction fan, the insect filter including a plurality of openings, an upper body disposed in a spaced relationship with the upper inlet, an ultraviolet (UV) light source disposed between the upper inlet and the upper body, an air collector disposed downstream of the suction fan, and an insect collector disposed on the lower outlet under the air collector, in which the air collector has a substantially conical shape including a central opening at a distal apex and a plurality of side openings including mesh.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2016 Application Filing Year
- A01M Class
- 534 Applications Filed
- 344 Patents Issued To-Date
- 64.42 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 5 Citation Count
- A01M Class
- 41.36 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 16, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 16, 2031 |
