X-Y-Z PIPE RACKER FOR A DRILLING RIG
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 19, 2017
filing date -
Jan 23, 2013
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

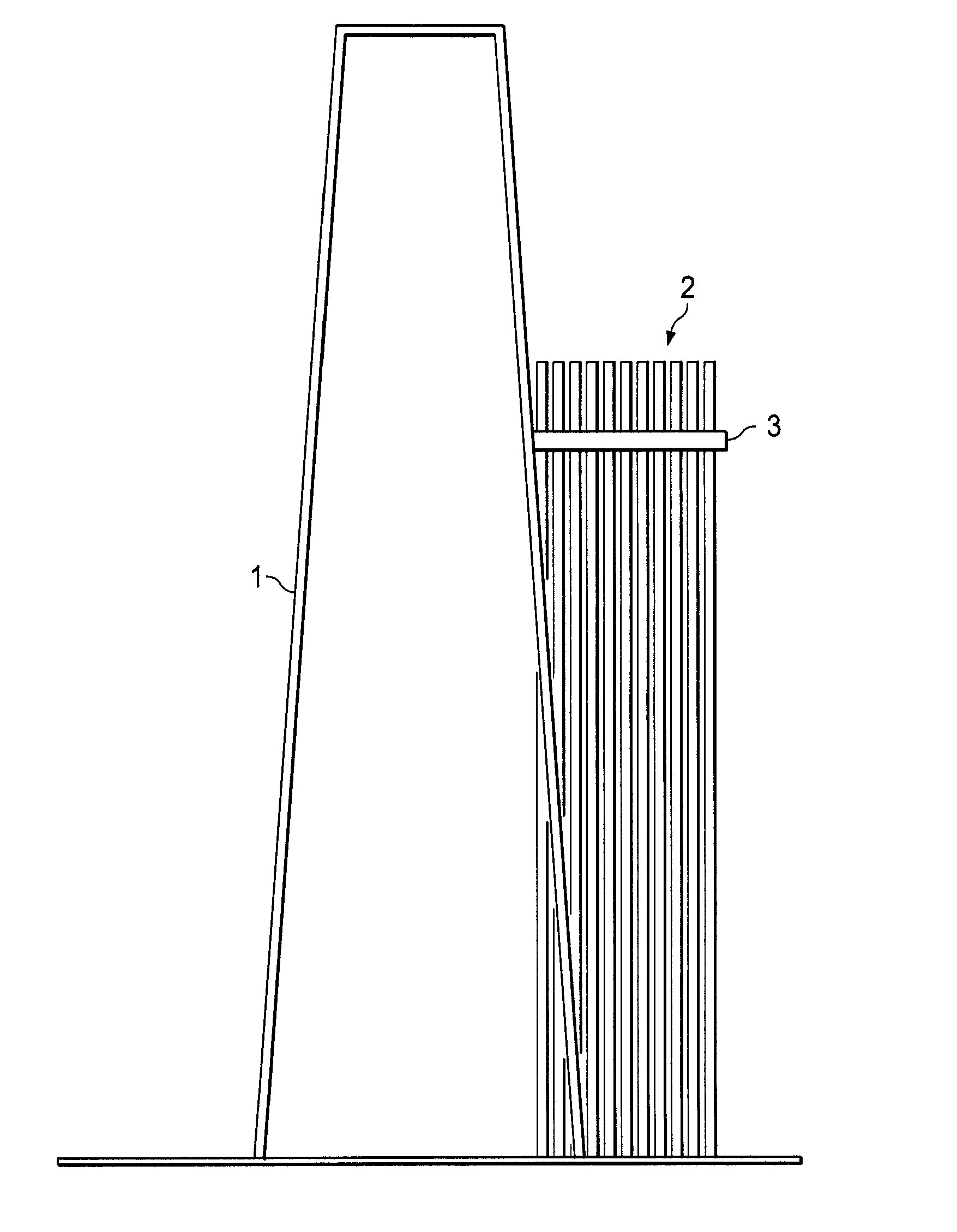

Apparatus and methods include an x-direction support structure extending in the same direction as a line extending between a well center and a V-door on a drilling rig and include a y-direction support structure moveable along the x-direction support structure. The y-direction support structure extends on a drilling rig in a direction transverse to the line extending between the well center and the V-door on the drilling rig. A racker device is carried by the y-direction support structure and is configured to connect to and carry a tubular stand used in a well drilling process, the racker device being moveable along the y-direction support structure from a position inline with the line extending between the well center and the V-door on the drilling rig to a position offline from the line to provide space for additional drilling processes along the line extending between the well center and the V-door on the drilling rig.
