ULTRASONIC PROBE AND ALIGNED NEEDLE GUIDE SYSTEM
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
May 22, 2017
filing date -
Jul 10, 2012
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

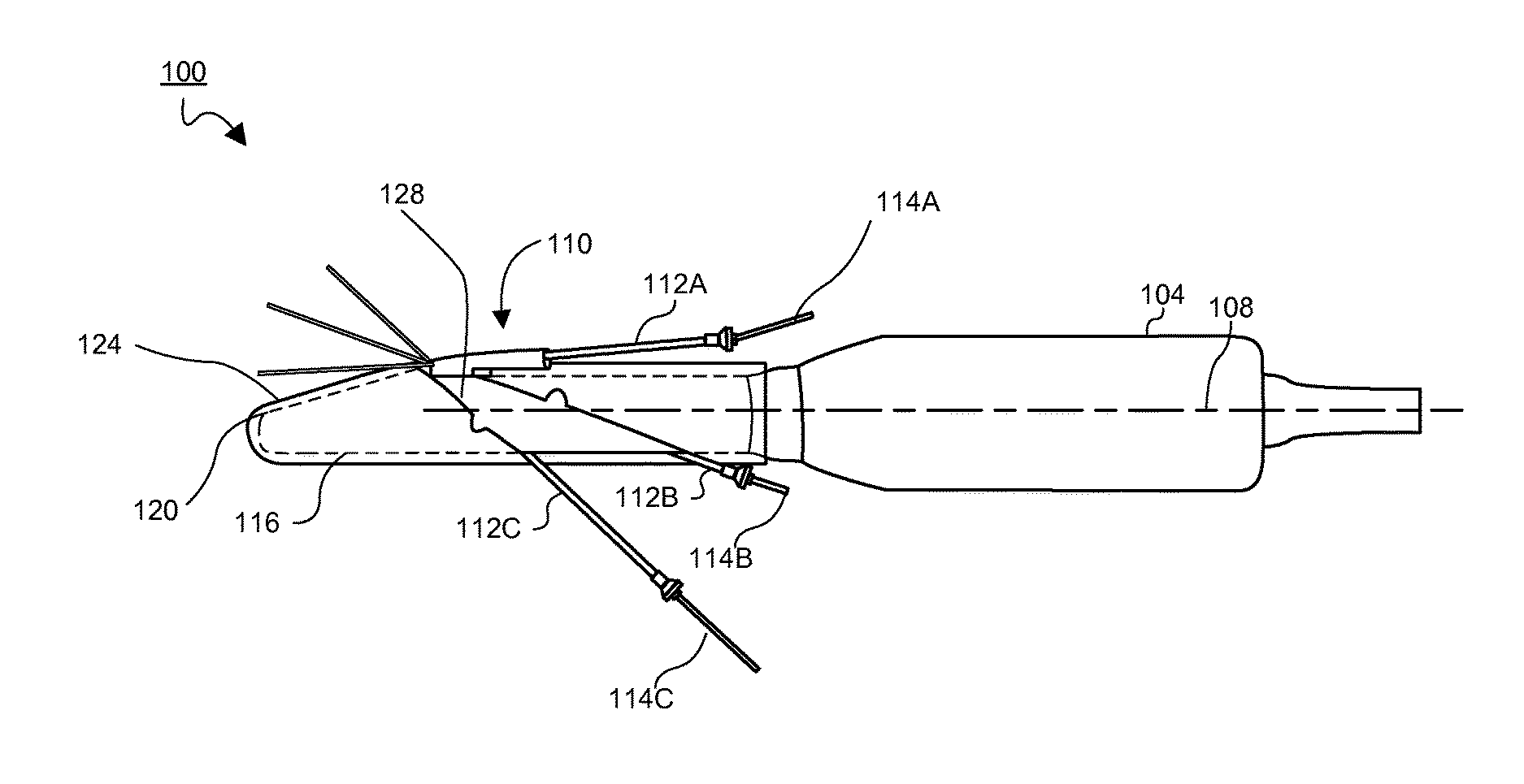

A side-fire ultrasonic probe includes an alignment feature that, when used to connect the probe with a needle guide for intra-cavity medical procedures, enables alignment of a needle in an imaging plane of an ultrasonic transducer. The alignment feature is configured such that alignment of the needle within the imaging plane is accomplished when a protective sheath is disposed between the alignment feature and the needle guide. This configuration can be used with high frequency ultrasonic arrays having frequency distributions centered at about 20 MHz, and for medical procedures, such as biopsying organs or other bodily intra-cavity structures, and delivering intra-cavity therapies.
