AMMONIA-BASED THERMOELECTROCHEMICAL SYSTEMS AND METHODS
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 9, 2015
filing date -
Oct 10, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

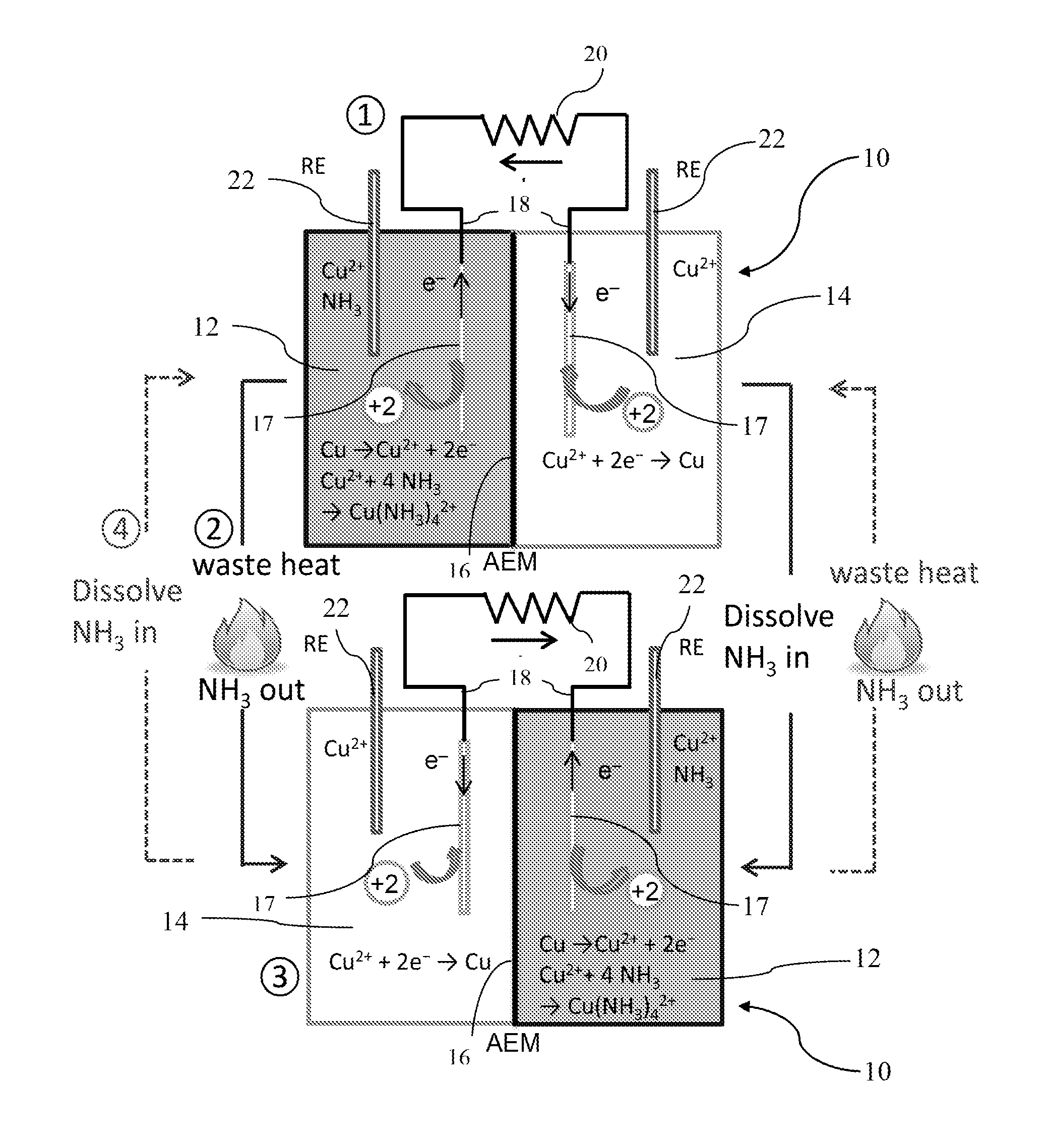

Thermally regenerative ammonia-based battery systems and methods of their use to produce electricity are provided according to aspects described herein in which ammonia is added into an anolyte to charge the battery, producing potential between the electrodes. At the anode, metal corrosion occurs in the ammonia solution to form an ammine complex of the corresponding metal, while reduction of the same metal occurs at the cathode. After the discharge of electrical power produced, ammonia is separated from the anolyte which changes the former anolyte to catholyte, and previous anode to cathode by deposition of the metal. When ammonia is added to the former catholyte to make it as anolyte, the previous cathode becomes the anode. This alternating corrosion/deposition cycle allows the metal of the electrodes to be maintained in closed-loop cycles, and waste heat energy is converted to electricity by regeneration of ammonia, such as by distillation.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 4 Citation Count
- H01M Class
- 21.89 % this patent is cited more than
- 8 Age
