Acoustic panel for partition wall assembly
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Feb 25, 2016
filing date -
Feb 25, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

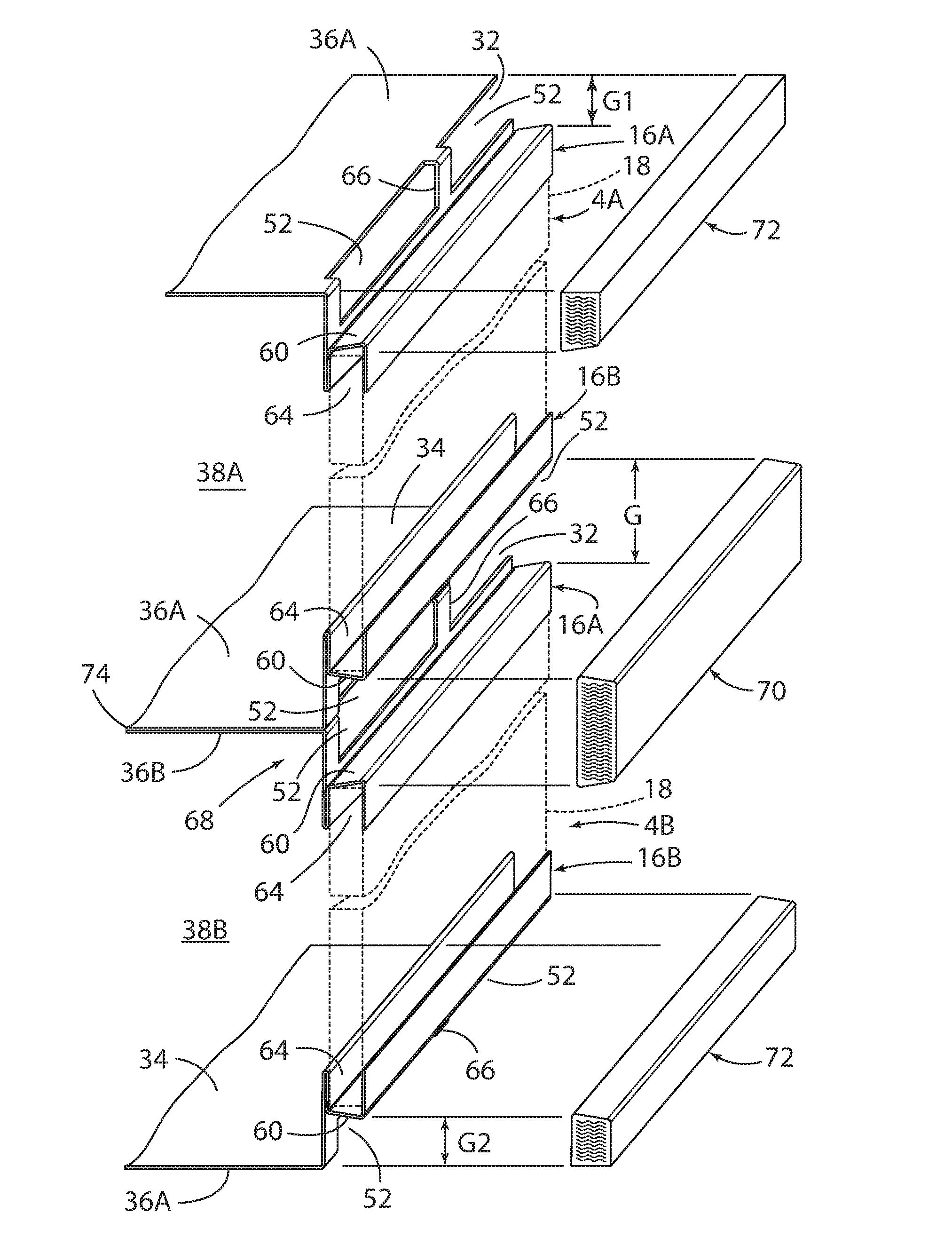

An office partition system including a partition frame having front and rear sides. Front and rear transparent sheet material is disposed on the front and rear sides of the partition frame, respectively. Horizontally and vertically extending dividers are disposed between the front and rear transparent sheet material to define a plurality of vertically juxtaposed interior chambers. The front transparent sheet material comprises a plurality of first sheets, each first sheet having horizontally-extending upper and lower edges. The upper and lower edges of adjacent first sheets are vertically spaced apart to define horizontally elongated gaps therebetween. The horizontally elongated gaps are fluidly connected to interior chambers disposed above and below the horizontal dividers to define Helmholtz resonators whereby sound that is incident on the front side of the partition frame is absorbed to the Helmholtz resonance.
First Claim
Other Claims data not available
Family
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- E04B Class
- 28.34 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
