PERSONAL FORMULATION DEVICE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Oct 1, 2015
filing date -
Oct 7, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

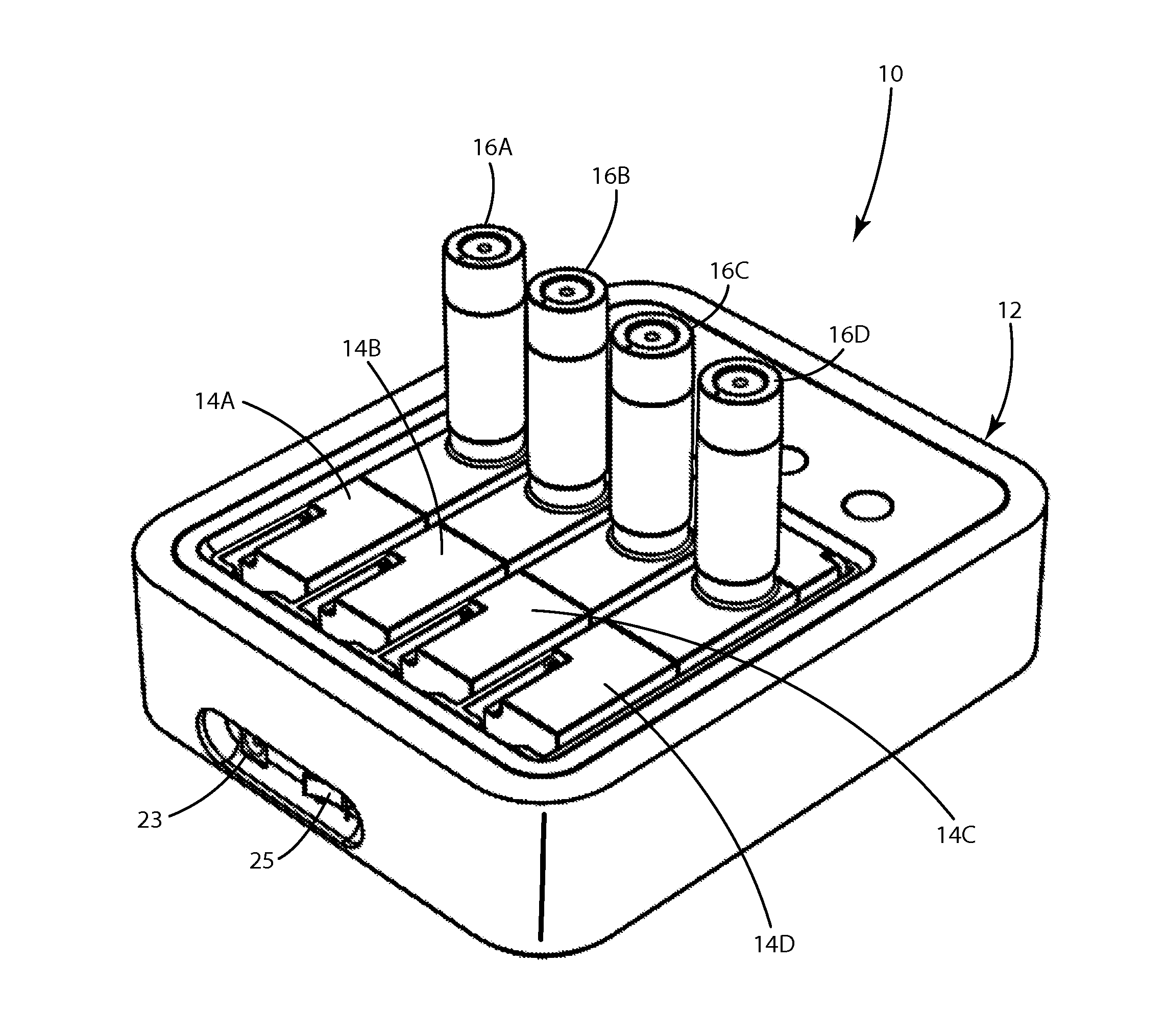

A personal formulation device for mixing and dispensing customized formulations from ingredient reservoirs carried by the device. The device may include a plurality of miniaturized progressive pumps with a flexible coupling between the motor and the pump. The coupling may include a spring (40). The device may include a spacer sleeve (62) having an internal diameter tapered to closely follow the motion envelope of the spring (40). Each pump may include a retainer (60) that is threaded into the interior of the pump body (52) to retain the spacer sleeve (62) and the drive end (120) of the rotor (34). Each pump may include a stator with an integrated flange seal (36). The flange seal (36) may extend around the circumference of the stator and be sandwiched between portions of the pump body (52). The stator may have a noncircular shape that keys the stator within the pump body. The pump may include an optical metering system.
First Claim
Other Claims data not available
