SUBSTRATE FOR COLOR CONVERSION OF LIGHT-EMITTING DIODE AND MANUFACTURING METHOD THEREFOR
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Aug 7, 2015
filing date -
Sep 26, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
Abstract

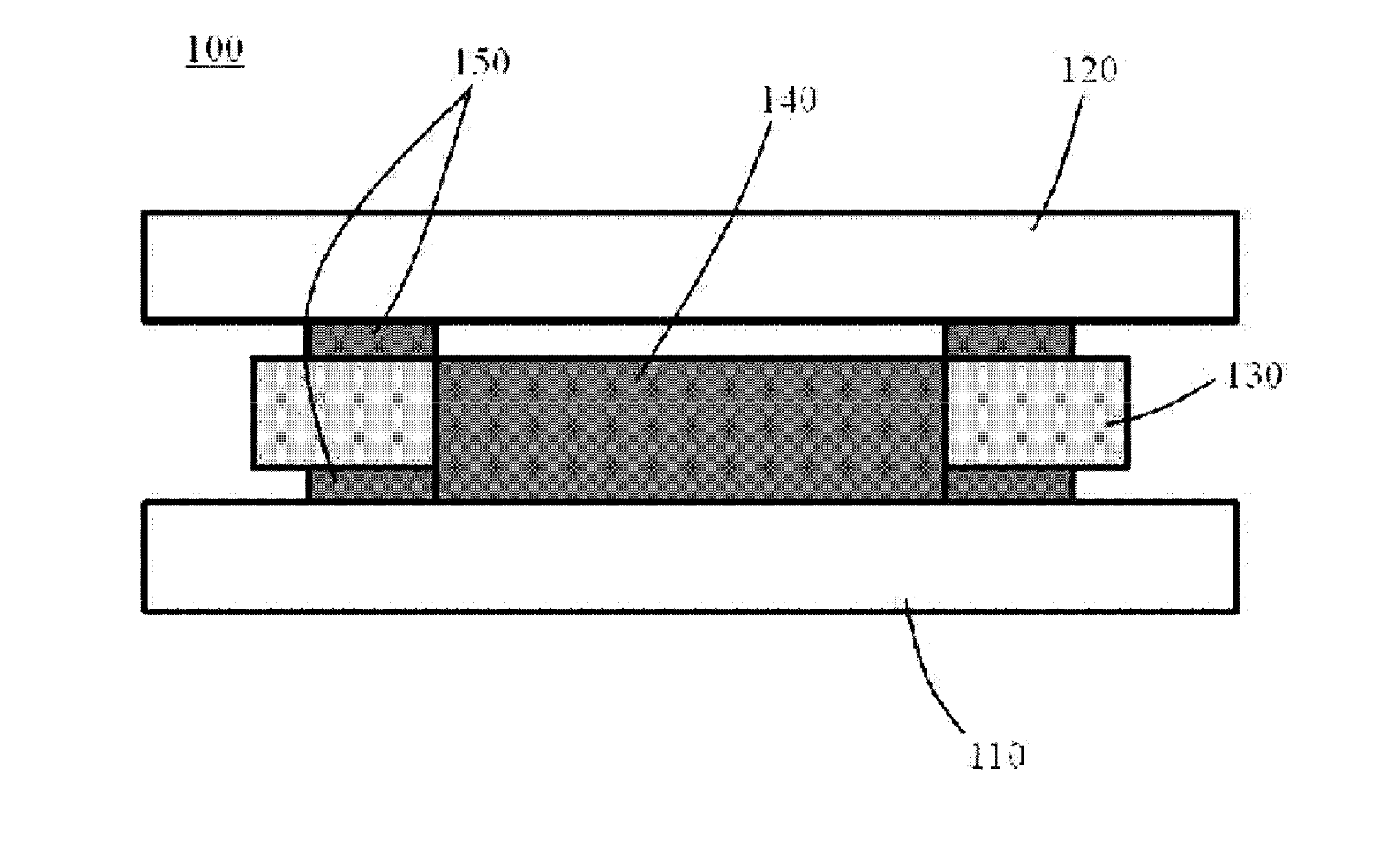

The present invention relates to a substrate for the color conversion of a light-emitting diode and a manufacturing method therefor and, more specifically, to a substrate for the color conversion of a light-emitting diode and a manufacturing method therefor, which enable a quantum dot (QD) and a structure, in which the QD is supported, to have a color conversion function for implementing white light. To this end, the present invention provides a substrate for the color conversion of a light-emitting diode, comprising: a first glass substrate arranged on a light-emitting diode; a second glass substrate formed to face the first glass substrate; a structure arranged between the first glass substrate and the second glass substrate, having a hollow portion and formed from a mixture of a yellow phosphor and a low-melting point frit glass; a QD filling the hollow portion; and sealing materials respectively formed between the first glass substrate and the lower side of the structure and between the second glass substrate and the upper side of the structure.
First Claim
Other Claims data not available
Family
| Country | kind | publication No. | Filing Date |
|---|---|---|---|
| KR | A | KR20160038094 | Sep 26, 2014 |
| CN | A | CN106716653 | Aug 07, 2015 |
| WO | A1 | WO2016047920 | Aug 07, 2015 |
| JP | B2 | JP6535965 | Aug 07, 2015 |
| TW | B | TWI560913 | Sep 24, 2015 |
