Storage unit and tempering system for a storage unit
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jun 30, 2020
Grant Date -
Aug 24, 2017
app pub date -
Mar 16, 2017
filing date -
Sep 19, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance

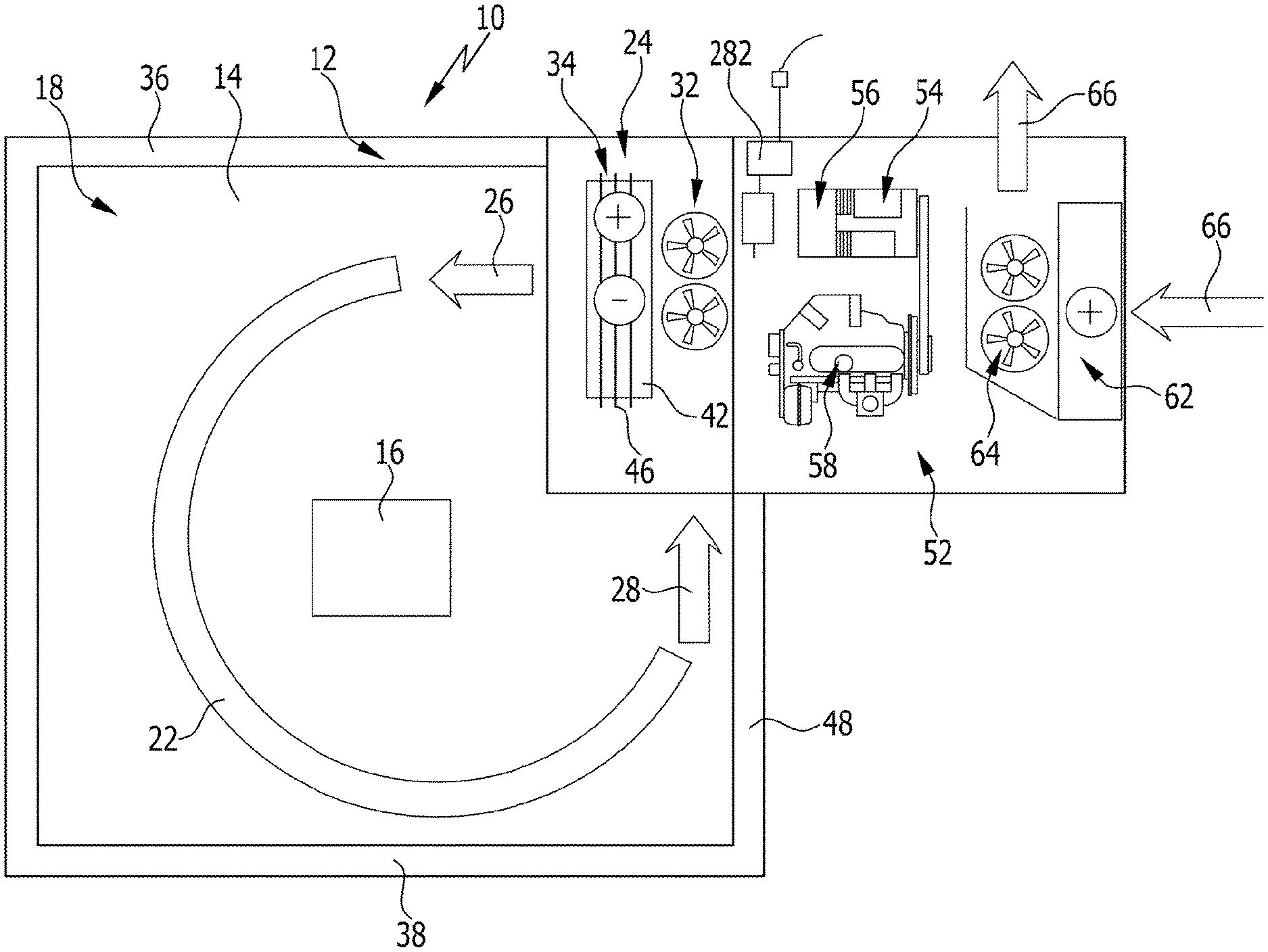

Abstract
For creating a storage unit comprising a container housing enclosing a storage volume for receiving freight and a gaseous medium surrounding said freight, said storage unit further comprising a tempering system provided with a tempering unit associated with said storage volume for maintaining a flow of said gaseous medium circulating in said storage volume and passing through said tempering unit in order to be maintained at a defined or set temperature, said tempering unit comprising an internal heat exchanger arranged in said flow of gaseous medium passing through said tempering unit, said tempering system being provided with a refrigerant circuit comprising said internal heat exchanger, an external heat exchanger exposed to ambient air surrounding said container housing which operates reliably and cost efficient under the aforementioned condition, as well as a compressor unit for compressing refrigerant, and said tempering system being further provided with an engine for driving said compressor unit in an independent power source mode and said tempering system being further provided with an electric motor/generator unit mechanically coupled to said compressor unit, and said compressor unit and said motor/generator unit being commonly driven by said engine in said independent power source mode.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- F25B Class
- 1295 Applications Filed
- 923 Patents Issued To-Date
- 71.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- F25B Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Dec 30, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Dec 30, 2031 |
