Window Vent Stop with Flexible Side Engagement Pieces
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Mar 28, 2017
filing date -
Mar 28, 2006
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

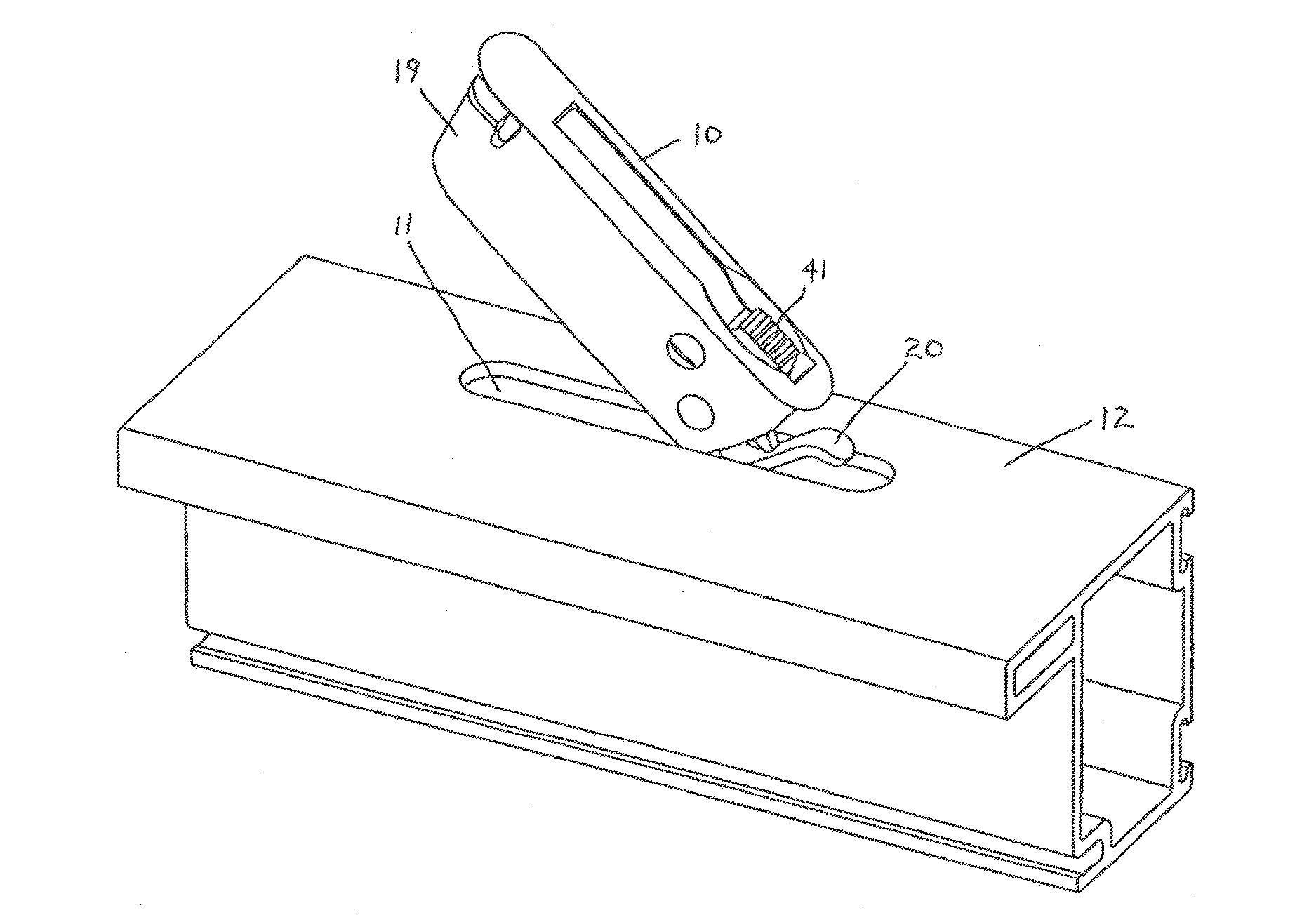

A window vent stop for use in a sliding sash window assembly or a sliding door assembly. The vent stop has a housing adapted to be disposed in a recess in the non-movable sash member. This housing includes a cavity with a bottom plate therein. The tumbler has at least one pivot for pivotally securing the tumbler to the housing for movement between an extended position, to prevent movement of the sliding member and a retracted position, to allow movement of the sliding member. Also within the housing is a spring for biasing the tumbler. The housing has one or more flexible members extending from the end walls of the housing that secure the housing to an opening in a window sash when a portion of the window sash ispositioned between the underside of a lip on said housing and the flexible member.
First Claim
Other Claims data not available
