PE-ALD METHODS WITH REDUCED QUARTZ-BASED CONTAMINATION
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Jan 27, 2017
filing date -
Feb 22, 2016
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

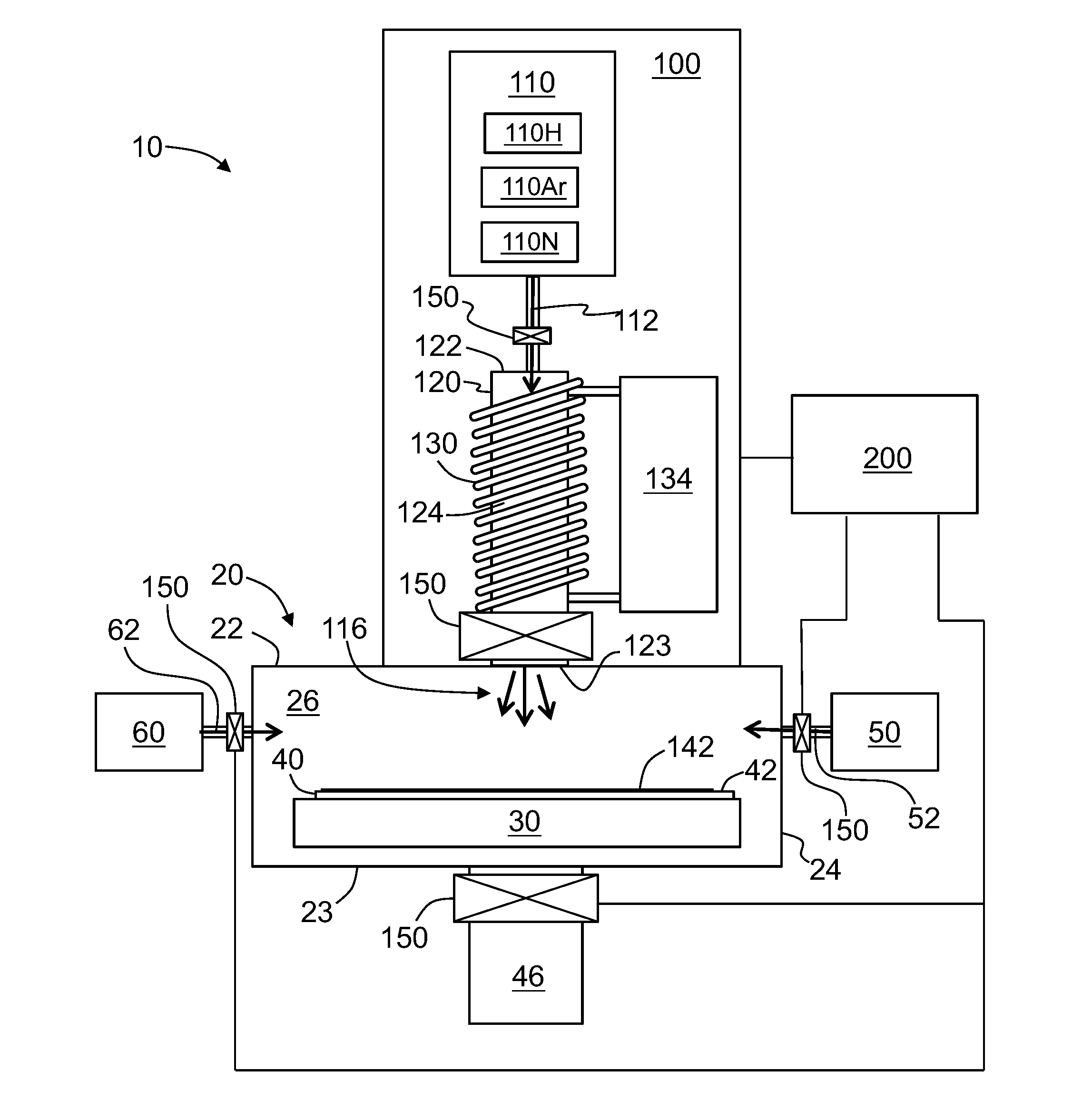

Methods of performing PE-ALD on a substrate with reduced quartz-based contamination are disclosed. The methods include inductively forming in a quartz plasma tube a hydrogen-based plasma from a feed gas that consists essentially of either hydrogen and nitrogen or hydrogen, argon and nitrogen. The nitrogen constitutes 2 vol % or less of the feed gas. The hydrogen-based plasma includes one or more reactive species. The one or more reactive species in the hydrogen-based plasma are directed to the substrate to cause the one or more reactive species to react with a initial film on the substrate. The trace amounts of nitrogen serve to reduce the amount of quartz-based contamination in the initial film as compared to using no nitrogen in the feed gas.
First Claim
Other Claims data not available
