Angle sensing using differential magnetic measurement and a back bias magnet
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Jan 16, 2018
Issued Date -
N/A
app pub date -
Feb 12, 2016
filing date -
Feb 12, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
|
US Family Size
|
Non-US Coverage
|
|
Patent Longevity
|
Forward Citations
|

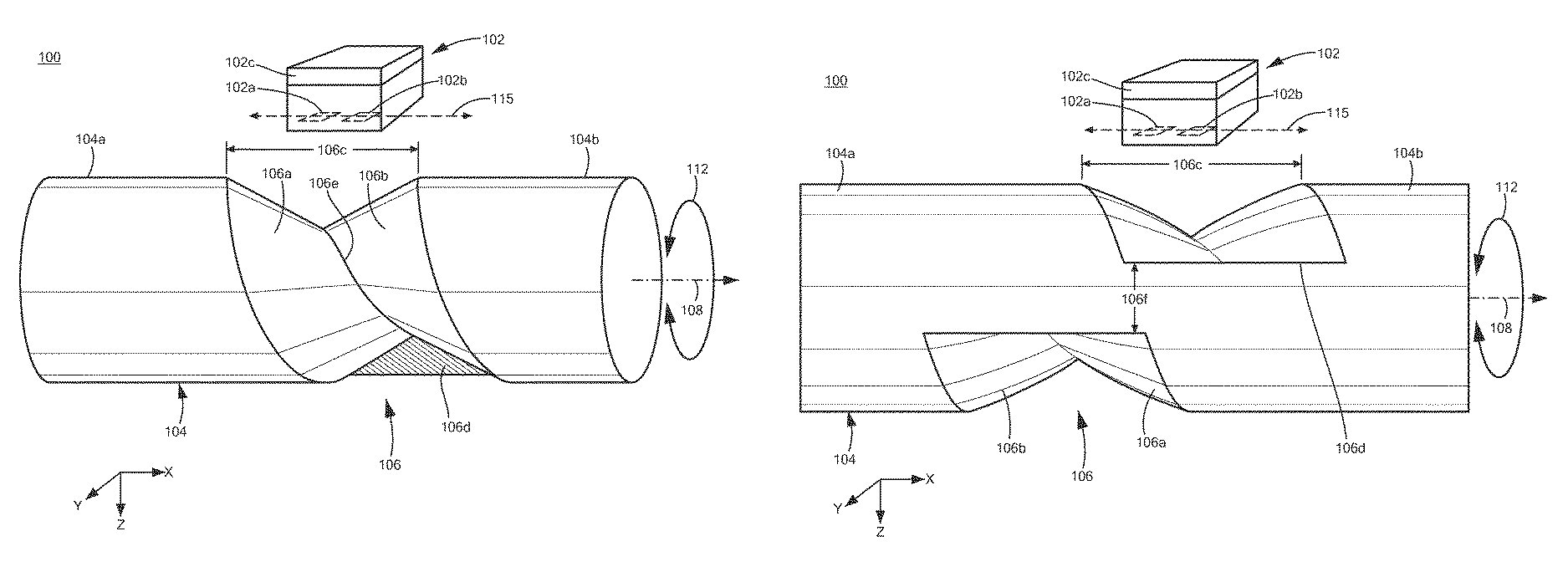

Abstract
A magnetic field sensor includes a back bias magnet to generate a DC magnetic field. First and second magnetic field sensing elements of the magnetic field sensor are disposed proximate to at least one ferromagnetic surface of a ferromagnetic target object. The first and second magnetic field sensing elements generate first and second electronic signals, respectively, in response to first and second sensed magnetic fields corresponding to the DC magnetic field but influenced by the at least one ferromagnetic surface. The magnetic field sensor generates a difference signal that is a difference of amplitudes of the first and second electronic signals. The difference signal is indicative of a rotation measurement of an absolute relative rotation of the ferromagnetic target object and the magnetic field sensor about a rotation axis.
First Claim
Other Claims data not available
Family
- No Family data available.
International Classification(s)
Cited Art Landscape
Patent Citation Ranking
- 8 Citation Count
- G01B Class
- 21.98 % this patent is cited more than
- 7 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jul 16, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jul 16, 2029 |
