MAGNETIC TOOL STAND
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 17, 2017
app pub date -
Jul 9, 2015
filing date -
Jul 9, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

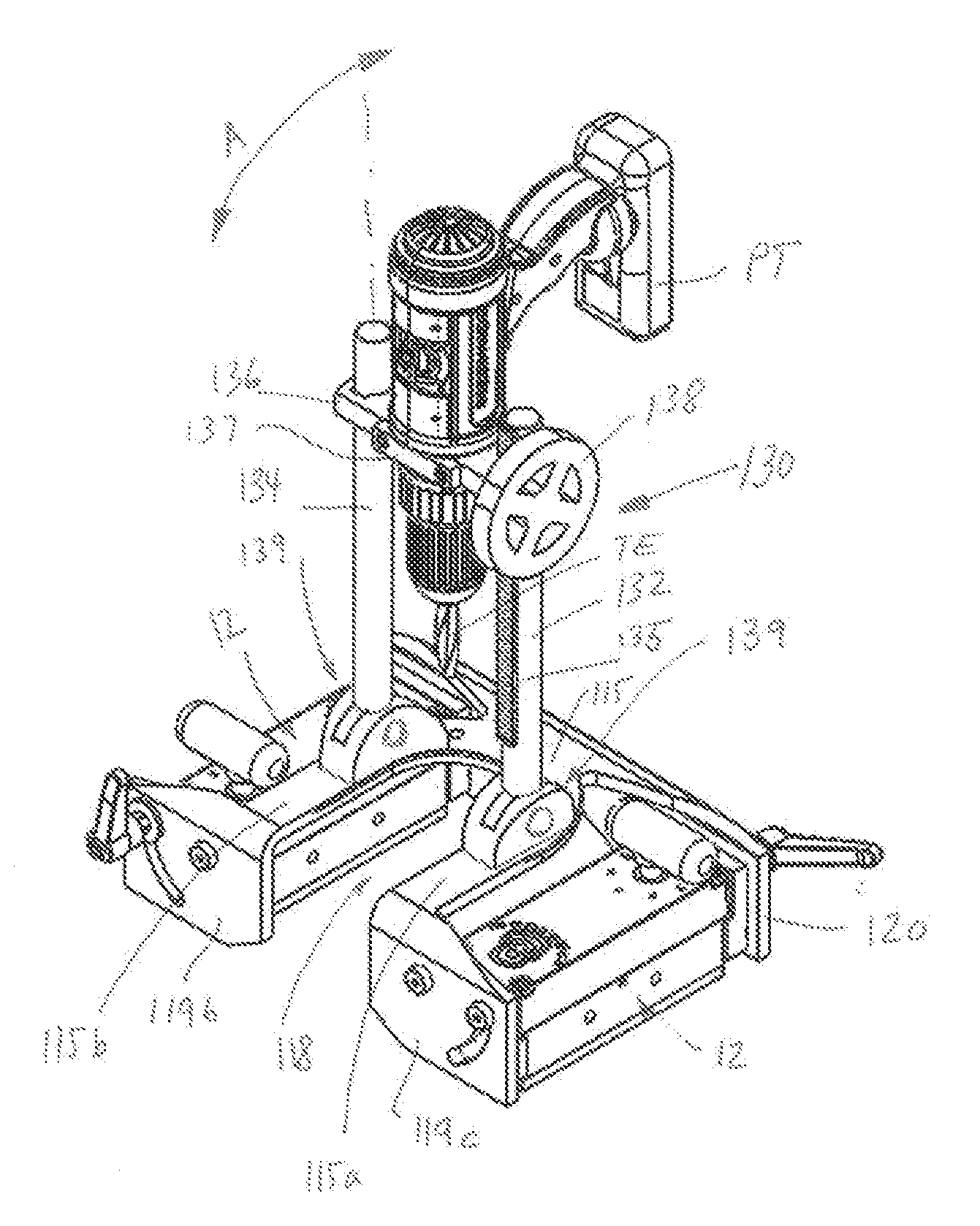

A magnetic base for supporting a tool having a work piece engagement component relative to a ferromagnetic body, comprising: at least two magnet units having a working face, each unit adapted to be magnetically attached to the ferromagnetic body; and a support structure coupled to the at least two magnet units and including a mounting structure adapted to secure the tool to the support structure, the support structure having a window in or a cut-out extending into an about centric location of the support structure such that the work piece engagement component of the tool may extend from a first side of the support structure to engage the ferromagnetic body located proximate a second side of the support structure, the second side being opposite the first side, the at least two magnet units being positionable so that they can fit onto a flat surface or a curved surface.
