Obstacle detection system and transportation vehicle
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
Aug 10, 2017
app pub date -
Mar 3, 2015
filing date -
Sep 4, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

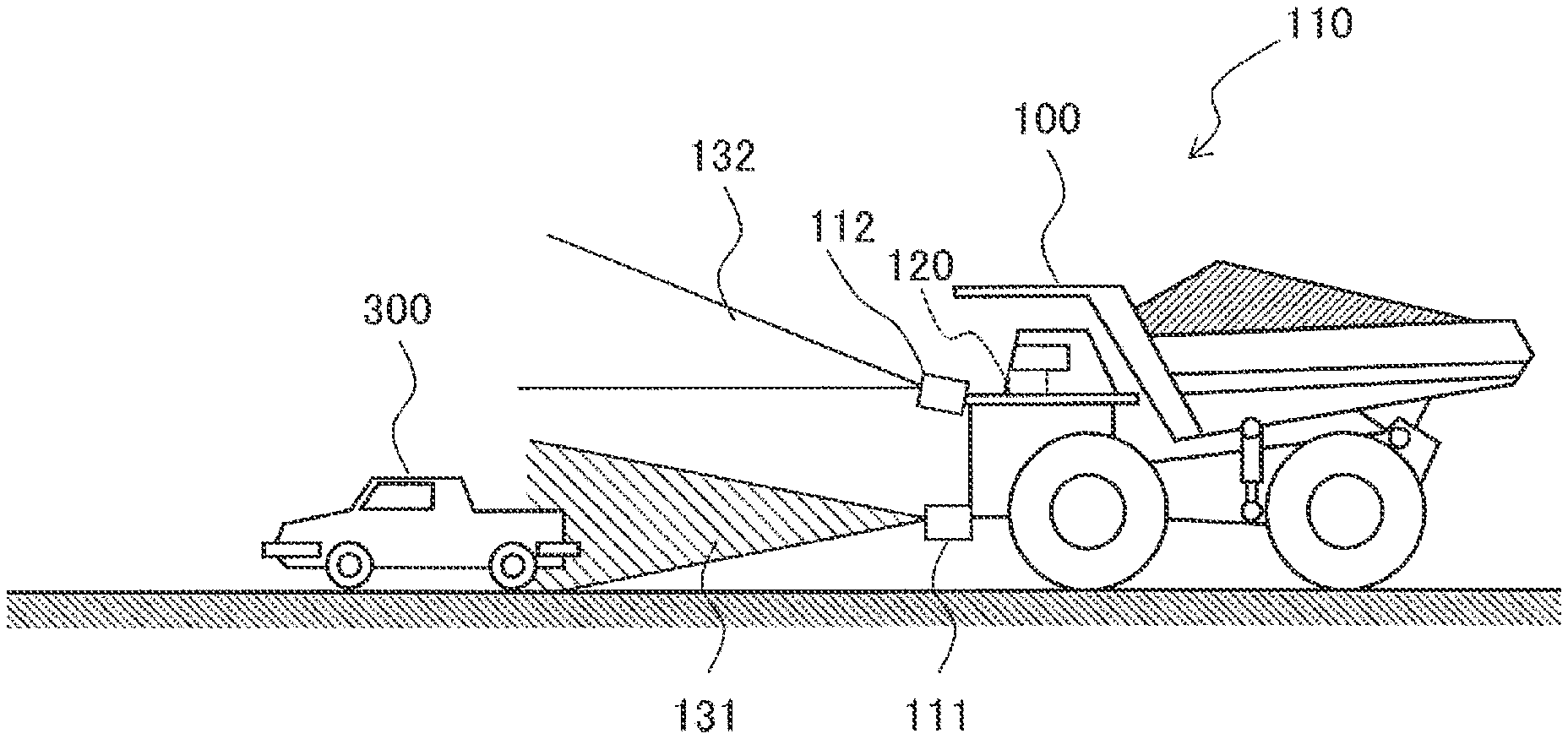

When large vehicles and small vehicles travel together in a mine, they are distinguishably detected. On a haulage vehicle for a mine, a first obstacle detection device and a second obstacle detection device are disposed. The obstacle detection devices are disposed so that they have detection directions oriented in a same direction in horizontal planes, respectively. The first obstacle detection device 111 is disposed at a height where it can detect each small vehicle, while the second obstacle detection device 112 is disposed at a height where it can detect each large vehicle without detection of any small vehicle. On the basis of detection results of the first obstacle detection device 111 and second obstacle detection device 112, a detection processing device 120 determines whether an object is a small vehicle or a large vehicle.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- G08G Class
- 1680 Applications Filed
- 1399 Patents Issued To-Date
- 83.28 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 2 Citation Count
- G08G Class
- 41.30 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Oct 7, 2027 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Oct 7, 2031 |
