PRESSURE RELIEF VALVE FOR PRESSURIZED FURNACE
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
N/A
Issued Date -
N/A
app pub date -
Sep 24, 2015
filing date -
Sep 30, 2014
priority date (Note) -
Published
status (Latency Note)
Importance
Abstract

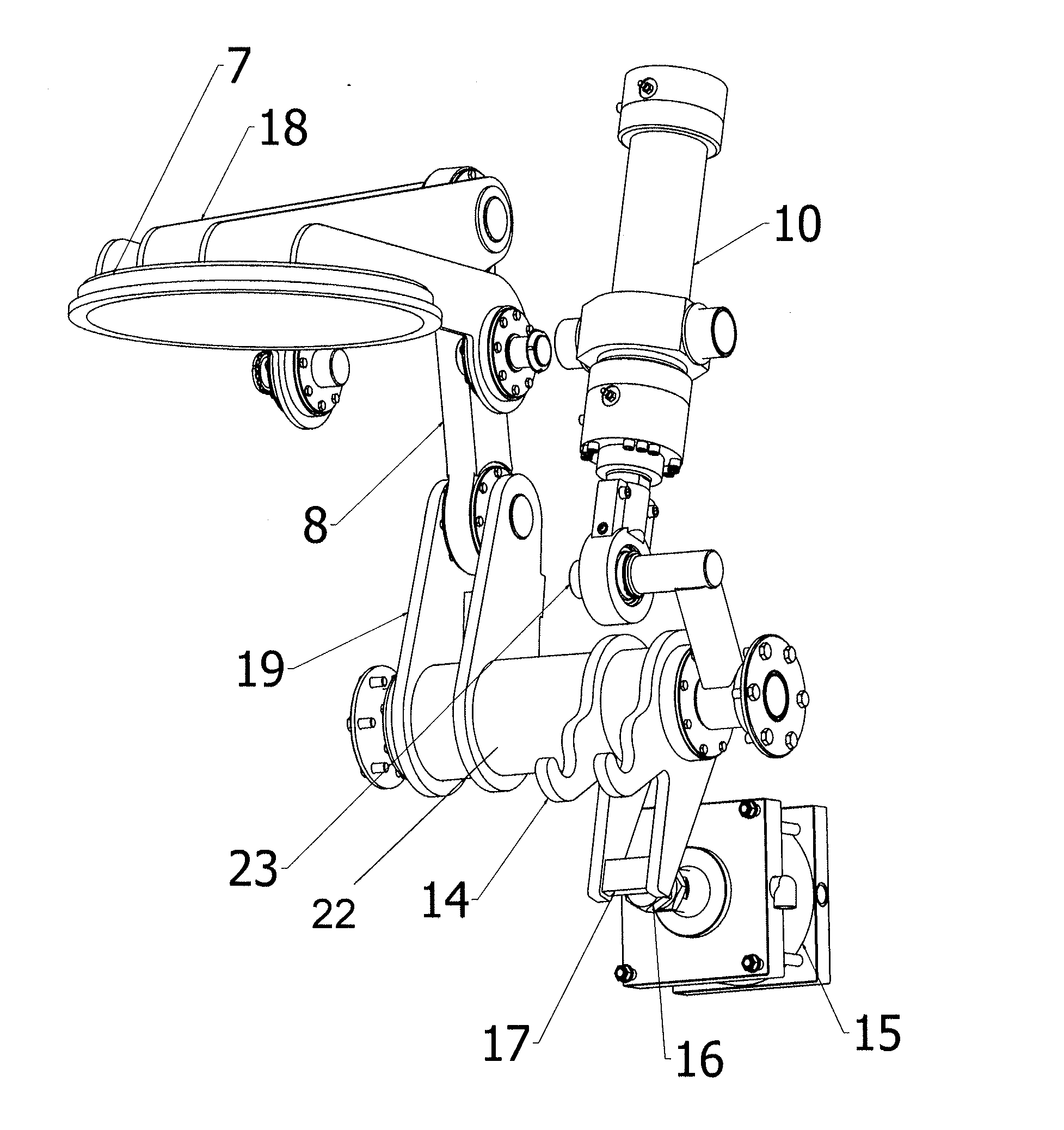

A pressure relief valve system has a fluid outlet (1) from a pressure vessel; a flexible expansion piece (4) at an end of the fluid outlet remote from the pressure vessel; a primary pressure relief valve has a valve seat and a valve lid (7). The valve seat has a flange (5) mounted on the expansion piece and the valve lid forms a valve seal with the flange. A fluid off-take (13) is connected to the fluid outlet (1) and a secondary pressure relief valve (11) receives fluid from the fluid off-take. The secondary pressure relief valve has an outlet (12) coupled to a valve opening actuator (15), whereby passage of fluid through the secondary pressure relief valve (11) causes the opening actuator to operate to open the valve lid (7).
First Claim
Other Claims data not available
