Automated crayon melting and molding device, method, and system
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
May 12, 2020
Grant Date -
Aug 10, 2017
app pub date -
Feb 3, 2017
filing date -
Feb 5, 2016
priority date (Note) -
In Force
status (Latency Note)
![]() |
A preliminary load of PAIR data current through [] has been loaded. Any more recent PAIR data will be loaded within twenty-four hours. |
PAIR data current through []
A preliminary load of cached data will be loaded soon.
Any more recent PAIR data will be loaded within twenty-four hours.
![]() |
Next PAIR Update Scheduled on [ ] |

Importance

US Family Size
|
Non-US Coverage
|
Abstract

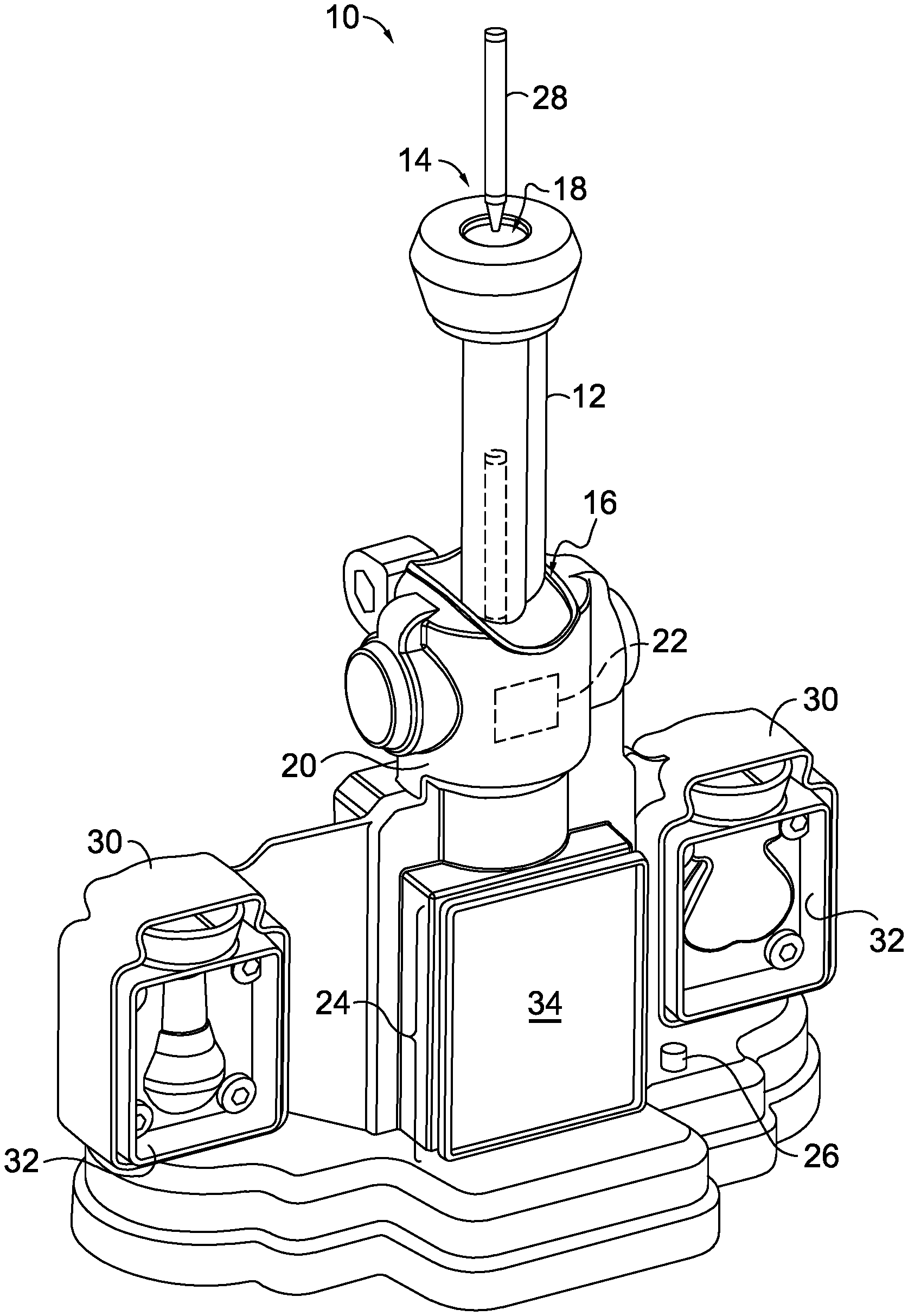

Embodiments of the invention are directed to an automated crayon-molding device comprising a crayon-receiving member, an automated heating element, a crayon-melting chamber that is heated to a melting temperature by the automated heating element, and at least one mold. The crayon-receiving member receives the crayon at one end and has a closure mechanism at another held, preventing the crayon from entering in the crayon-melting chamber until it reaches a melting temperature. Once the inside of the crayon-melting chamber, the crayon melts and drips into a mold configured to receive melted wax. Embodiments of the invention also include a method for assembling an automated crayon-molding device and a system for molding crayons that includes a crayon-receiving member, an automated heating element, a crayon-melting chamber, a drawer positioned underneath the crayon-melting chamber, and at least one mold.
