Bonded article and method for manufacturing bonded article
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Dec 26, 2017
Issued Date -
N/A
app pub date -
Dec 8, 2015
filing date -
Dec 9, 2014
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

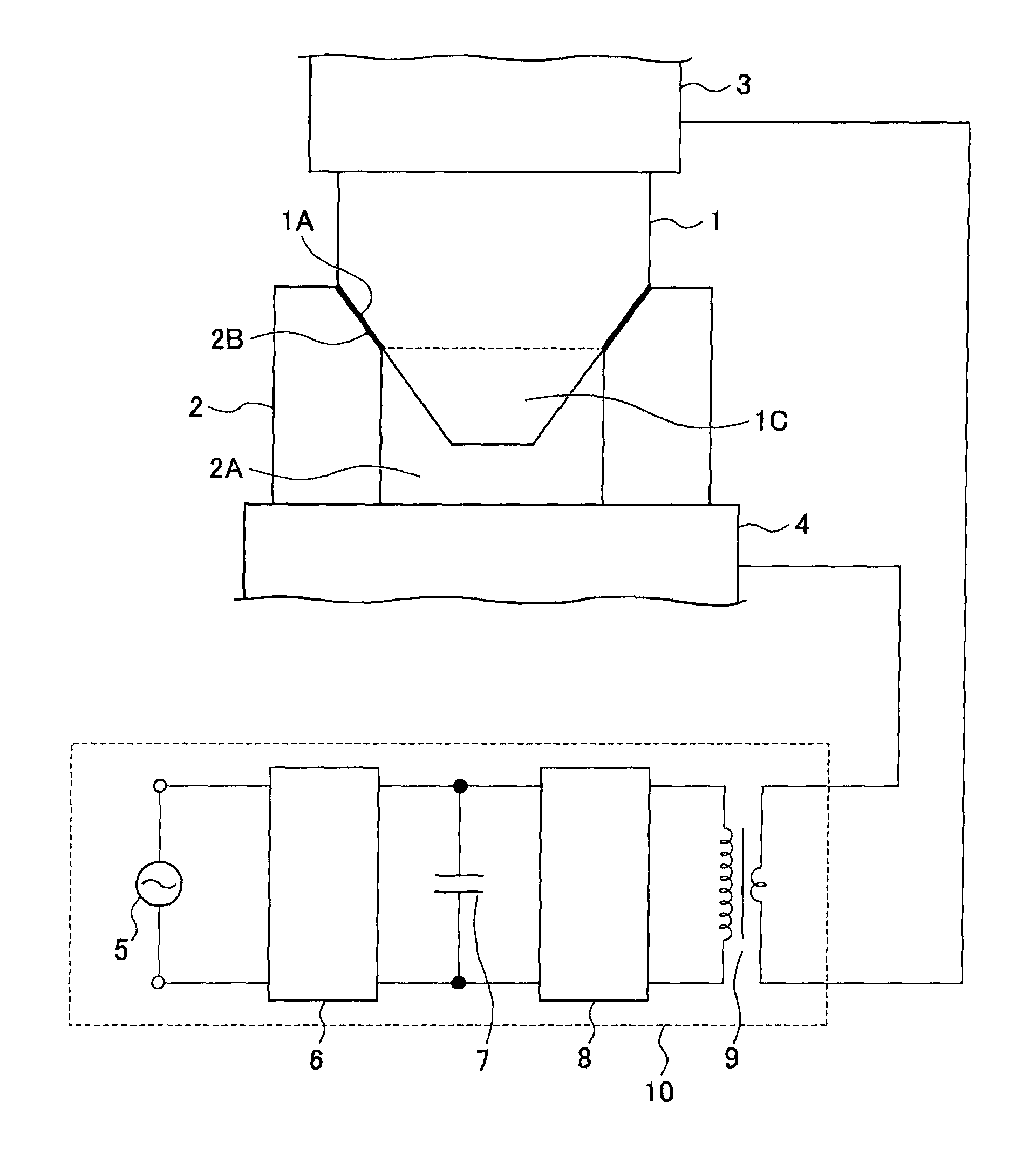

A method for manufacturing a bonded article having long bonding length and high strength. A first bonding target member and a second bonding target member having a hole portion for receiving the first member are provided. Pressing force is applied between the two members with the first member received in the hole portion, and a current is applied to a bonding target portion between the two members with the pressing force applied. The two members are of materials with different melting points. One of the two members, having lower melting point, has a heat capacity increasing portion in the vicinity of the target portion. The one of the members has a taper face at the target portion, and the heat capacity increasing portion has a face extending from the taper face. The force applying step is performed with the other member positioned not to contact the heat capacity increasing portion.
First Claim
Other Claims data not available
Family
International Classification(s)
- 2015 Application Filing Year
- B23K Class
- 2354 Applications Filed
- 1765 Patents Issued To-Date
- 74.98 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 1 Citation Count
- B23K Class
- 28.92 % this patent is cited more than
- 8 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | Jun 26, 2025 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | Jun 26, 2029 |
