Device for providing a breathing gas flow enriched with anesthetic
Number of patents in Portfolio can not be more than 2000
United States of America Patent
Stats
-
Nov 3, 2020
Grant Date -
Aug 10, 2017
app pub date -
Feb 7, 2017
filing date -
Feb 8, 2016
priority date (Note) -
In Force
status (Latency Note)
Importance
Abstract

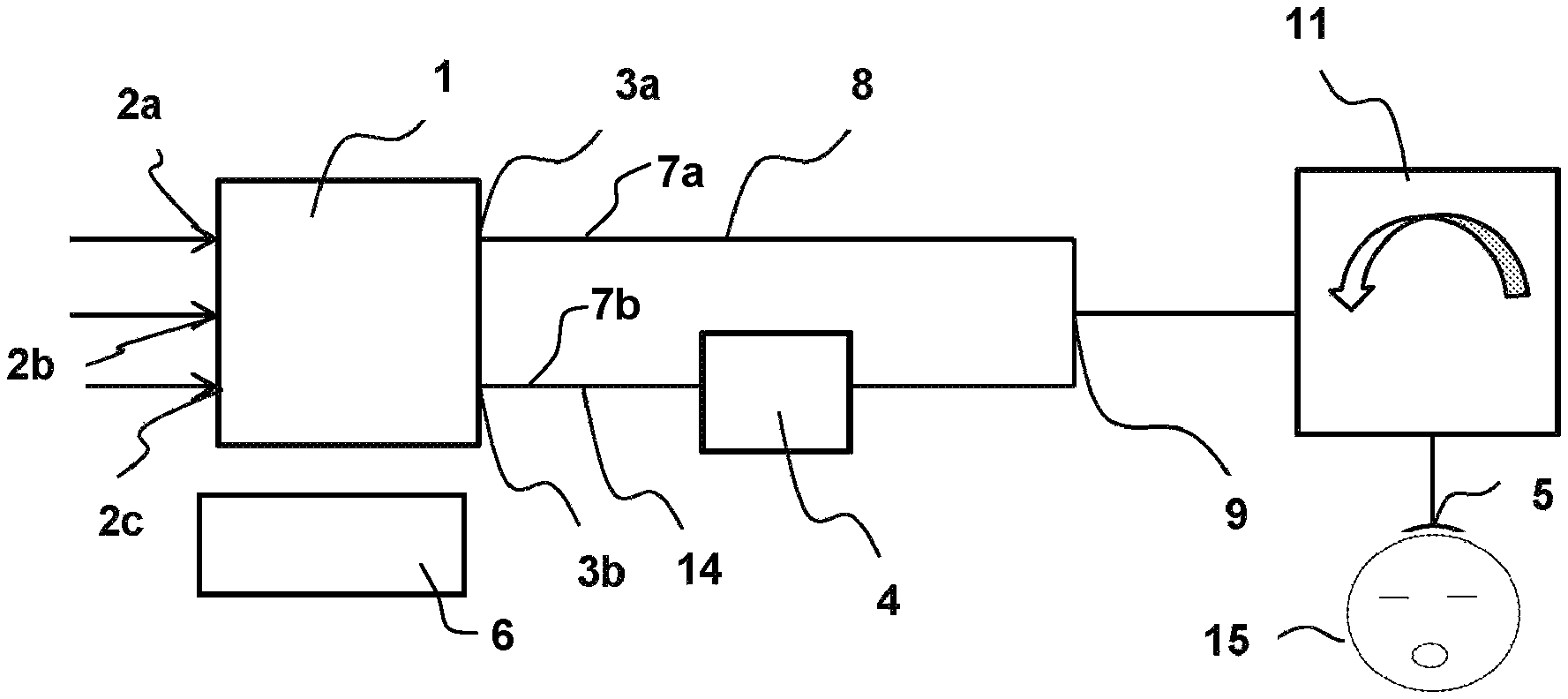

A method and device, for enriching a gas flow with an anesthetic, include a gas mixer (1), with gas inlets (2a, 2b) and one or more gas outlets (3a, 3b), and an anesthetic dispenser (4) connected to the one or more gas outlets. The anesthetic dispenser at least partially enriches the gas flow to provide a breathing gas flow enriched with anesthetic at a patient connector (5). A control valve (7a) is arranged fluidically in series with the anesthetic dispenser (4). The gas outlet is connected to the patient connector (5) via a gas channel (8), arranged fluidically parallel to the anesthetic dispenser (4) and in which at least another control valve (7b) is arranged. A control unit (6) actuates at least one control valve as a function of a desired value for an anesthetic concentration in the breathing gas flow to change anesthetic concentration at the patient connector (5).
First Claim
Other Claims data not available
Family
International Classification(s)
- 2017 Application Filing Year
- A61M Class
- 7056 Applications Filed
- 4935 Patents Issued To-Date
- 69.95 % Issued To-Date
Cited Art Landscape
Patent Citation Ranking
- 0 Citation Count
- A61M Class
- 0 % this patent is cited more than
- 5 Age
Maintenance Fees
| Fee | Large entity fee | small entity fee | micro entity fee | due date |
|---|---|---|---|---|
| 7.5 Year Payment | $3600.00 | $1800.00 | $900.00 | May 3, 2028 |
| 11.5 Year Payment | $7400.00 | $3700.00 | $1850.00 | May 3, 2032 |
